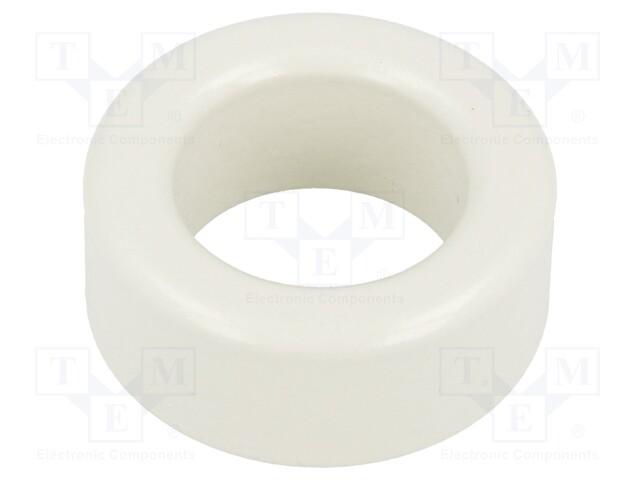

Ferrite: toroidal; L: 1.4mm; Øint: 22.75mm; Øout: 36.25mm; 170nH

Kordarv: 1.0
Minimum quantity: 1.0
Tootekood: TX36/23/15-4C65
Tootja: FERROXCUBE
Tootja tootekood: TX36/23/15-4C65
  • Height
  • Internal diameter
  • Outside diameter
  • Type of ferrite
  • Ferrite application
  • Ferrite application
  • Ferrite application
  • Core material
  • Inductance factor Al
  • Ferrite features
  • Effective core volume (Ve)
  • Effective core cross-section (Ae)

0,00 € 0,00 € (KM-TA) 0.0 EUR

0,00 €

Seda kombinatsiooni ei eksisteeri.

Lisa ostukorvi

Product downloads

Spetsifikatsioon tootele Ferrite: toroidal; L: 1.4mm; Øint: 22.75mm; Øout: 36.25mm; 170nH

Height 1.4mm
Internal diameter 22.75mm
Outside diameter 36.25mm
Type of ferrite toroidal
Ferrite application impulse transformers, RFI filters, wideband transformers
Core material 4C65
Inductance factor Al 170nH
Ferrite features rounded edges eliminate risk of wire damage
Effective core volume (Ve) 8740mm<sup>3</sup>
Effective core cross-section (Ae) 97.5mm<sup>2</sup>
