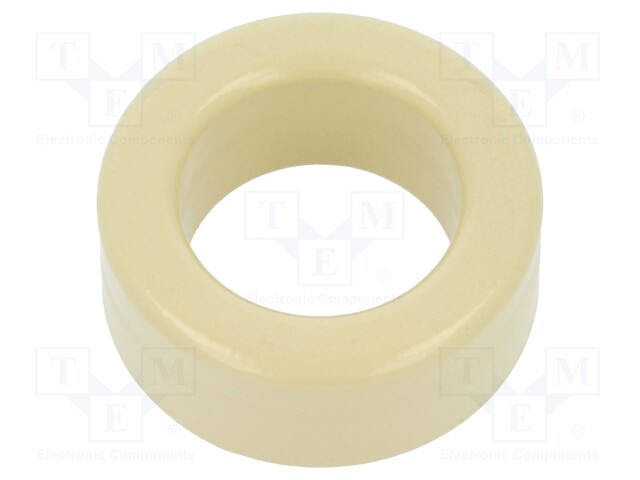

Ferrite: toroidal; L: 1.4mm; Øint: 22.7mm; Øout: 36.2mm; 7390nH
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
TX36/23/15-3E25
Tootja: FERROXCUBE
Tootja tootekood: TX36/23/15-3E25
Spetsifikatsioon tootele Ferrite: toroidal; L: 1.4mm; Øint: 22.7mm; Øout: 36.2mm; 7390nH
Height | 14mm |
Internal diameter | 22.7mm |
Outside diameter | 36.2mm |
Type of ferrite | toroidal |
Ferrite application | impulse transformers, RFI filters, wideband transformers |
Core material | 3E25 |
Inductance factor Al | 7.39µH |
Ferrite features | rounded edges eliminate risk of wire damage |
Effective core volume (Ve) | 8740mm<sup>3</sup> |
Effective core cross-section (Ae) | 97.5mm<sup>2</sup> |
