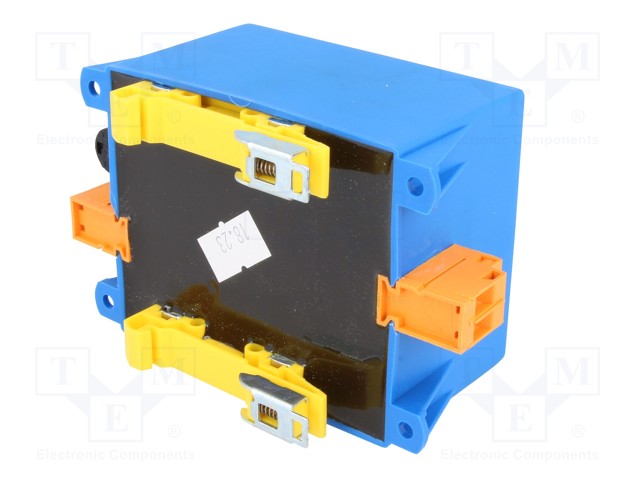

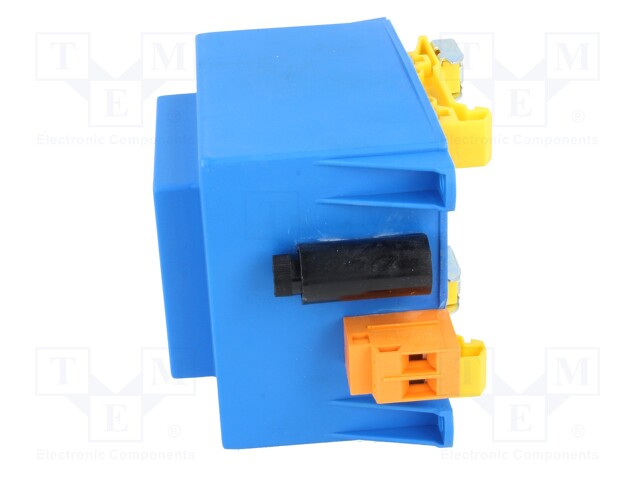

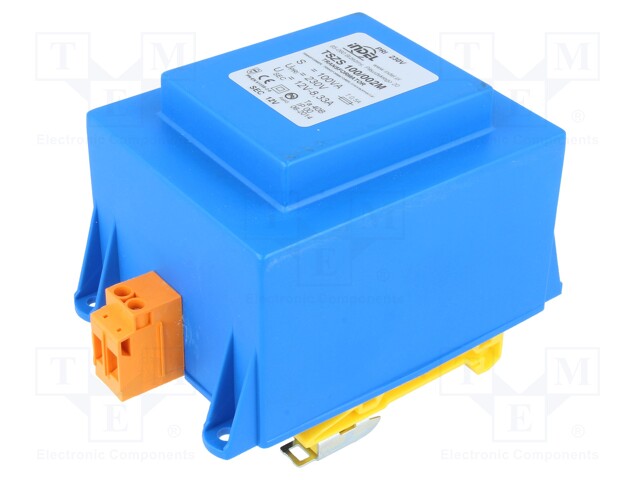

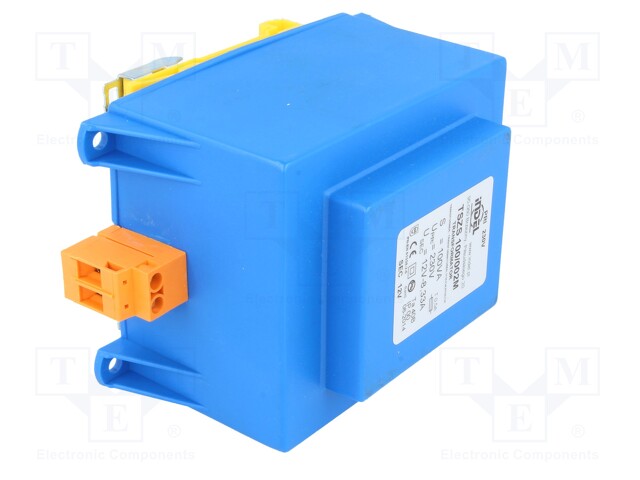

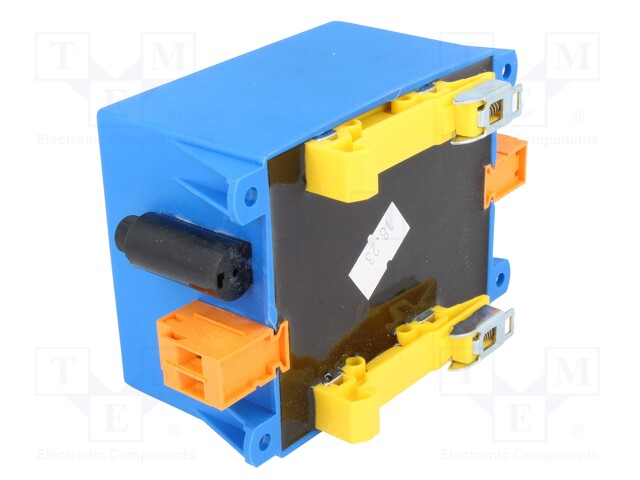

Transformer: encapsulated; 100VA; 230VAC; 12V; 8.33A; Mounting: DIN

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: TSZS 100/002M
    Tootja: INDEL
    Tootja tootekood: TSZS 100/002M
    • Mounting
    • IP rating
    • Leads
    • Flammability rating
    • D1 dimension
    • D dimension
    • Insulation class
    • B dimension
    • A dimension
    • Conform to the norm
    • C dimension
    • E dimension
    • Type of transformer
    • B1 dimension
    • A1 dimension
    • C1 dimension
    • Primary voltage
    • Secondary voltage 1
    • Thermal class
    • Secondary winding current 1
    • Power VA

    78,41 € 78,41 € (KM-TA) 78.41 EUR

    78,41 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Transformer: encapsulated; 100VA; 230VAC; 12V; 8.33A; Mounting: DIN

    Mounting for DIN rail mounting
    IP rating IP00
    Leads terminal block
    Flammability rating UL94V-0
    D1 dimension 60mm
    D dimension 97.5mm
    Insulation class II
    B dimension 75.8mm
    A dimension 89.8mm
    Conform to the norm PN-EN 61558
    C dimension 63mm
    E dimension 107.5mm
    Type of transformer encapsulated
    B1 dimension 52mm
    A1 dimension 61.4mm
    C1 dimension 51.4mm
    Primary voltage 230V AC
    Secondary voltage 1 12V
    Thermal class Ta40B
    Secondary winding current 1 8.33A
    Power VA 100VA
