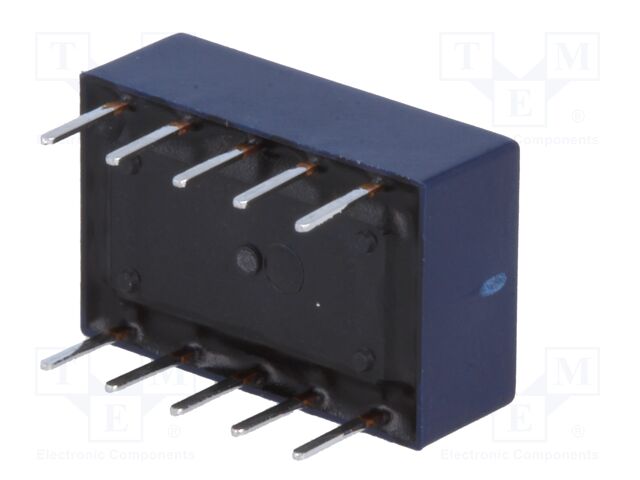

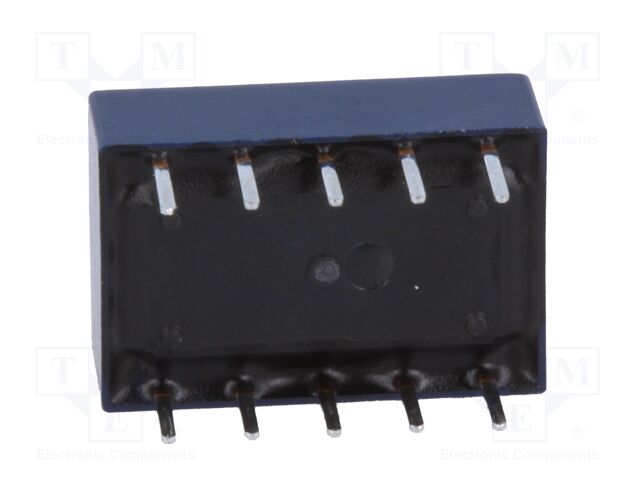

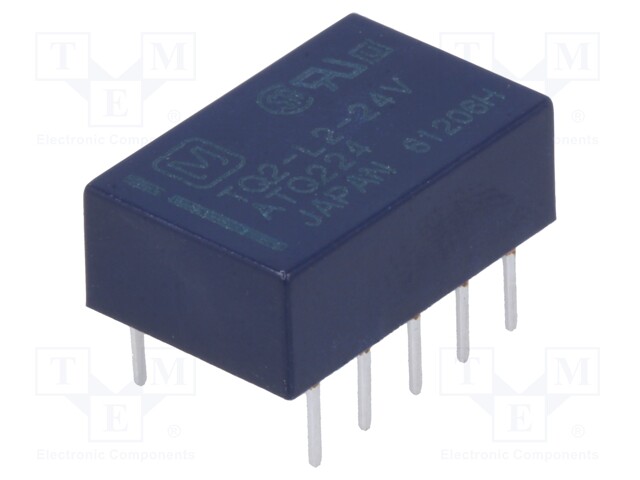

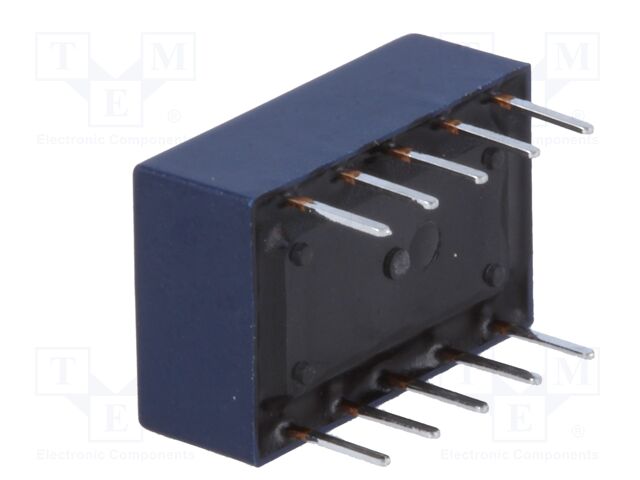

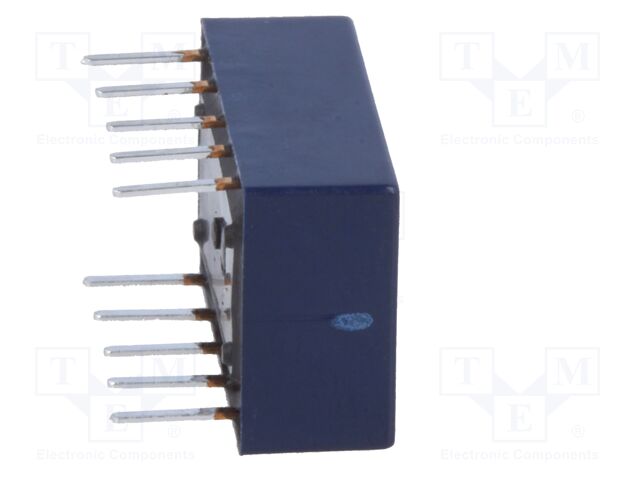

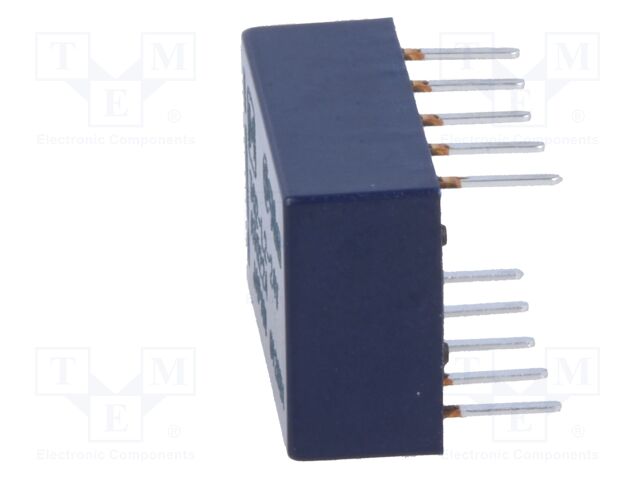

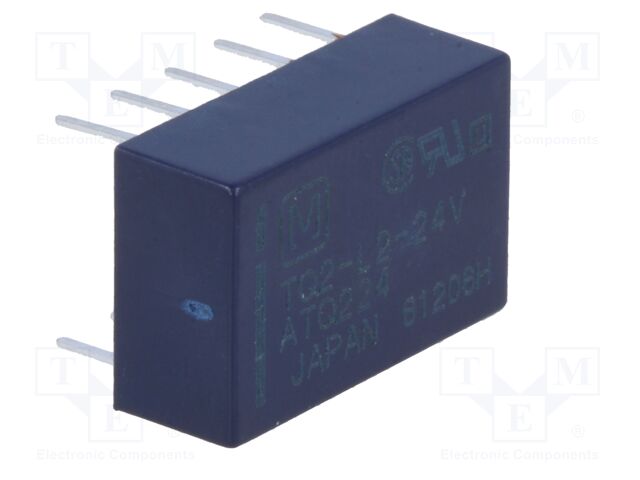

Relay: electromagnetic; DPDT; Ucoil: 24VDC; 0.5A/125VAC; 1A/30VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: TQ2-L2-24V
    Tootja: PANASONIC
    Tootja tootekood: TQ2-L2-24V
    • Mounting
    • Operating temperature
    • Contact plating
    • Contact material
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Relay variant
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Relay series
    • Coil current

    5,33 € 5,33 € (KM-TA) 5.33 EUR

    5,33 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; DPDT; Ucoil: 24VDC; 0.5A/125VAC; 1A/30VDC

    Mounting PCB
    Operating temperature -40...70°C
    Contact plating gold-plated
    Contact material silver alloy
    Body dimensions 14x9x5mm
    Mechanical durability 100000000cycles
    Switched voltage ≤ 110V DC, ≤ 125V AC
    Coil resistance 2.88kΩ
    Rated coil voltage 24V DC
    Contacts configuration DPDT
    DC contacts rating @R 1A / 30V DC
    AC contacts rating @R 500mA / 125V AC
    Contact current max. 2A
    Relay variant bistable, signal, subminiature
    Type of relay electromagnetic
    Coil power consumption 200mW
    Relay series TQ
    Coil current 8.3mA
