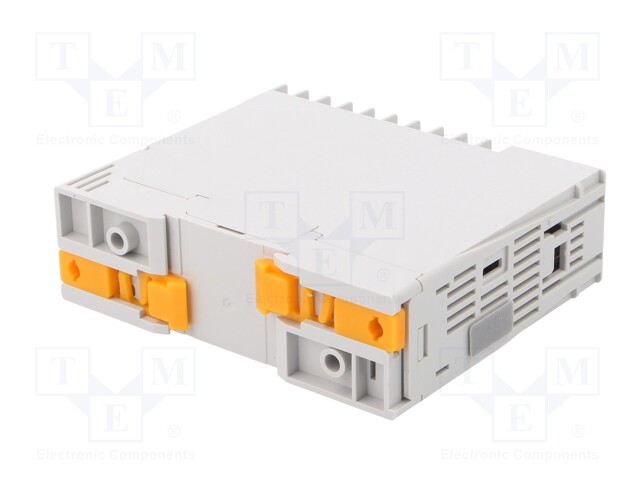

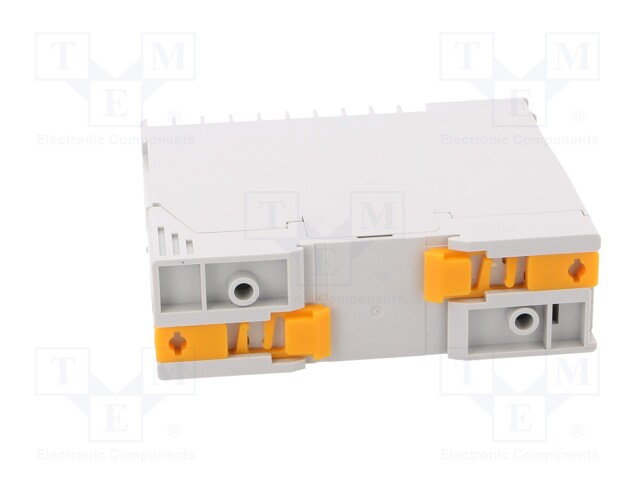

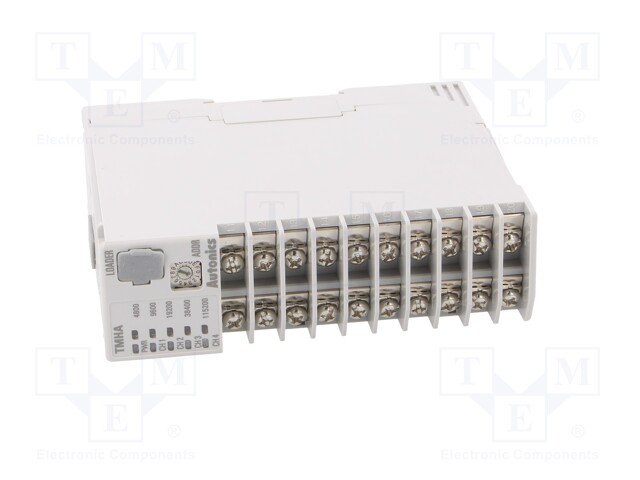

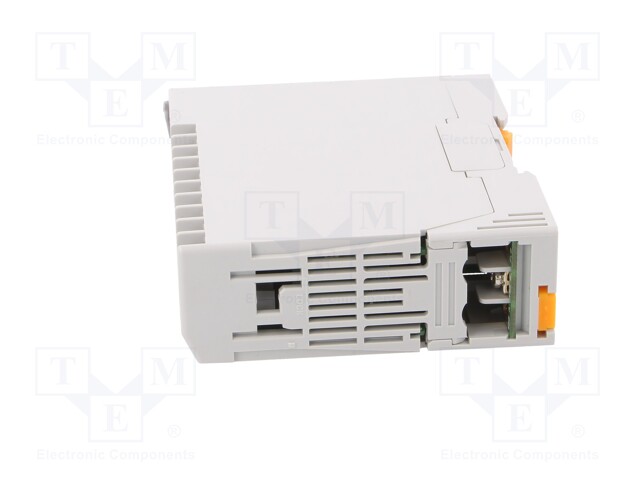

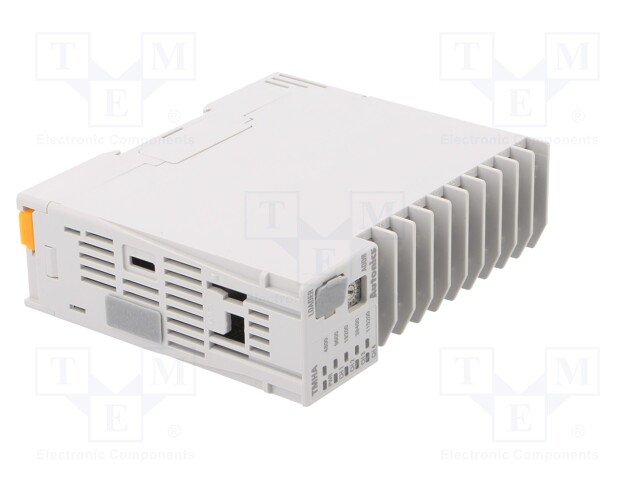

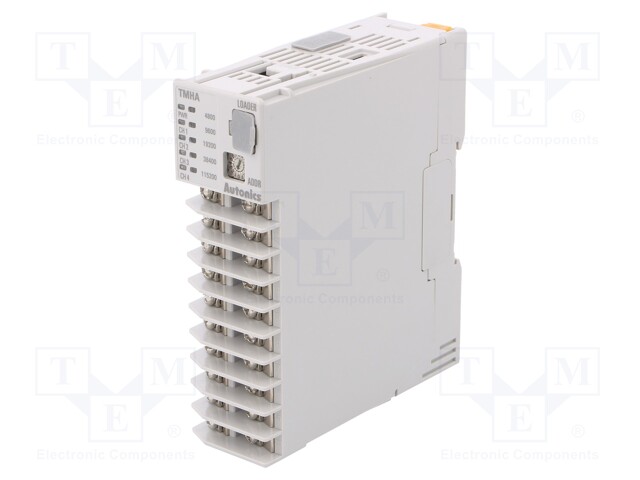

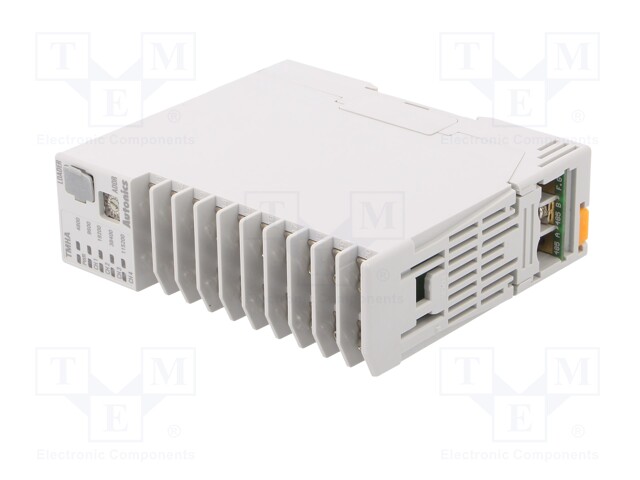

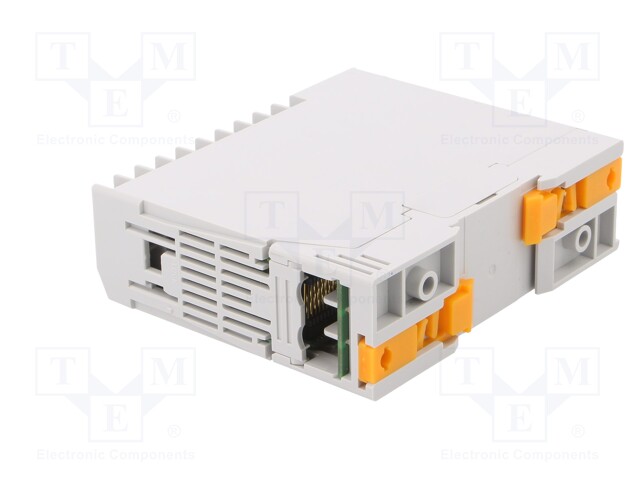

Module: four channel regulator; temperature; relay; OUT 2: SSR
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
TMHA-42AE
Tootja: AUTONICS
Tootja tootekood: TMHA-42AE
Product downloads
Spetsifikatsioon tootele Module: four channel regulator; temperature; relay; OUT 2: SSR
| Mounting | socket |
| Supply voltage | 24V DC |
| Operating temperature | -10...50°C |
| IP rating | IP20 |
| Type of module | four channel regulator |
| Series | TMH |
| Kind of input 1 | 0...100mV DC, 0...10V DC, 0...20mA, 0...5V DC, 4...20mA |
| Kind of temperature sensor | Cu100, Cu50, JPt100, Ni120, Pt100, Pt50, thermocouple B, thermocouple C, thermocouple E, thermocouple G, thermocouple J, thermocouple K, thermocouple L, thermocouple N, thermocouple R, thermocouple S, thermocouple T, thermocouple U |
| Controlled parameter | temperature |
| Kind of output 1 | relay |
| The programming method | HMI, MODBUS, PC, RS485 |
| Kind of output 2 | SSR |
| Kind of output 3 | analogue |
| Input 1 properties | analogue voltage, current analog, RTD, thermocouple |
| Regulation for output 1 | ON-OFF, P, PD, PI, PID |
