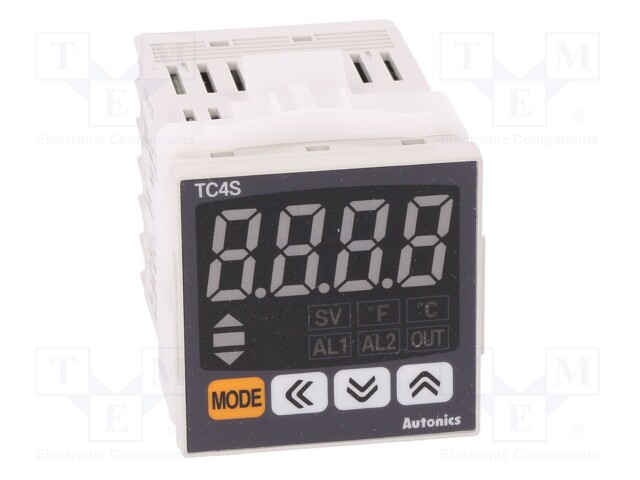

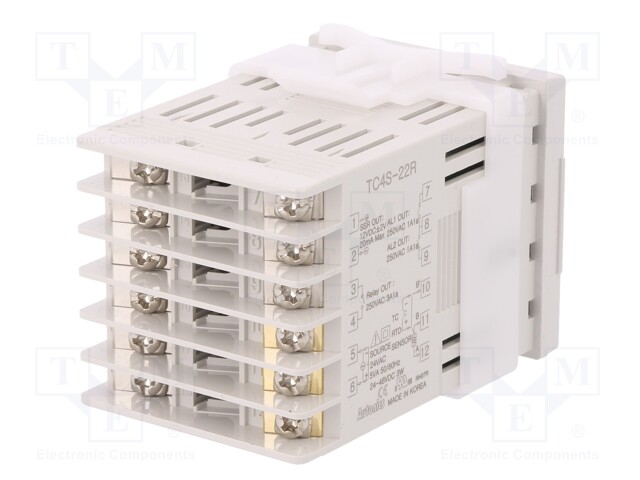

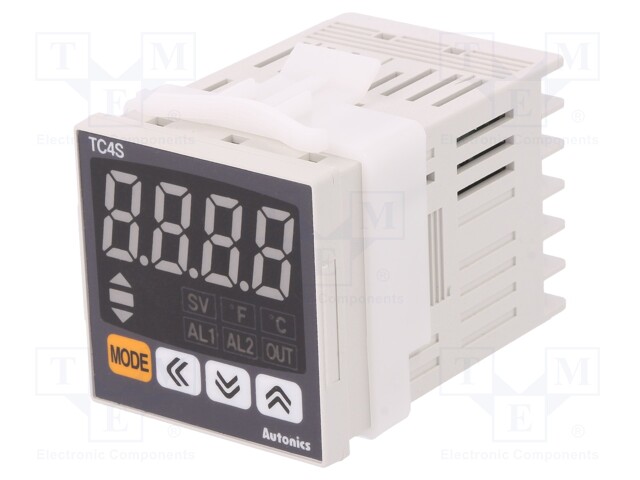

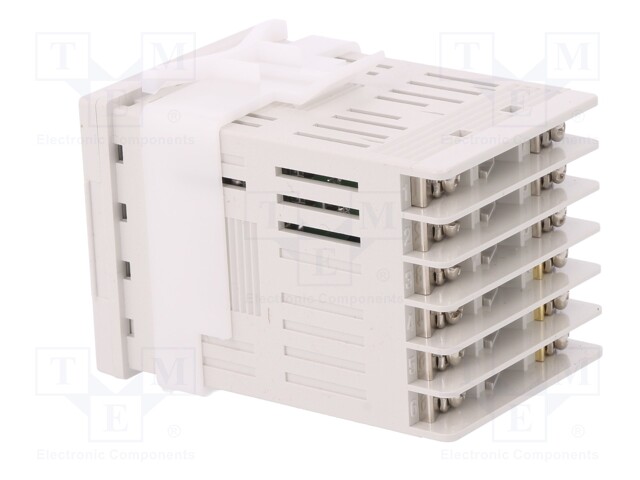

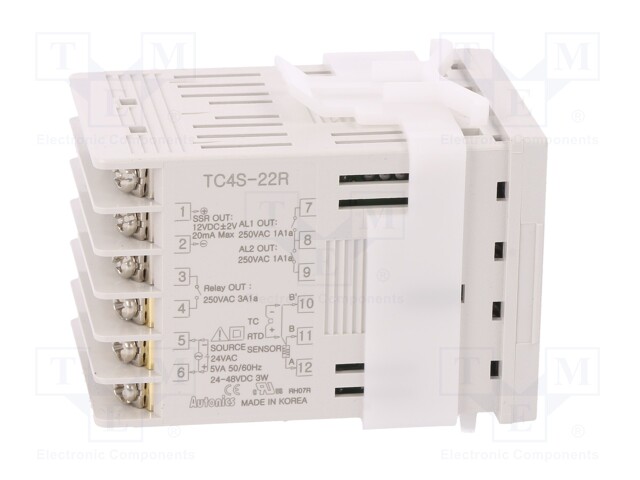

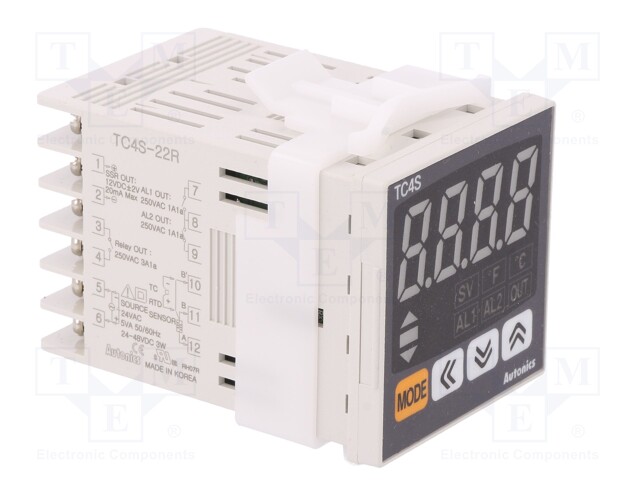

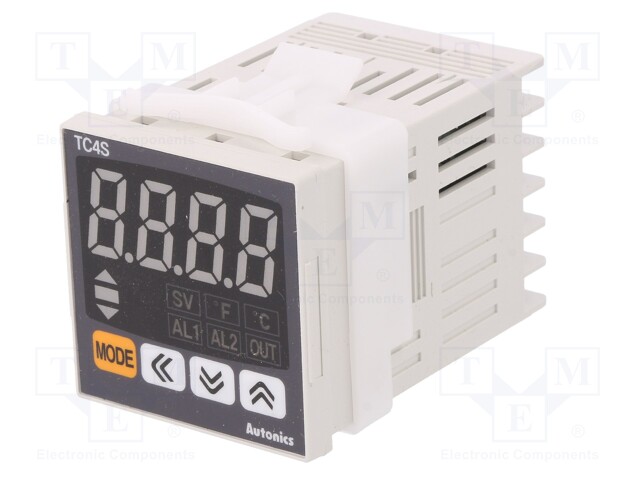

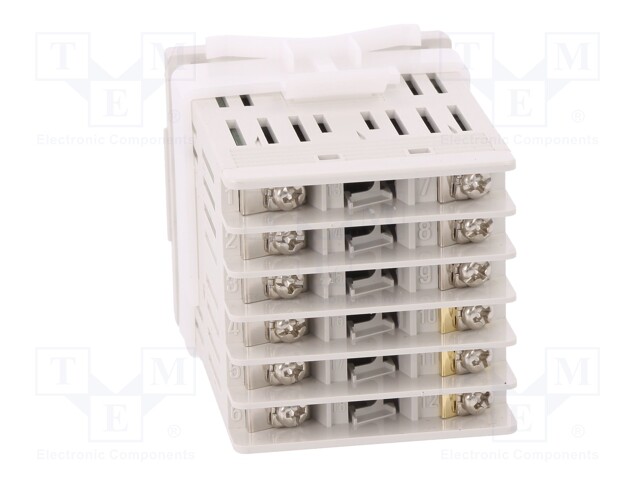

Module: regulator; temperature; SPST-NO; OUT 2: SSR; SPST-NO; 24VAC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: TC4S-22R
    Tootja: AUTONICS
    Tootja tootekood: TC4S-22R
    • Mounting
    • Supply voltage
    • Supply voltage
    • Operating temperature
    • Type of module
    • Mounting hole diameter
    • Body dimensions
    • Kind of display used
    • Additional functions
    • Kind of temperature sensor
    • Kind of temperature sensor
    • Kind of temperature sensor
    • Kind of temperature sensor
    • Kind of temperature sensor
    • Controlled parameter
    • Kind of output 1
    • The programming method
    • Kind of output 2
    • Input 1 properties
    • Input 1 properties
    • Display height 1
    • Regulation for output 1
    • Regulation for output 1
    • Regulation for output 1
    • Regulation for output 1
    • Regulation for output 1

    53,61 € 53,61 € (KM-TA) 53.61 EUR

    53,61 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Module: regulator; temperature; SPST-NO; OUT 2: SSR; SPST-NO; 24VAC

    Mounting on panel
    Supply voltage 24V AC, 24...48V DC
    Operating temperature -10...50°C
    Type of module regulator
    Mounting hole diameter 45x45mm
    Body dimensions 48x48x70.5mm
    Kind of display used LED
    Additional functions LED status indicator
    Kind of temperature sensor Cu50, Pt100, thermocouple J, thermocouple K, thermocouple L
    Controlled parameter temperature
    Kind of output 1 SPST-NO
    The programming method foil keypad
    Kind of output 2 SSR
    Input 1 properties RTD, thermocouple
    Display height 1 15mm
    Regulation for output 1 ON-OFF, P, PD, PI, PID
