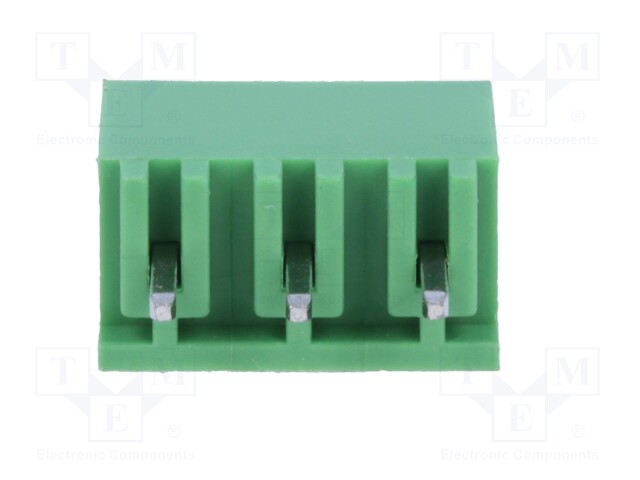

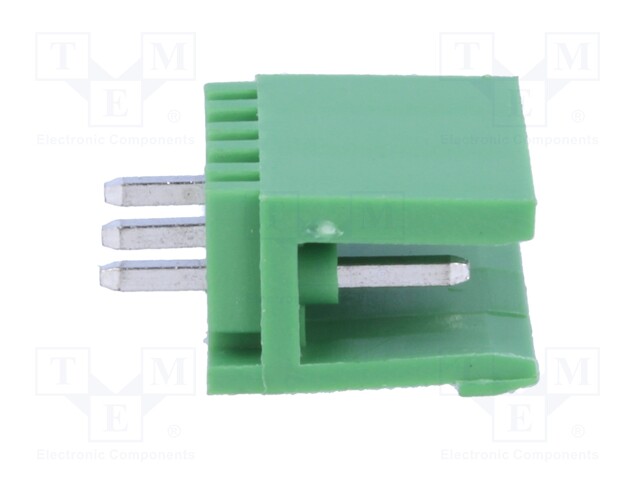

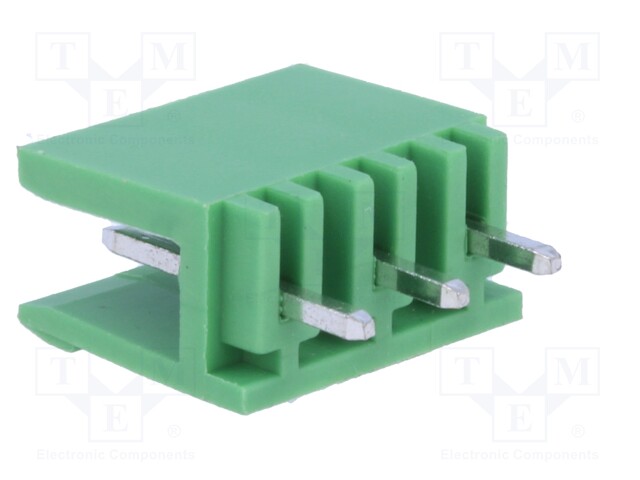

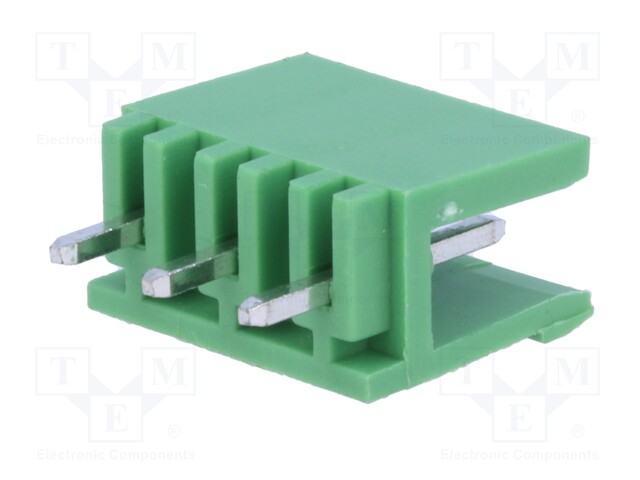

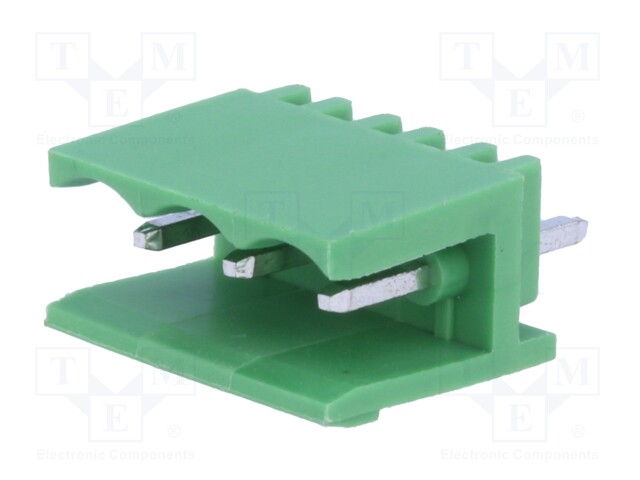

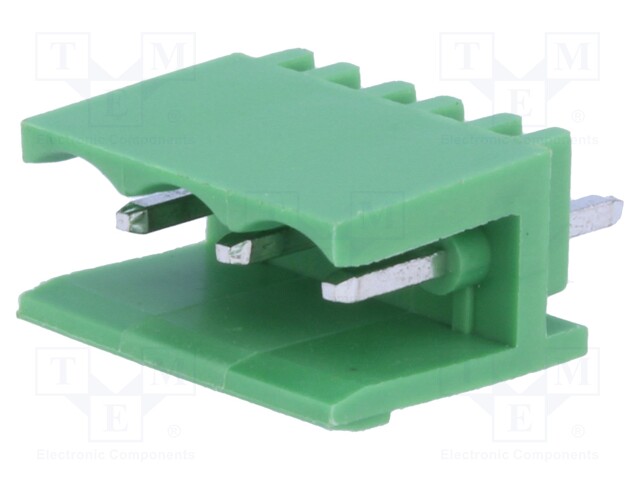

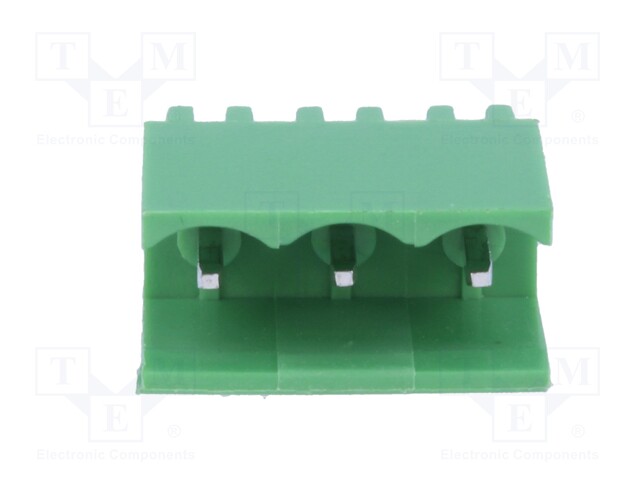

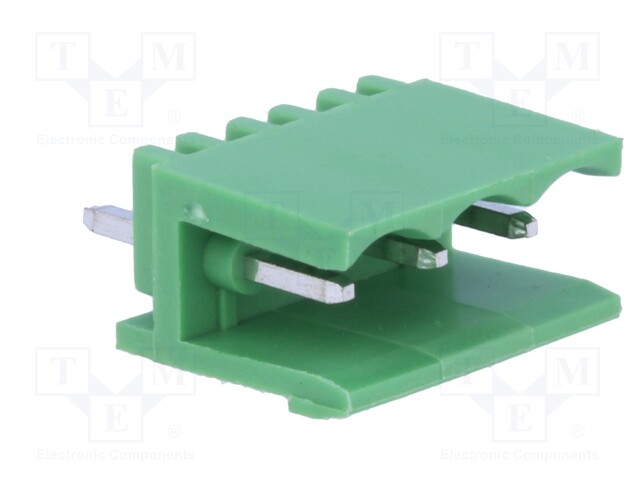

Pluggable terminal block; Contacts ph: 5.08mm; ways: 3; straight

    Kordarv: 1.0
    Minimum quantity: 2.0
    Tootekood: TBG-5-PB-3P/GN
    Tootja: NINIGI
    Tootja tootekood: TBG-5-PB-3P/GN
    • Operating temperature
    • Contacts pitch
    • Electrical mounting
    • Connector
    • Kind of connector
    • Mechanical mounting
    • Colour
    • Contact plating
    • Type of connector
    • Number of pins
    • Contact material
    • Body material
    • Flammability rating
    • Length
    • Height
    • Soldering temperature
    • Current rating
    • Number of ways
    • Type of pin configuration
    • Rated voltage
    • Locking system
    • Connector variant
    • Spatial orientation
    • Connectors features
    • Depth

    0,67 € 0,67 € (KM-TA) 0.67 EUR

    0,67 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

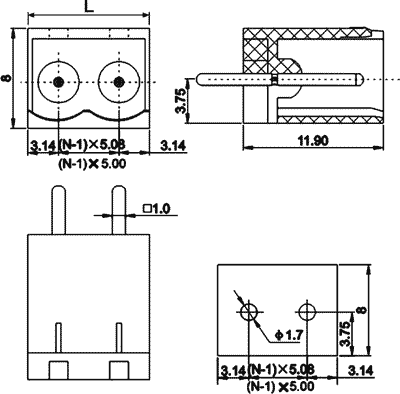

    Spetsifikatsioon tootele Pluggable terminal block; Contacts ph: 5.08mm; ways: 3; straight

    Operating temperature -40...105°C
    Contacts pitch 5.08mm
    Electrical mounting THT
    Connector socket
    Kind of connector male
    Mechanical mounting on PCBs
    Colour green
    Contact plating tinned
    Type of connector pluggable terminal block
    Number of pins 3
    Contact material brass
    Body material polyamide
    Flammability rating UL94V-0
    Length 15.24mm
    Height 12.3mm
    Soldering temperature 250°C / 5 s
    Current rating 15A
    Number of ways 3
    Type of pin configuration 1x3
    Rated voltage 300V
    Locking system latch
    Connector variant without side walls
    Spatial orientation straight
    Connectors features assembling possibility
    Depth 8mm
