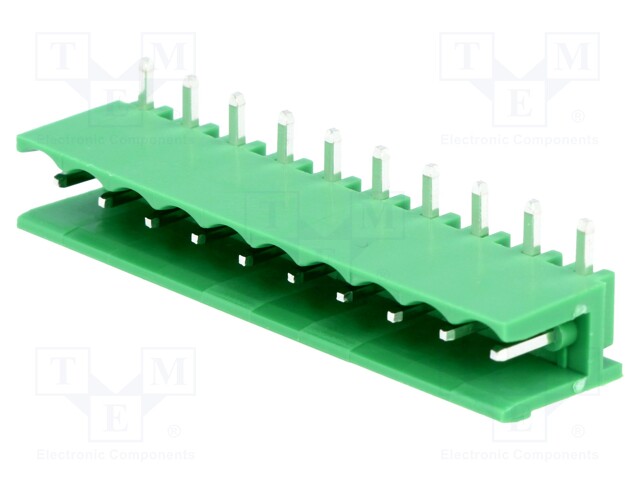

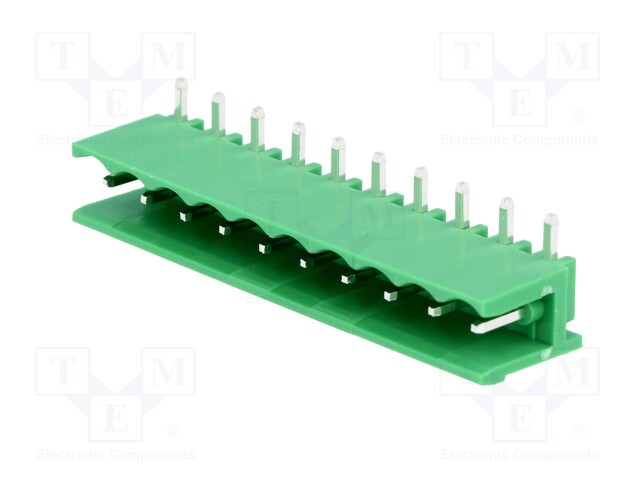

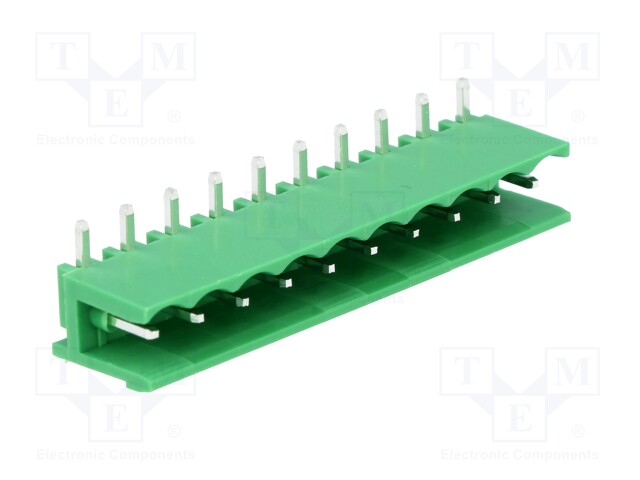

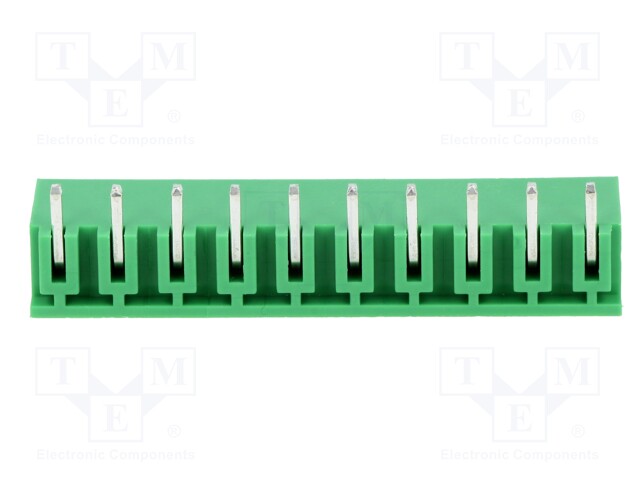

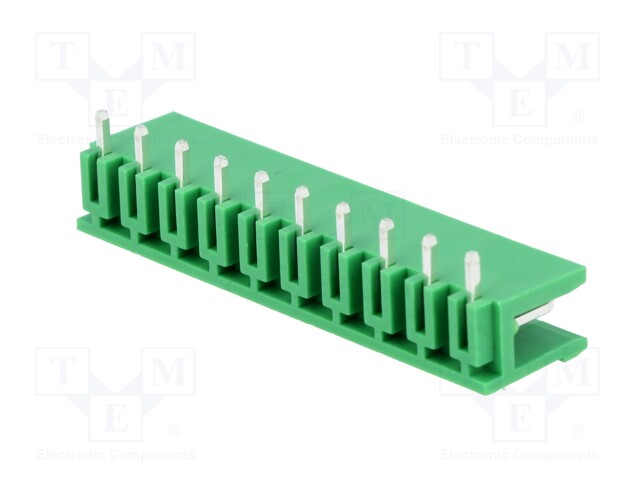

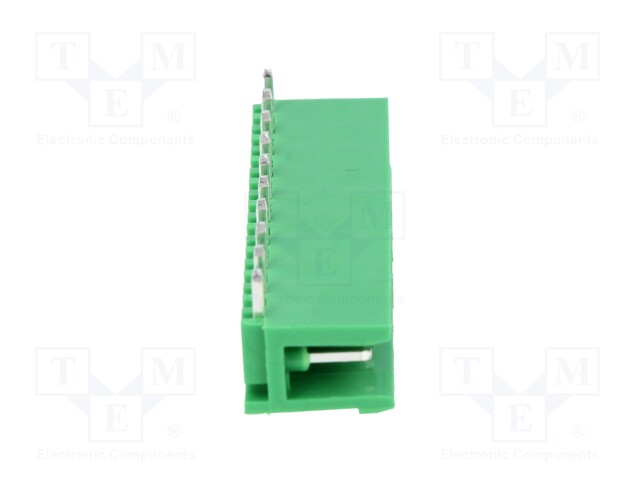

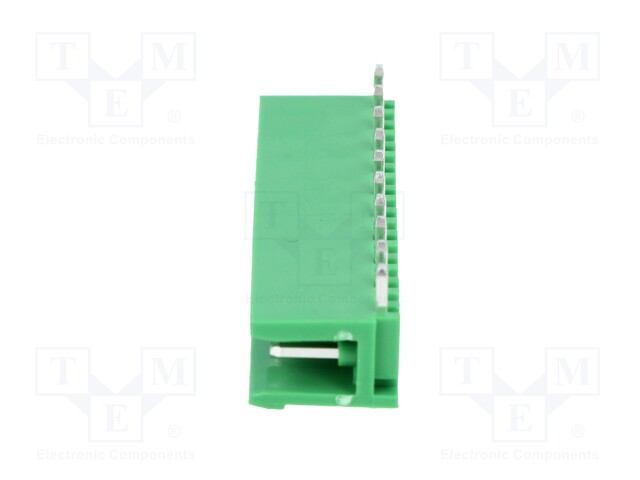

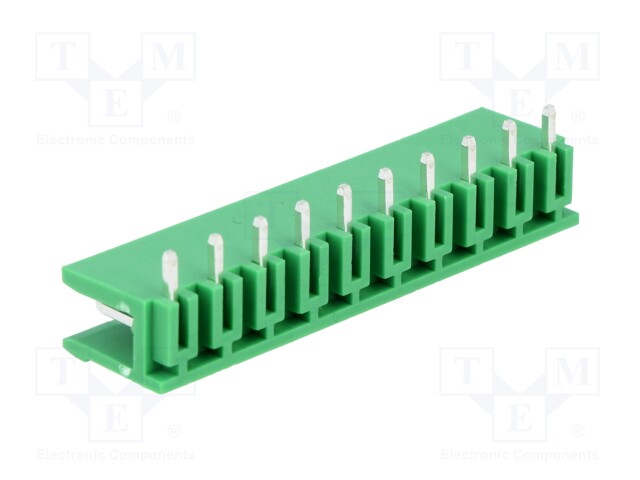

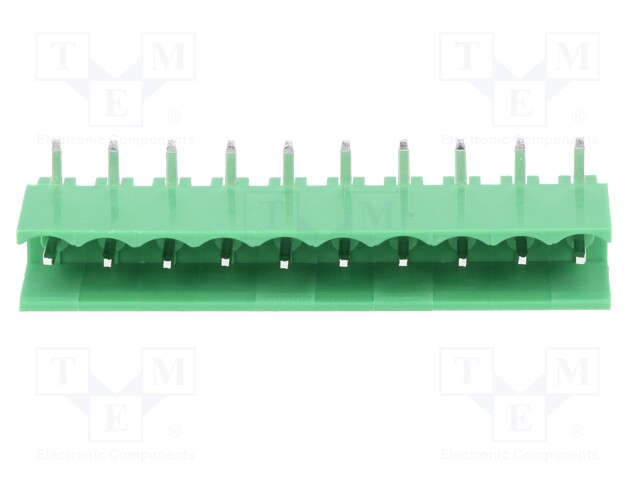

Pluggable terminal block; Contacts ph: 5.08mm; ways: 10; socket

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: TBG-5-KB-10P/GN
    Tootja: NINIGI
    Tootja tootekood: TBG-5-KB-10P/GN
    • Operating temperature
    • Contacts pitch
    • Electrical mounting
    • Connector
    • Kind of connector
    • Mechanical mounting
    • Colour
    • Contact plating
    • Type of connector
    • Number of pins
    • Contact material
    • Body material
    • Flammability rating
    • Length
    • Height
    • Soldering temperature
    • Current rating
    • Number of ways
    • Type of pin configuration
    • Rated voltage
    • Locking system
    • Connector variant
    • Spatial orientation
    • Connectors features
    • Depth

    1,50 € 1,50 € (KM-TA) 1.5 EUR

    1,50 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

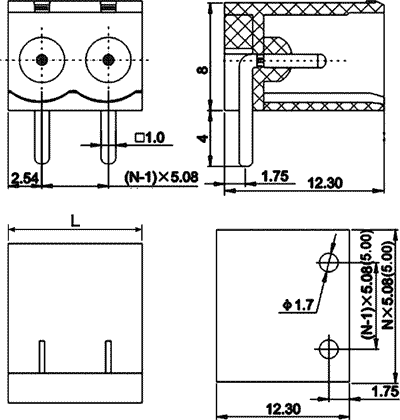

    Spetsifikatsioon tootele Pluggable terminal block; Contacts ph: 5.08mm; ways: 10; socket

    Operating temperature -40...105°C
    Contacts pitch 5.08mm
    Electrical mounting THT
    Connector socket
    Kind of connector male
    Mechanical mounting on PCBs
    Colour green
    Contact plating tinned
    Type of connector pluggable terminal block
    Number of pins 10
    Contact material brass
    Body material polyamide
    Flammability rating UL94V-0
    Length 50.8mm
    Height 8mm
    Soldering temperature 250°C / 5 s
    Current rating 15A
    Number of ways 10
    Type of pin configuration 1x10
    Rated voltage 300V
    Locking system friction lock
    Connector variant without side walls
    Spatial orientation angled 90°
    Connectors features assembling possibility
    Depth 12.3mm
