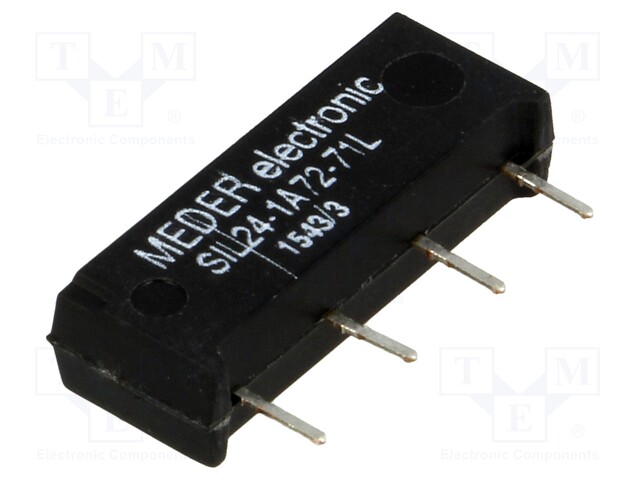

Relay: reed; SPST-NO; Ucoil: 24VDC; 1.25A; max.200VDC; max.200VAC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: SIL24-1A72-71L
    Tootja: MEDER
    Tootja tootekood: SIL24-1A72-71L
    • Mounting
    • Case
    • Operating temperature
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact resistance
    • Contact current max.
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Relay series

    3,92 € 3,92 € (KM-TA) 3.92 EUR

    3,92 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: reed; SPST-NO; Ucoil: 24VDC; 1.25A; max.200VDC; max.200VAC

    Mounting PCB
    Case SIL
    Operating temperature -20...70°C
    Terminal pitch 5.08mm
    Body dimensions 19.2x5.08x7.62mm
    Switched voltage ≤ 200V AC, ≤ 200V DC
    Coil resistance 2kΩ
    Rated coil voltage 24V DC
    Contacts configuration SPST-NO
    Contact resistance 150mΩ
    Contact current max. 1.25A
    Coil voltage max. 47V DC
    Type of relay reed
    Coil voltage min. 16.8V DC
    Coil power consumption 290mW
    Relay series SIL
