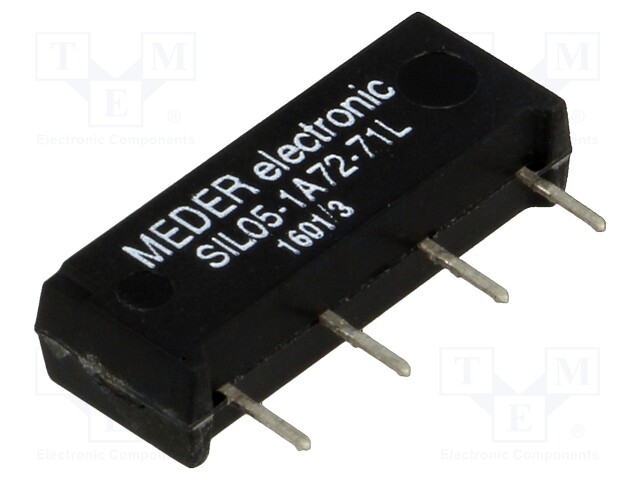

Relay: reed; SPST-NO; Ucoil: 5VDC; 1.25A; max.200VDC; max.200VAC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: SIL05-1A72-71L
    Tootja: MEDER
    Tootja tootekood: SIL05-1A72-71L
    • Mounting
    • Operating temperature
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact resistance
    • Contact current max.
    • Type of relay
    • Coil power consumption

    3,05 € 3,05 € (KM-TA) 3.0500000000000003 EUR

    3,05 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: reed; SPST-NO; Ucoil: 5VDC; 1.25A; max.200VDC; max.200VAC

    Mounting PCB
    Operating temperature -20...70°C
    Terminal pitch 5.08mm
    Body dimensions 19.2x5.08x7.62mm
    Switched voltage ≤ 200V AC, ≤ 200V DC
    Coil resistance 500Ω
    Rated coil voltage 5V DC
    Contacts configuration SPST-NO
    Contact resistance 150mΩ
    Contact current max. 1.25A
    Type of relay reed
    Coil power consumption 50mW
