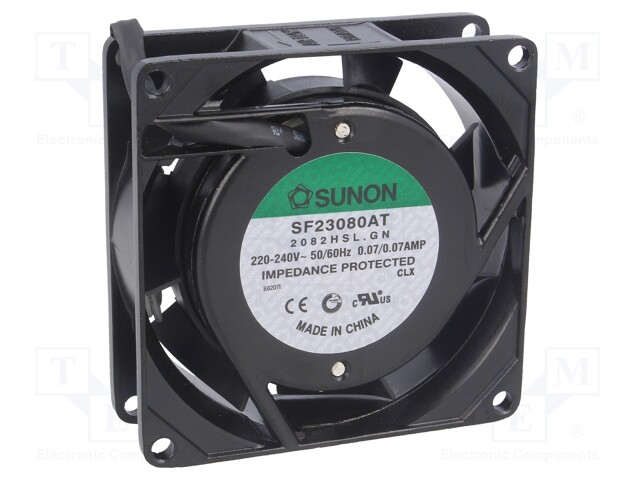

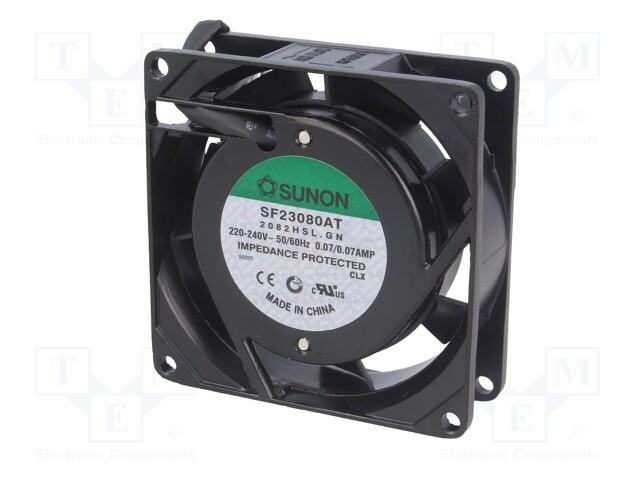

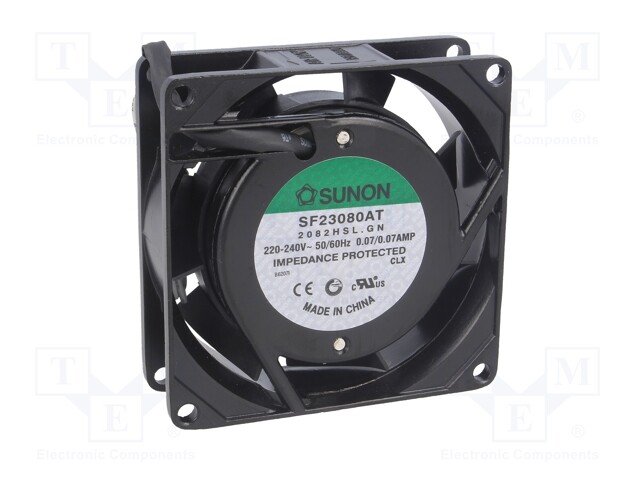

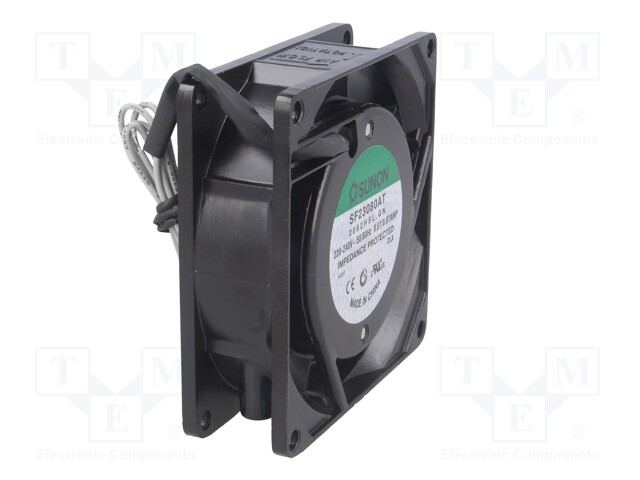

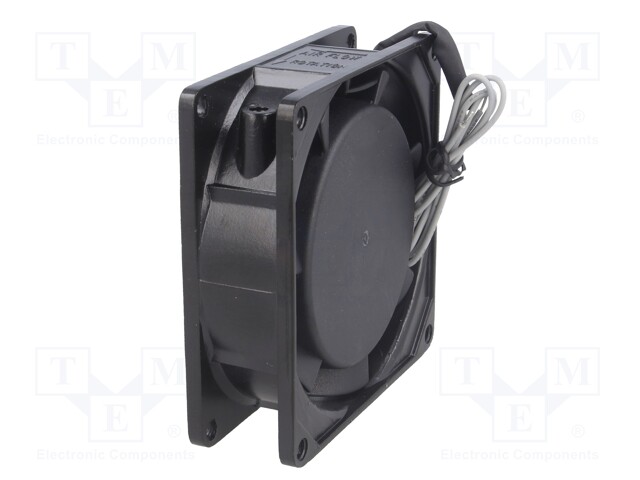

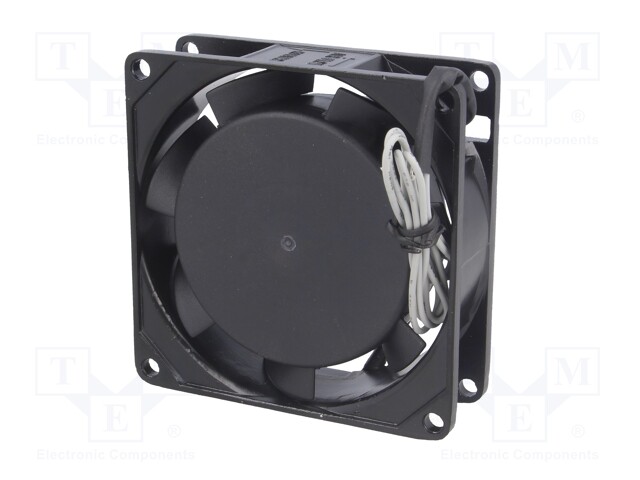

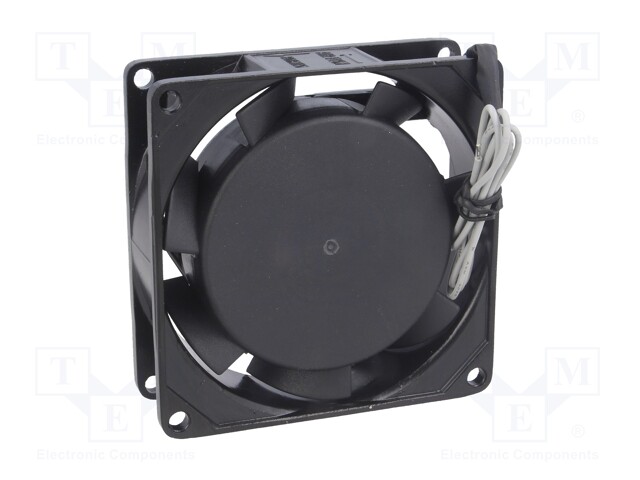

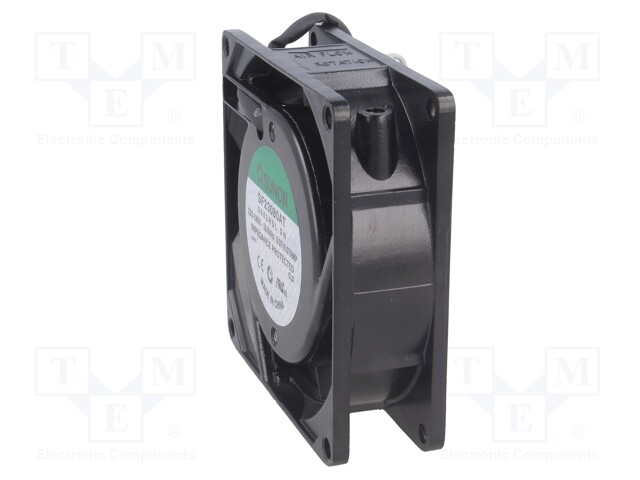

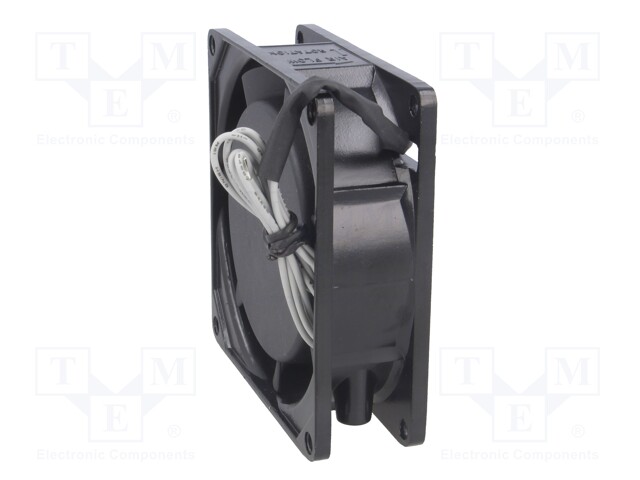

Fan: AC; axial; 230VAC; 80x80x25mm; 28.9(±5%)m3/h; 29dBA; 2300rpm

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: SF23080AT2082HSL.GN
    Tootja: SUNON
    Tootja tootekood: SF23080AT2082HSL.GN
    • Supply voltage
    • Operating temperature
    • Enclosure material
    • Leads
    • Flammability rating
    • Cable length
    • Current rating
    • Frequency
    • Power consumption
    • Rotational rate/speed
    • Fan dimensions
    • Kind of Bearing
    • Min. insulation resistance
    • Impeller material
    • Kind of fan
    • Type of fan
    • Static pressure
    • Noise level

    10,26 € 10,26 € (KM-TA) 10.26 EUR

    10,26 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Fan: AC; axial; 230VAC; 80x80x25mm; 28.9(±5%)m3/h; 29dBA; 2300rpm

    Supply voltage 230V AC
    Operating temperature -10...70°C
    Enclosure material aluminium
    Leads 2 leads
    Flammability rating UL94V-0
    Cable length 330mm
    Current rating 70mA
    Frequency 50Hz
    Power consumption 14W
    Rotational rate/speed 2300rpm

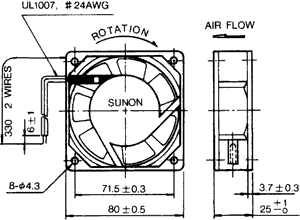

    Fan dimensions 80x80x25mm
    Kind of Bearing slide bearing
    Min. insulation resistance 500MΩ
    Impeller material thermoplastic
    Kind of fan axial
    Type of fan AC
    Static pressure 3.05mm H<sub>2</sub>O
    Noise level 29dBA
