Relay: electromagnetic; DPDT; Ucoil: 12VDC; Icontacts max: 5A; PCB

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: S4M-12B-2CS
    Tootja: SHORI ELECTRIC
    Tootja tootekood: S4M-12B-2CS
    • Mounting
    • Operating temperature
    • Terminal pitch
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Electrical life
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Relay series
    • Coil current

    2,63 € 2,63 € (KM-TA) 2.63 EUR

    2,63 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; DPDT; Ucoil: 12VDC; Icontacts max: 5A; PCB

    Mounting PCB
    Operating temperature -40...70°C

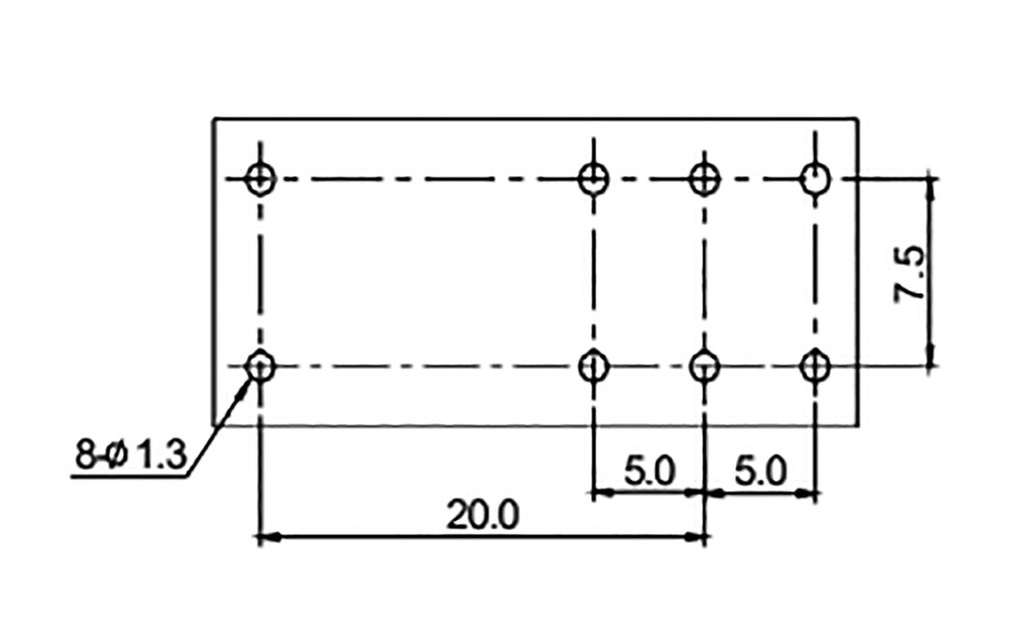

    Terminal pitch 5mm
    Mechanical durability 10000000cycles
    Switched voltage ≤ 30V DC, ≤ 250V AC
    Electrical life 100000cycles
    Coil resistance 270Ω
    Rated coil voltage 12V DC

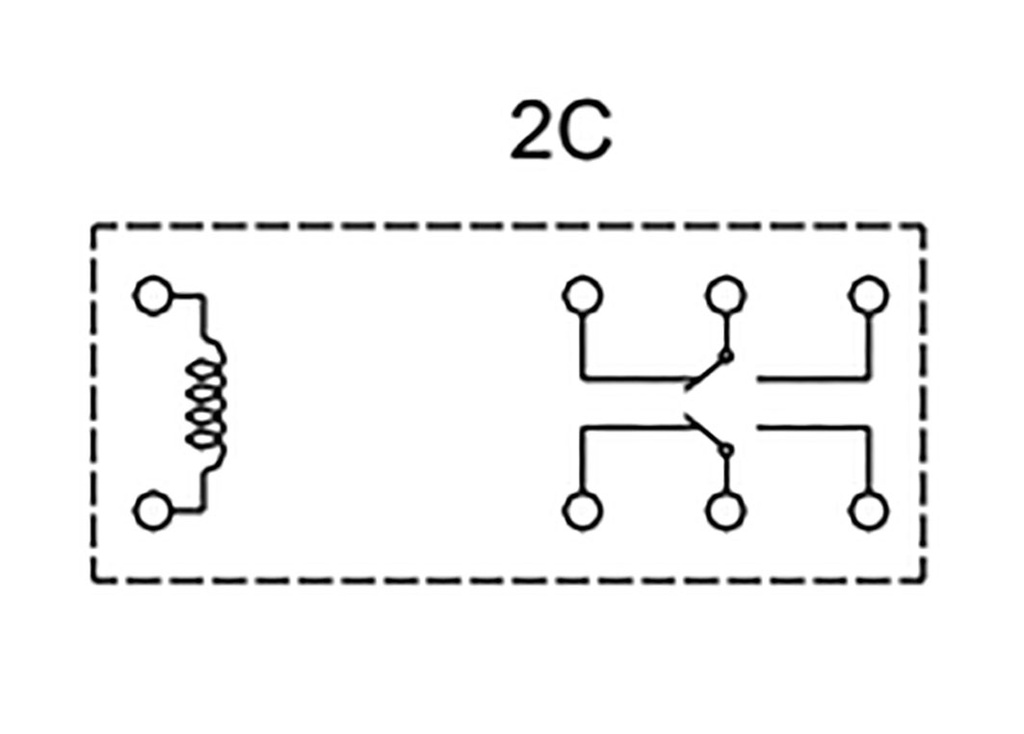

    Contacts configuration DPDT
    DC contacts rating @R 5A / 30V DC
    Contact resistance 100MΩ
    AC contacts rating @R 5A / 250V AC
    Contact current max. 5A
    Relay variant miniature
    Type of relay electromagnetic
    Coil power consumption 540mW
    Relay series S4M
    Coil current 45mA
