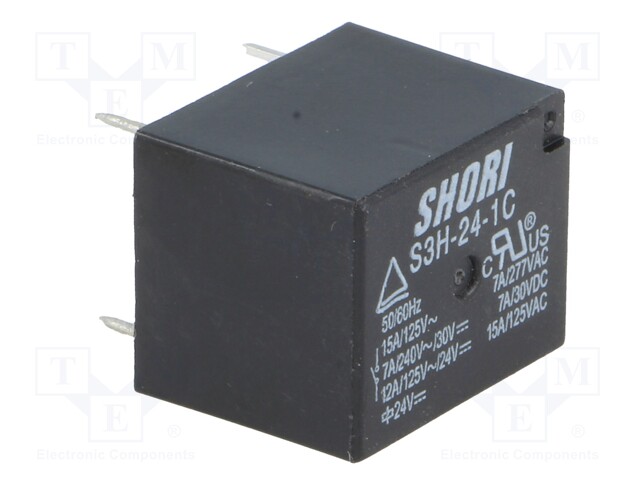

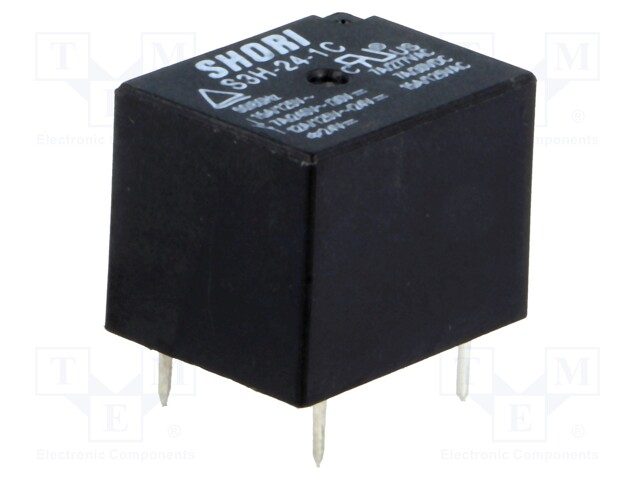

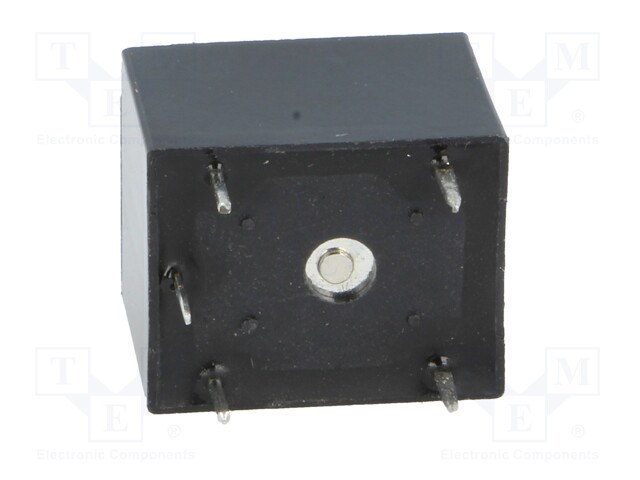

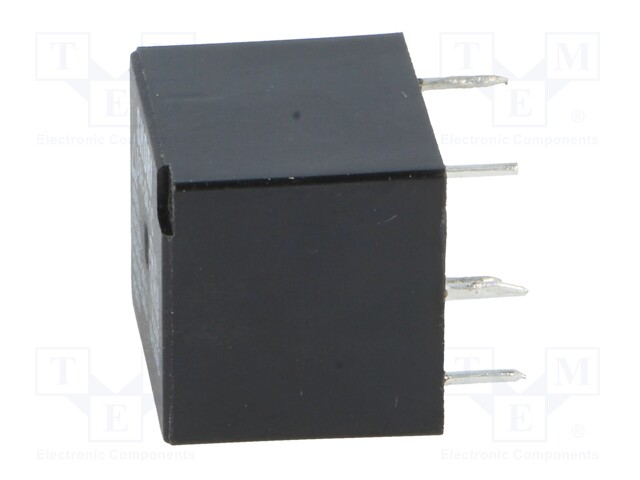

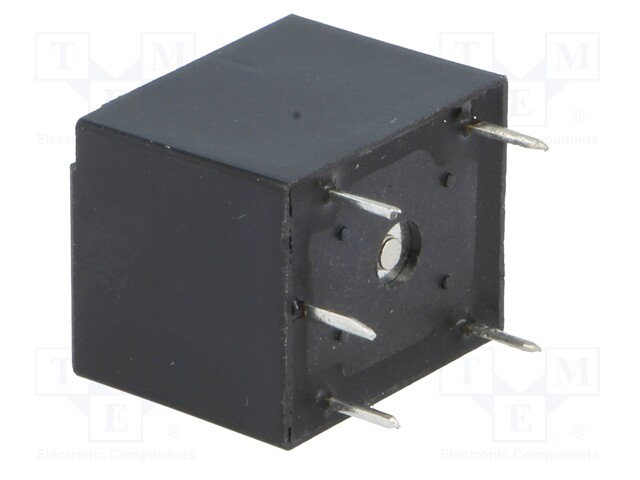

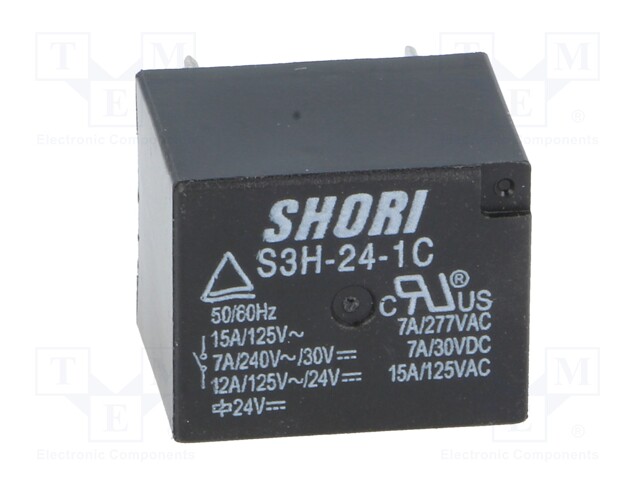

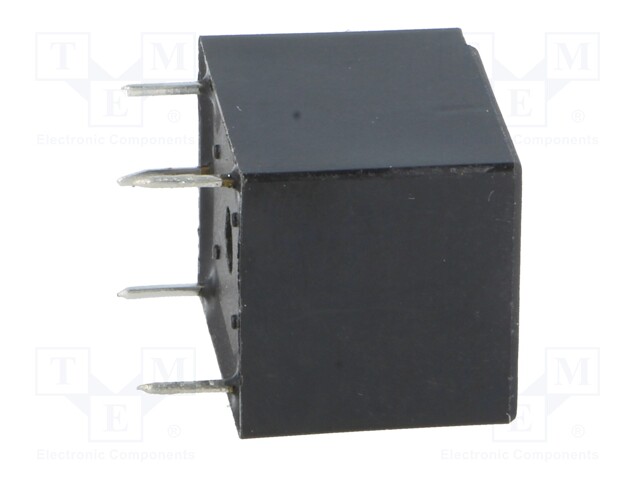

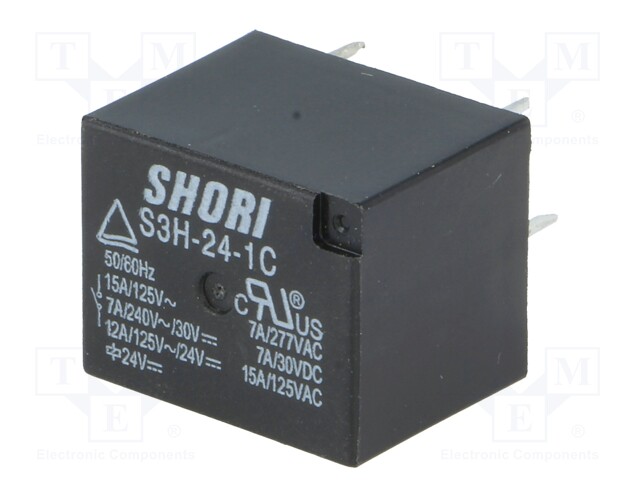

Relay: electromagnetic; SPDT; Ucoil: 24VDC; 7A/277VAC; 7A/30VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: S3H-24-1C
    Tootja: SHORI ELECTRIC
    Tootja tootekood: S3H-24-1C
    • Mounting
    • Operating temperature
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Relay series
    • Operate time
    • Release time
    • Coil current

    1,46 € 1,46 € (KM-TA) 1.46 EUR

    1,46 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPDT; Ucoil: 24VDC; 7A/277VAC; 7A/30VDC

    Mounting PCB
    Operating temperature -30...85°C
    Terminal pitch 2mm
    Body dimensions 19.6x15.6x15mm
    Switched voltage ≤ 30V DC, ≤ 277V AC
    Coil resistance 1.6kΩ
    Rated coil voltage 24V DC
    Contacts configuration SPDT
    DC contacts rating @R 7A / 30V DC
    Contact resistance 100MΩ
    AC contacts rating @R 7A / 277V AC
    Contact current max. 15A
    Relay variant miniature
    Type of relay electromagnetic
    Coil power consumption 360mW
    Relay series S3H
    Operate time 10ms
    Release time 5ms
    Coil current 15mA
