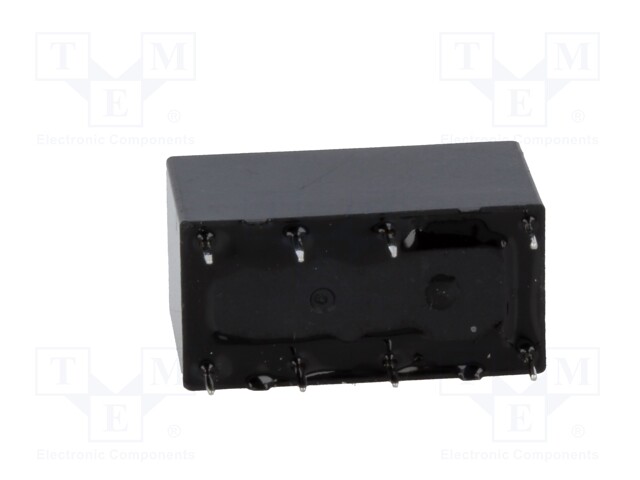

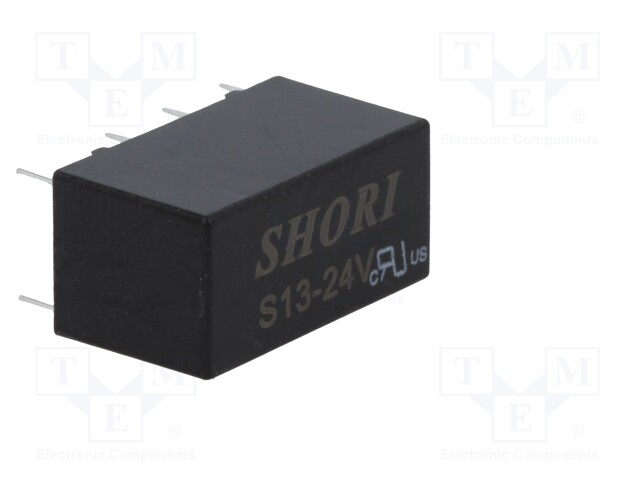

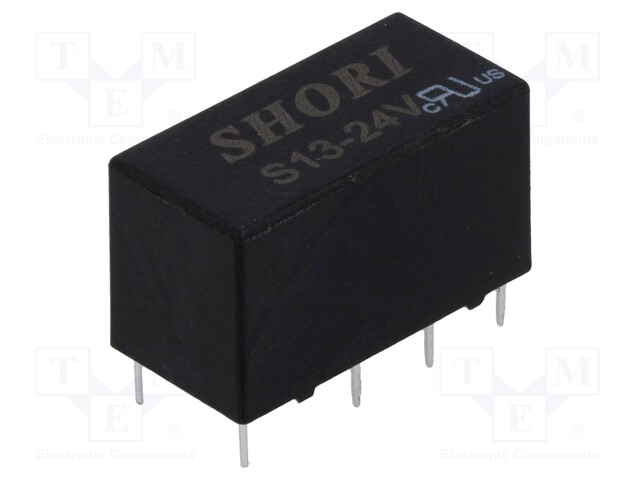

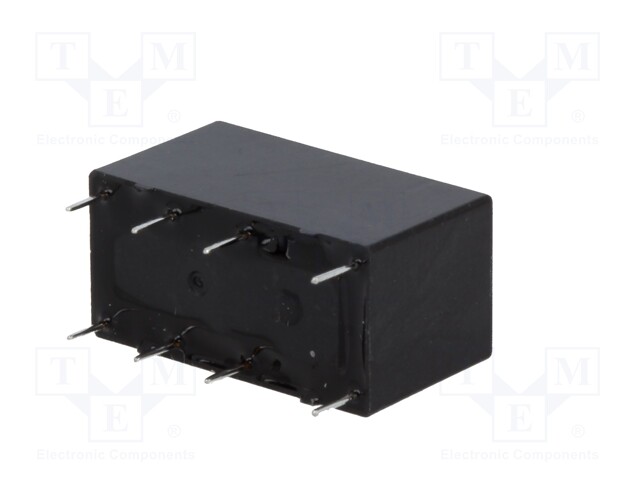

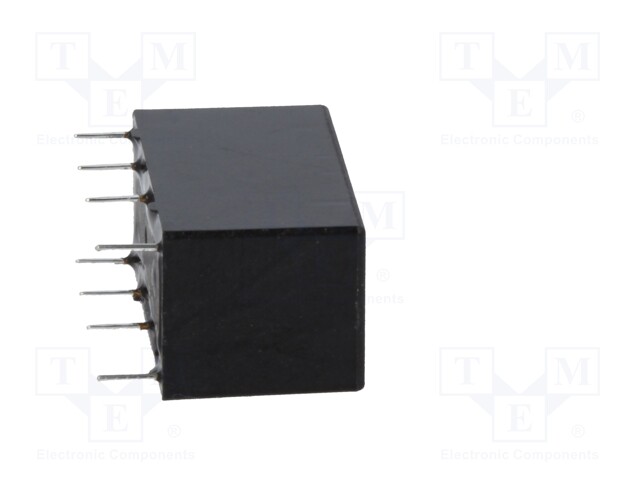

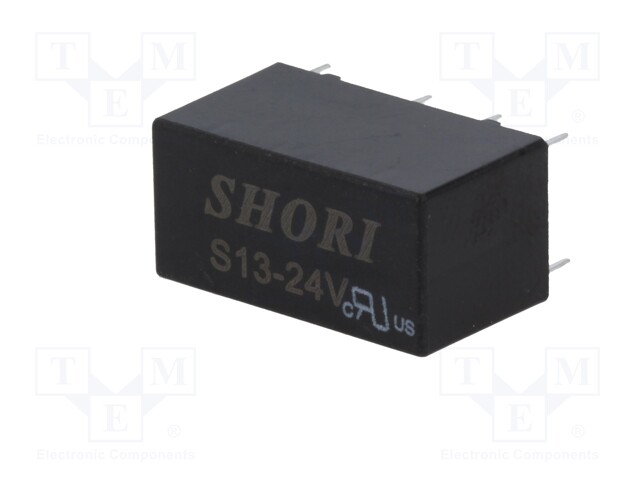

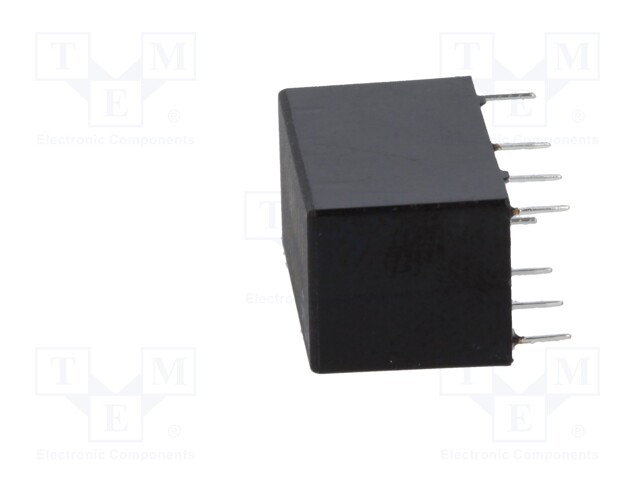

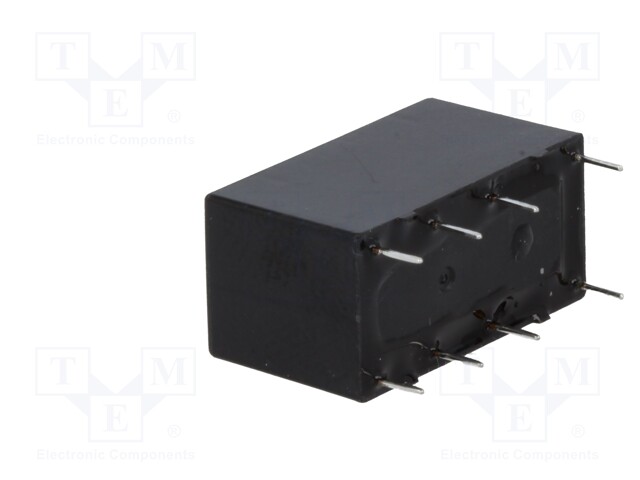

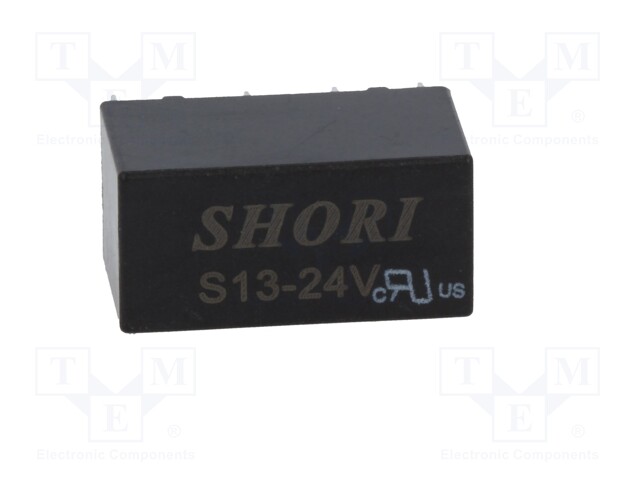

Relay: electromagnetic; DPDT; Ucoil: 24VDC; 0.5A/125VAC; 1A/30VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: S13-24V-2C
    Tootja: SHORI ELECTRIC
    Tootja tootekood: S13-24V-2C
    • Mounting
    • Operating temperature
    • Terminal pitch
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Electrical life
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Relay series
    • Coil current

    2,03 € 2,03 € (KM-TA) 2.0300000000000002 EUR

    2,03 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; DPDT; Ucoil: 24VDC; 0.5A/125VAC; 1A/30VDC

    Mounting PCB
    Operating temperature -25...70°C
    Terminal pitch 5mm
    Body dimensions 20.2x9.8x12mm
    Mechanical durability 15000000cycles
    Switched voltage ≤ 125V AC, ≤ 125V DC
    Electrical life 100000cycles
    Coil resistance 2.89kΩ
    Rated coil voltage 24V DC
    Contacts configuration DPDT
    DC contacts rating @R 1A / 30V DC
    Contact resistance 100MΩ
    AC contacts rating @R 500mA / 125V AC
    Contact current max. 2A
    Relay variant miniature
    Type of relay electromagnetic
    Coil power consumption 200mW
    Relay series S13
    Coil current 8.3mA
