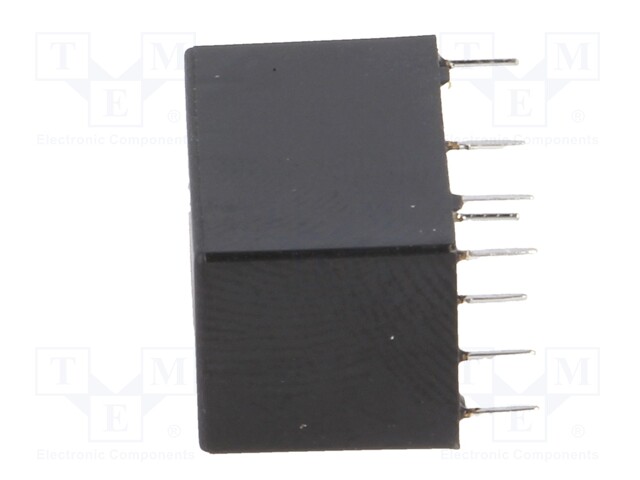

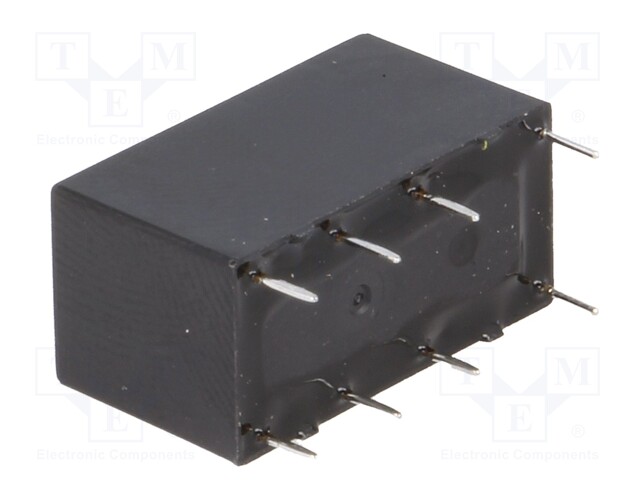

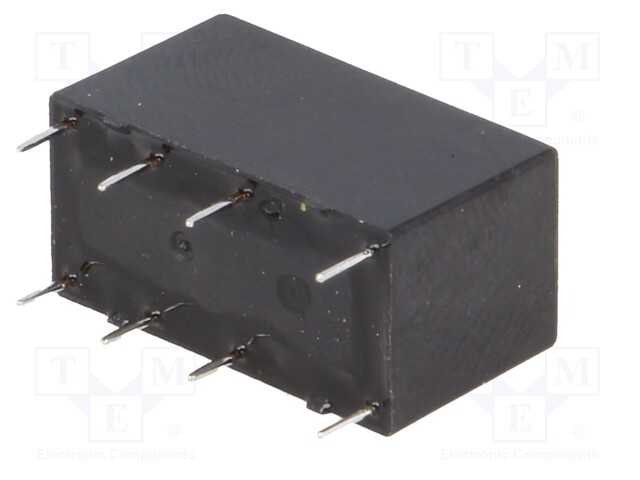

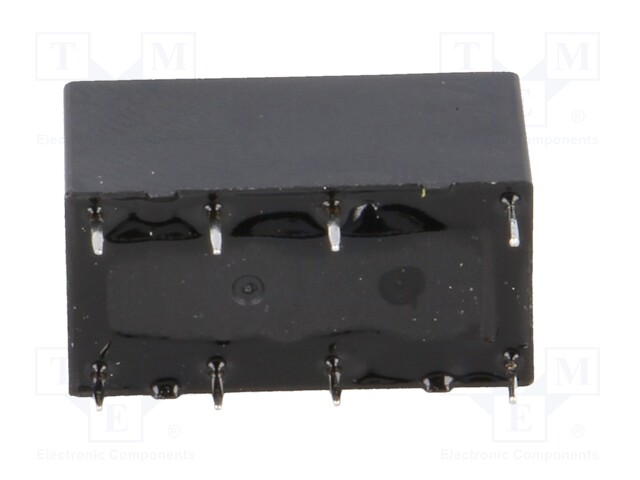

Relay: electromagnetic; DPDT; Ucoil: 12VDC; 0.5A/125VAC; 1A/30VDC

Kordarv: 1.0
Minimum quantity: 1.0
Tootekood: S13-12V-2C
Tootja: SHORI ELECTRIC
Tootja tootekood: S13-12V-2C
  • Mounting
  • Operating temperature
  • Terminal pitch
  • Body dimensions
  • Mechanical durability
  • Switched voltage
  • Switched voltage
  • Electrical life
  • Coil resistance
  • Rated coil voltage
  • Contacts configuration
  • DC contacts rating @R
  • Contact resistance
  • AC contacts rating @R
  • Contact current max.
  • Relay variant
  • Type of relay
  • Coil power consumption
  • Relay series
  • Coil current

2,04 € 2,04 € (KM-TA) 2.04 EUR

2,04 €

Seda kombinatsiooni ei eksisteeri.

Lisa ostukorvi

Product downloads

Spetsifikatsioon tootele Relay: electromagnetic; DPDT; Ucoil: 12VDC; 0.5A/125VAC; 1A/30VDC

Mounting PCB
Operating temperature -25...70°C
Terminal pitch 5mm

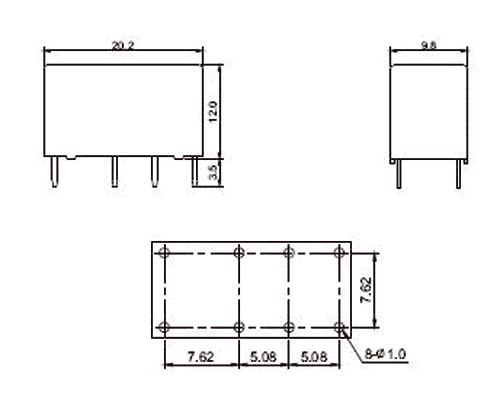

Body dimensions 20.2x9.8x12mm
Mechanical durability 15000000cycles
Switched voltage ≤ 125V AC, ≤ 125V DC
Electrical life 100000cycles
Coil resistance 720Ω
Rated coil voltage 12V DC

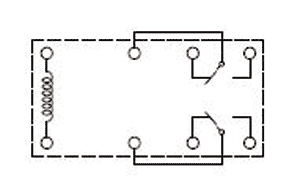

Contacts configuration DPDT
DC contacts rating @R 1A / 30V DC
Contact resistance 100MΩ
AC contacts rating @R 500mA / 125V AC
Contact current max. 2A
Relay variant miniature
Type of relay electromagnetic
Coil power consumption 200mW
Relay series S13
Coil current 16.7mA
