Relay: electromagnetic; DPDT; Ucoil: 12VDC; 0.5A/120VAC; 1A/24VDC
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
RY-12W-K
Tootja: FUJITSU
Tootja tootekood: RY-12W-K
Product downloads
Spetsifikatsioon tootele Relay: electromagnetic; DPDT; Ucoil: 12VDC; 0.5A/120VAC; 1A/24VDC
Mounting | PCB |
Operating temperature | -30...90°C |
Contact plating | gold-plated |
Contact material | AgPd/Au 0,2μm |

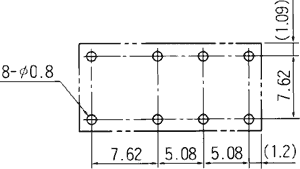

Terminal pitch | 5mm |
Body dimensions | 20.2x9.8x12.5mm |
Switched voltage | ≤ 60V DC, ≤ 120V AC |
Coil resistance | 960Ω |
Rated coil voltage | 12V DC |

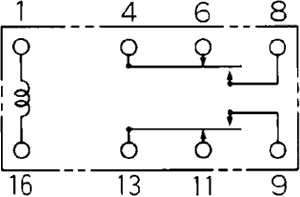

Contacts configuration | DPDT |
DC contacts rating @R | 1A / 24V DC |
Contact resistance | 100MΩ |
AC contacts rating @R | 500mA / 120V AC |
Contact current max. | 1A |
Relay variant | miniature |
Type of relay | electromagnetic |
Coil power consumption | 150mW |
Relay series | RY |
Operate time | 6ms |
Release time | 3ms |
