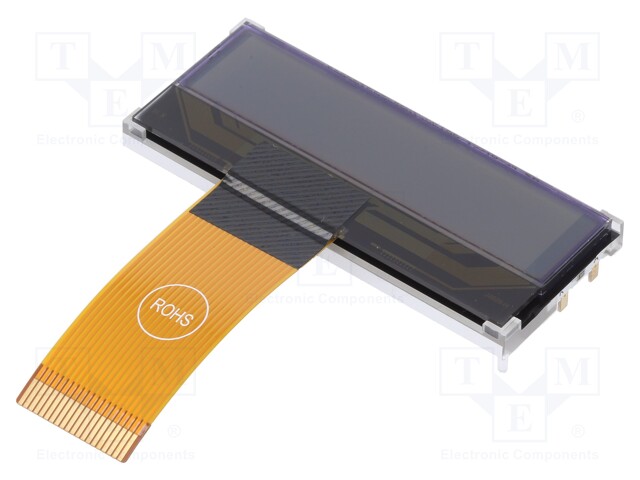

Display: LCD; alphanumeric; COG,STN Positive; 16x2; gray; LED
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
RX1602A2-GHW-TS
Tootja: RAYSTAR OPTRONICS
Tootja tootekood: RX1602A2-GHW-TS
Product downloads
- pVersion=0046&contRep=ZT&docId=005056AB281E1EDC9FE897947D2240CE&compId=RX1602A2-GHW-TS.pdf?ci_sign=ea8f86a50601ac2bd84a94286091c9118643d93c
- pVersion=0046&contRep=ZT&docId=005056AB281E1EDE80A1B5BCC66760D5&compId=displays.txt?ci_sign=eaf78fd912bebb1d94d1d350f52cc04fb0aa44fb
- pVersion=0046&contRep=ZT&docId=005056AB281E1EDEA5B8CA5506F200D6&compId=Raystar%20IC%20EOL%20ST7032%20ST7036.pdf?ci_sign=e9426a938406ec4241f6d98bd58d556a5b645770
- pVersion=0046&contRep=ZT&docId=005056AB281E1EDFA48D1C148081C0D6&compId=ESD%20Customer%20Service.txt?ci_sign=3268072bd7a58e9047ff598dac2a1cb8c9585688
- pVersion=0046&contRep=ZT&docId=005056AB752F1ED48CB77DBACB3221EC&compId=Raystar_backlight%26color%20matching.JPG?ci_sign=e80807c6986c04b0fcce7e0d8f5e39f58a3db2ed
Spetsifikatsioon tootele Display: LCD; alphanumeric; COG,STN Positive; 16x2; gray; LED
| Supply voltage | 3...5V DC |
| Number of pins | 20 |
| Dimensions | 72.1x29.6x9.4mm |
| Type of pin configuration | 1x20 |
| Number of characters (columns x lines) | 16x2 |
| Kind of display | alphanumeric |
| Display technology | COG, STN Positive |
| Backgr. colour | gray |
| Backlight colour | white |
| Illumination | LED |
| Window dimensions (H x W) | 61x15.1mm |
| Kind of controller | ST7032 |
| Type of display | LCD |
| Ribbon cable pitch | 1mm |
| Digit height | 5.55mm |
| Character width | 2.95mm |
| Supported character set | English, Europe, Japanese |
