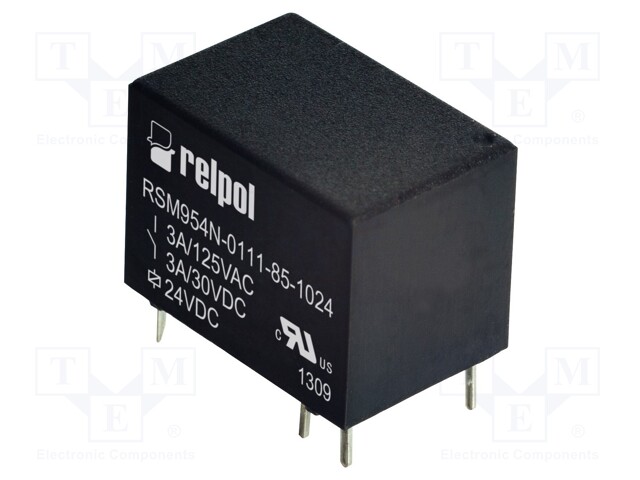

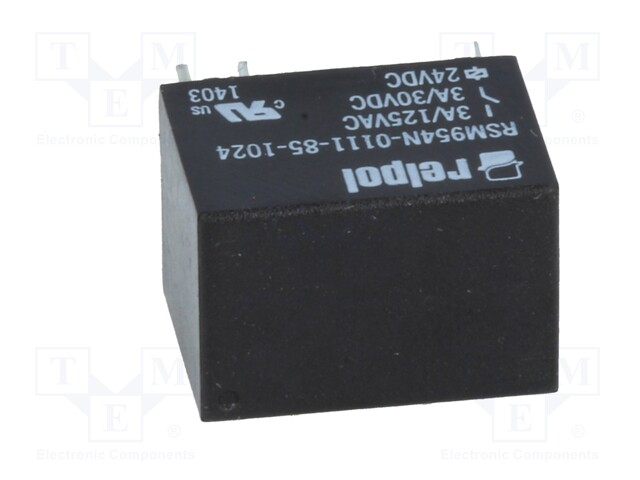

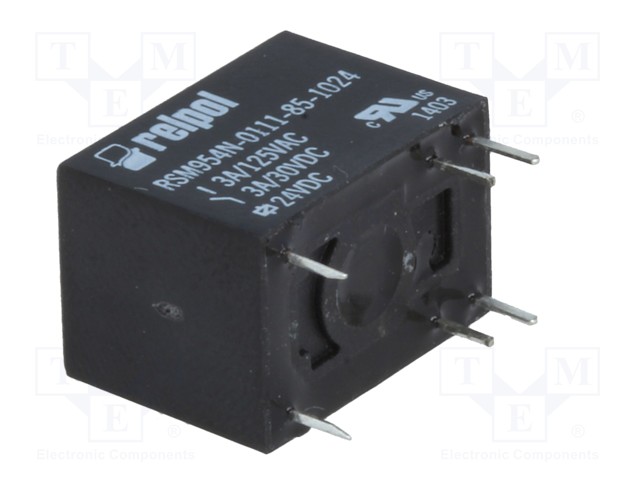

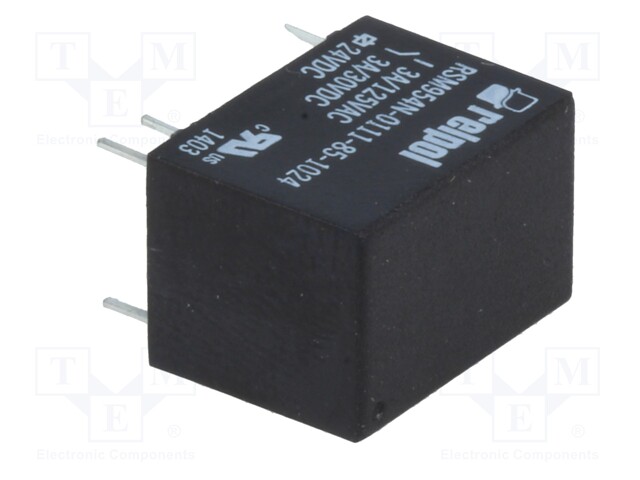

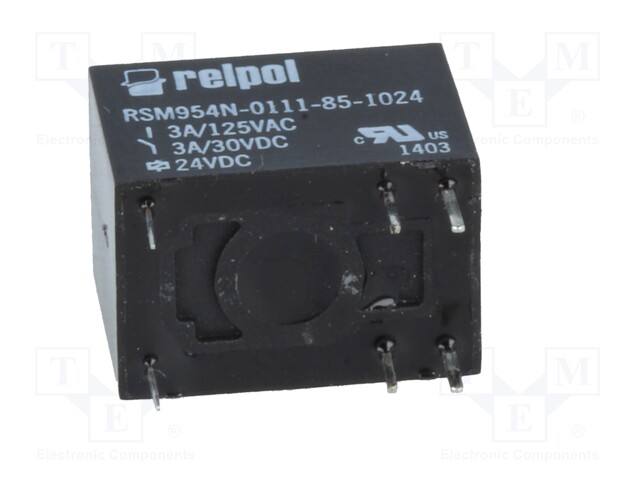

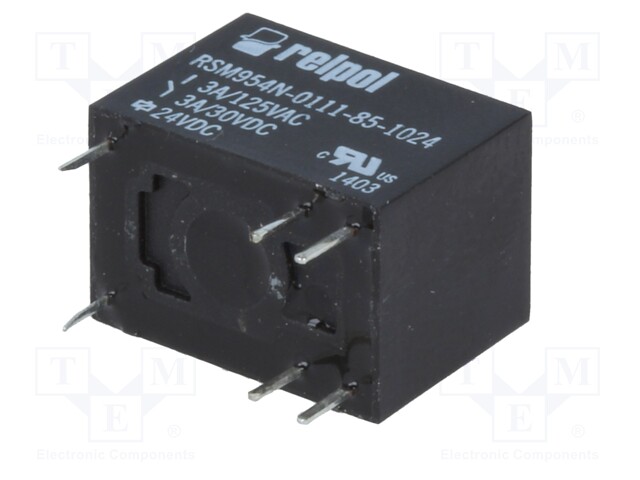

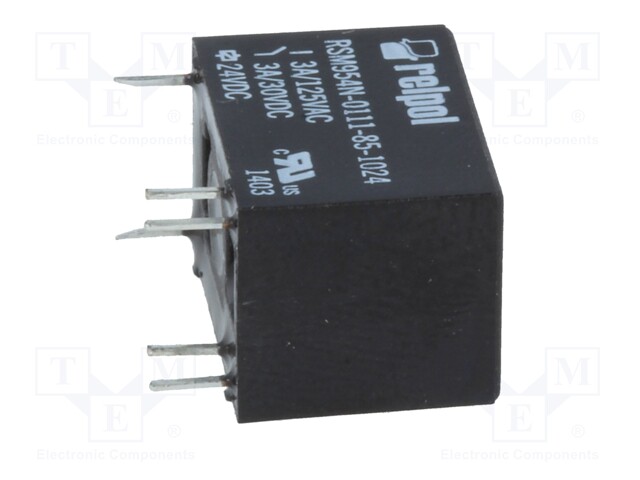

Relay: electromagnetic; SPDT; Ucoil: 24VDC; 3A/125VAC; 3A/30VDC; 3A

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: RSM954N-0111-85-1024
    Tootja: RELPOL
    Tootja tootekood: RSM954N-0111-85-1024
    • Mounting
    • Operating temperature
    • IP rating
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Electrical life
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Relay series
    • Operate time
    • Release time
    • OEM number

    2,36 € 2,36 € (KM-TA) 2.36 EUR

    2,36 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPDT; Ucoil: 24VDC; 3A/125VAC; 3A/30VDC; 3A

    Mounting PCB
    Operating temperature -25...55°C
    IP rating IP64
    Contact material Ag/Au 0,2μm
    Terminal pitch 2.54mm
    Body dimensions 15.5x11x11.5mm
    Mechanical durability 100000000cycles
    Switched voltage ≤ 30V DC, ≤ 220V AC
    Electrical life 100000cycles
    Coil resistance 1.6kΩ
    Rated coil voltage 24V DC
    Contacts configuration SPDT
    DC contacts rating @R 3A / 30V DC
    Contact resistance 50mΩ
    AC contacts rating @R 3A / 125V AC
    Contact current max. 3A
    Relay variant monostable, subminiature
    Coil voltage max. 26.5V DC
    Type of relay electromagnetic
    Coil voltage min. 18V DC
    Coil power consumption 360mW
    Relay series RSM954N
    Operate time 5ms
    Release time 5ms
    OEM number 2614628
