Relay: electromagnetic; SPDT; Ucoil: 12VDC; 6A/250VAC; 6A/24VDC; 6A
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
RM699BH-3011-85-1012
Tootja: RELPOL
Tootja tootekood: RM699BH-3011-85-1012
Product downloads
Spetsifikatsioon tootele Relay: electromagnetic; SPDT; Ucoil: 12VDC; 6A/250VAC; 6A/24VDC; 6A
Mounting | horizontal, PCB |
Operating temperature | -40...85°C |
IP rating | IP64 |
Contact material | AgSnO<sub>2</sub> |
Terminal pitch | 5mm |

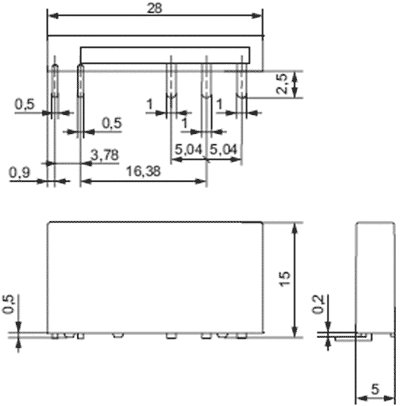

Body dimensions | 28x5x15mm |
Switched voltage | ≤ 24V DC, ≤ 400V AC |
Coil resistance | 848Ω |
Rated coil voltage | 12V DC |
Contacts configuration | SPDT |
DC contacts rating @R | 6A / 24V DC |
Contact resistance | 100MΩ |
AC contacts rating @R | 6A / 250V AC |
Contact current max. | 6A |
Relay variant | interface |
Coil voltage max. | 18V DC |
Type of relay | electromagnetic |
Coil voltage min. | 9V DC |
Coil power consumption | 170mW |
Relay series | RM699B |
Operate time | 8ms |
Release time | 4ms |
OEM number | 2613699 |
