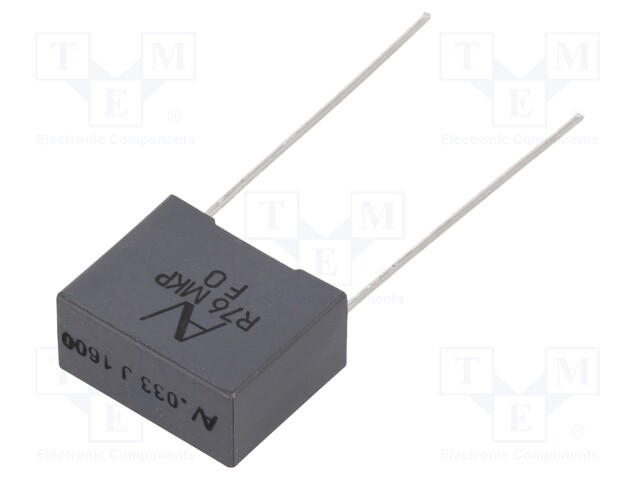

Capacitor: polypropylene; 33nF; 15mm; ±5%; 18x8.5x14.5mm; 6kV/μs

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: R76TI23304040J
    Tootja: KEMET
    Tootja tootekood: R76TI23304040J
    • Mounting
    • Operating temperature
    • Tolerance
    • Terminal pitch
    • Flammability rating
    • Body dimensions
    • Max. operating voltage
    • Max. operating voltage
    • Capacitance
    • Type of capacitor
    • Lead length
    • Conform to the norm
    • Climate class
    • Climate class
    • Pulse resistance

    1,58 € 1,58 € (KM-TA) 1.58 EUR

    1,58 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Capacitor: polypropylene; 33nF; 15mm; ±5%; 18x8.5x14.5mm; 6kV/μs

    Mounting THT
    Operating temperature -55...105°C
    Tolerance ±5%
    Terminal pitch 15mm
    Flammability rating UL94V-0
    Body dimensions 18x8.5x14.5mm
    Max. operating voltage 650V AC, 1.6kV DC
    Capacitance 33nF
    Type of capacitor polypropylene
    Lead length 30mm
    Conform to the norm AEC-Q200
    Climate class 55/105/56, IEC60068-1
    Pulse resistance 6kV/μs
