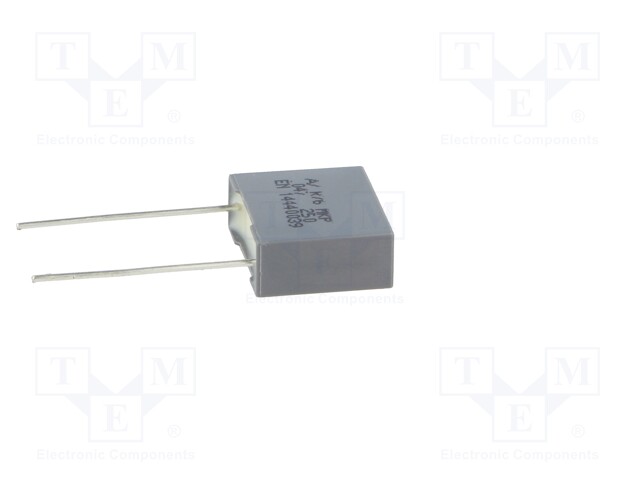

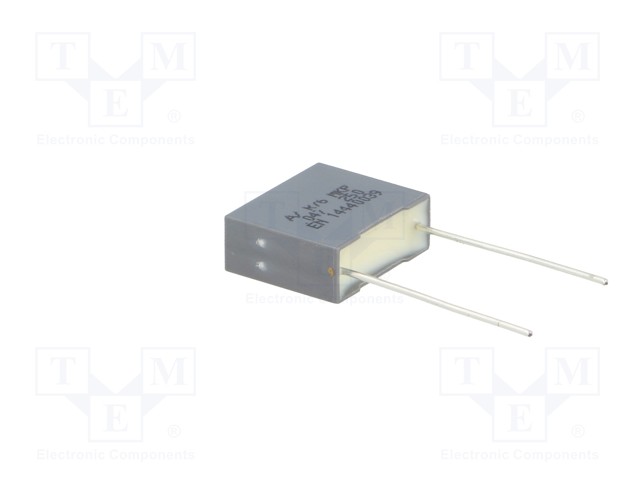

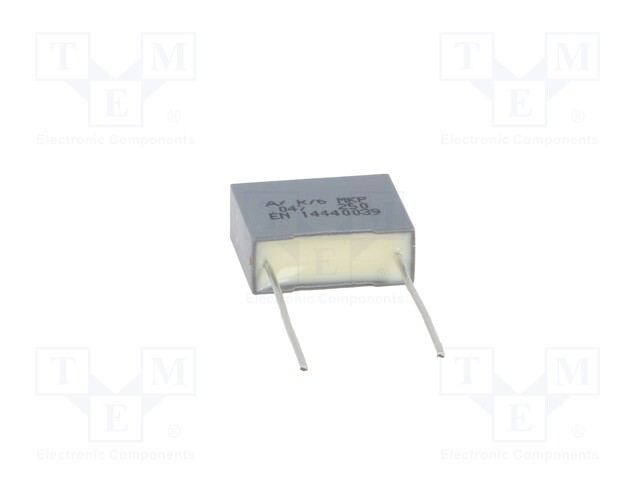

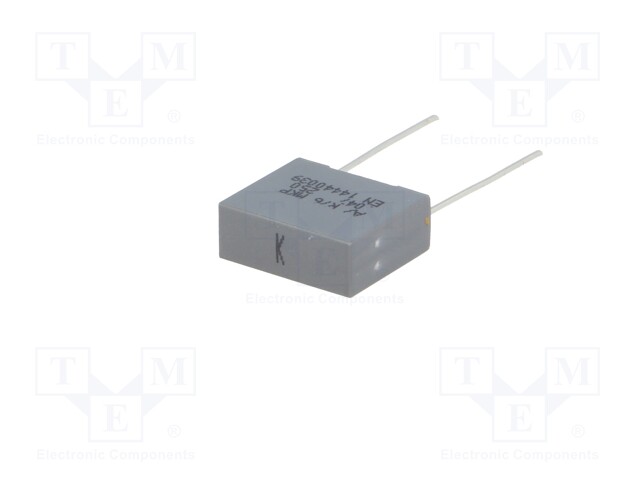

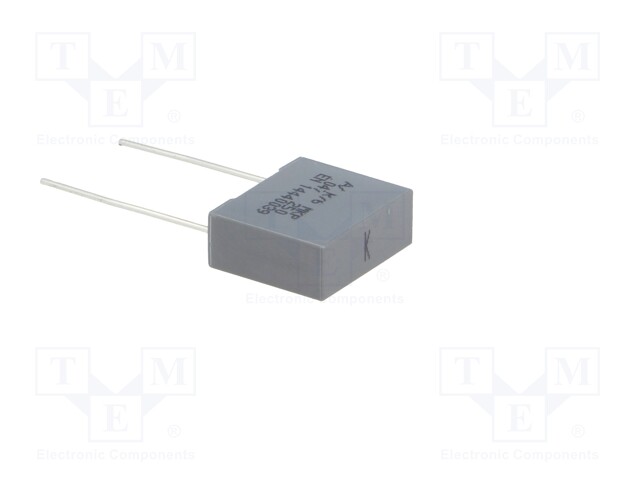

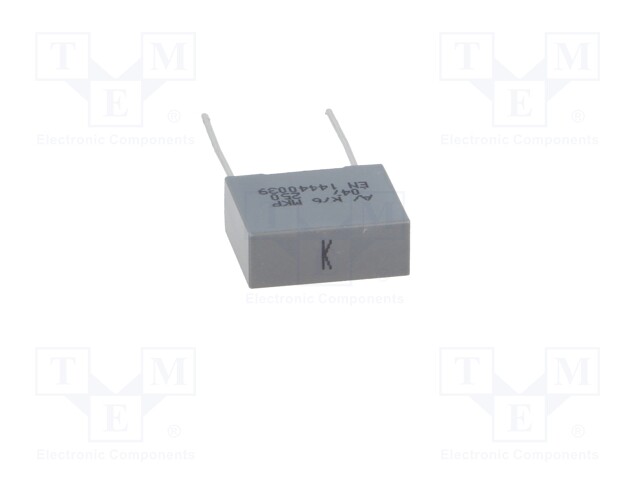

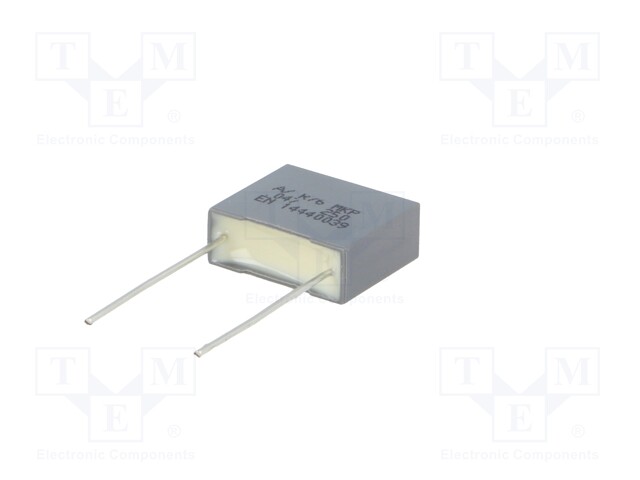

Capacitor: polypropylene; 47nF; 10mm; ±10%; 13x5x11mm; -55÷105°C

    Kordarv: 1.0
    Minimum quantity: 10.0
    Tootekood: R76IF2470DQ30K
    Tootja: KEMET
    Tootja tootekood: R76IF2470DQ30K
    • Mounting
    • Operating temperature
    • Tolerance
    • Kind of package
    • Terminal pitch
    • Flammability rating
    • Body dimensions
    • Max. operating voltage
    • Max. operating voltage
    • Capacitance
    • Type of capacitor
    • Conform to the norm
    • Climate class
    • Climate class
    • Pulse resistance

    0,82 € 0,82 € (KM-TA) 0.8200000000000001 EUR

    0,82 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Capacitor: polypropylene; 47nF; 10mm; ±10%; 13x5x11mm; -55÷105°C

    Mounting THT
    Operating temperature -55...105°C
    Tolerance ±10%
    Kind of package tape
    Terminal pitch 10mm
    Flammability rating UL94V-0
    Body dimensions 13x5x11mm
    Max. operating voltage 180V AC, 250V DC
    Capacitance 47nF
    Type of capacitor polypropylene
    Conform to the norm AEC-Q200
    Climate class 55/105/56, IEC60068-1
    Pulse resistance 1kV/μs
