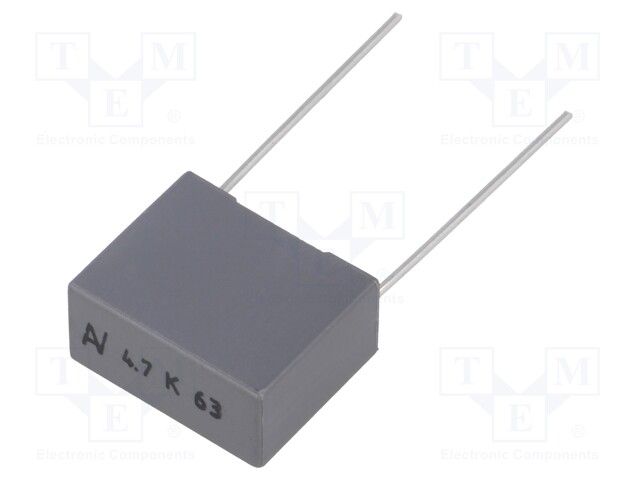

Capacitor: polyester; 4.7uF; 40VAC; 63VDC; Pitch: 15mm; ±10%

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: R60DI44705030K
    Tootja: KEMET
    Tootja tootekood: R60DI44705030K
    • Mounting
    • Operating temperature
    • Tolerance
    • Terminal pitch
    • Body dimensions
    • Max. operating voltage
    • Max. operating voltage
    • Capacitance
    • Type of capacitor
    • Lead length
    • Conform to the norm
    • Climate class
    • Climate class
    • Pulse resistance

    1,91 € 1,91 € (KM-TA) 1.9100000000000001 EUR

    1,91 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Capacitor: polyester; 4.7uF; 40VAC; 63VDC; Pitch: 15mm; ±10%

    Mounting THT
    Operating temperature -55...105°C
    Tolerance ±10%
    Terminal pitch 15mm
    Body dimensions 18x8.5x14.5mm
    Max. operating voltage 40V AC, 63V DC
    Capacitance 4.7µF
    Type of capacitor polyester
    Lead length 25mm
    Conform to the norm AEC-Q200
    Climate class 55/105/56, IEC60068-1
    Pulse resistance 2.5V/μs
