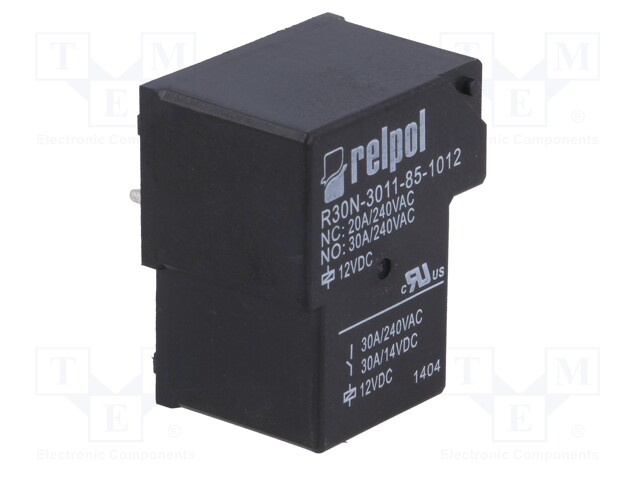

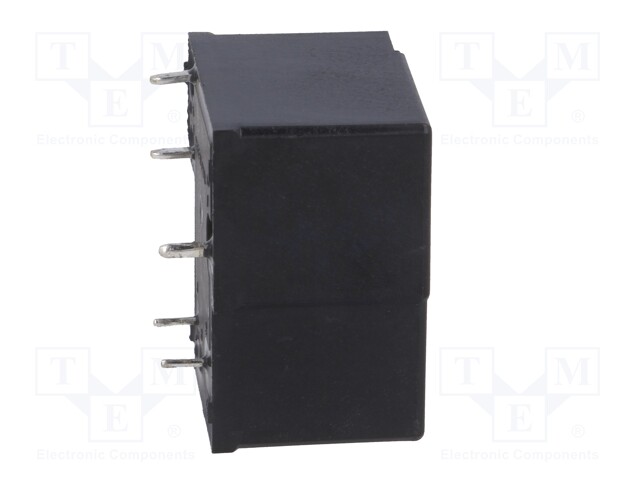

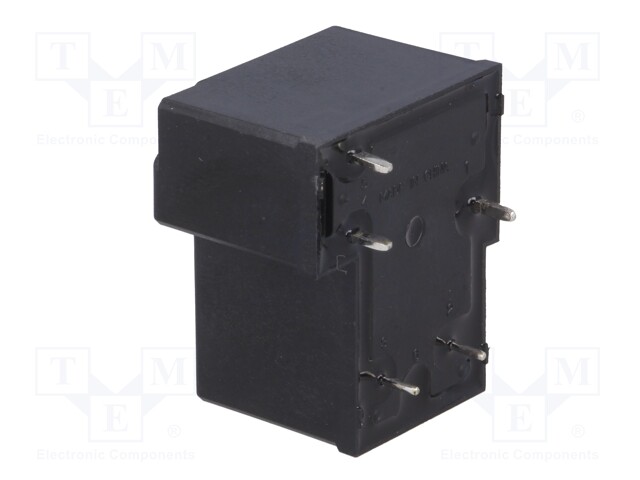

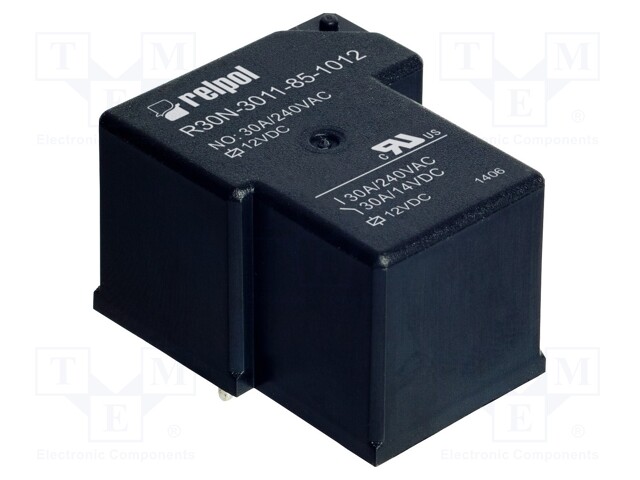

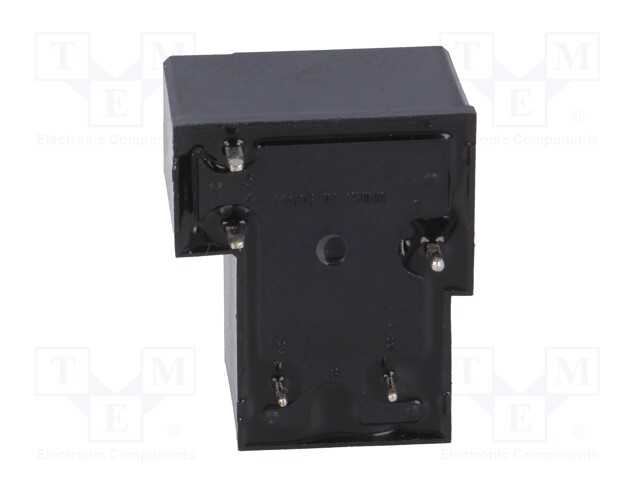

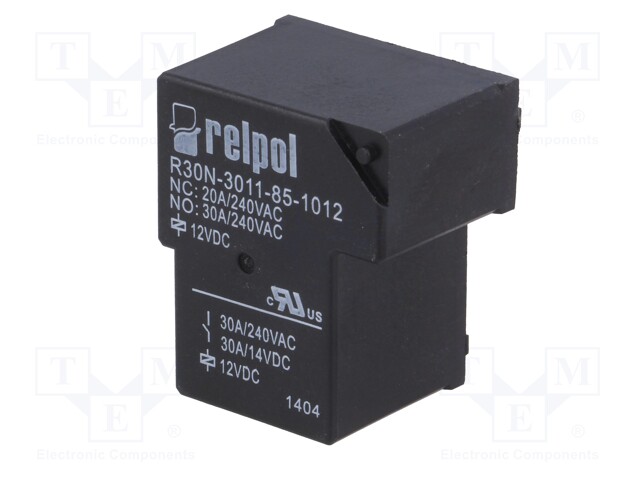

Relay: electromagnetic; SPDT; Ucoil: 12VDC; 30A; Series: R30N; 0.9W
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
R30N-3011-85-1012
Tootja: RELPOL
Tootja tootekood: R30N-3011-85-1012
Product downloads
Spetsifikatsioon tootele Relay: electromagnetic; SPDT; Ucoil: 12VDC; 30A; Series: R30N; 0.9W
Mounting | PCB |
Operating temperature | -55...100°C |
IP rating | IP64 |
Contact material | AgSnO<sub>2</sub> |
Body dimensions | 32.5x27.6x20.5mm |
Mechanical durability | 100000000cycles |
Switched voltage | ≤ 110V DC, ≤ 300V AC |
Electrical life | 1000000cycles |
Coil resistance | 160Ω |
Rated coil voltage | 12V DC |
Contacts configuration | SPDT |
DC contacts rating @R | 30A / 14V DC |
Contact resistance | 30mΩ |
AC contacts rating @R | 30A / 240V AC |
Contact current max. | 30A |
Relay variant | power |
Type of relay | electromagnetic |
Coil power consumption | 0.9W |
Relay series | R30N |
Operate time | 15ms |
Release time | 10ms |
OEM number | 2614723 |
