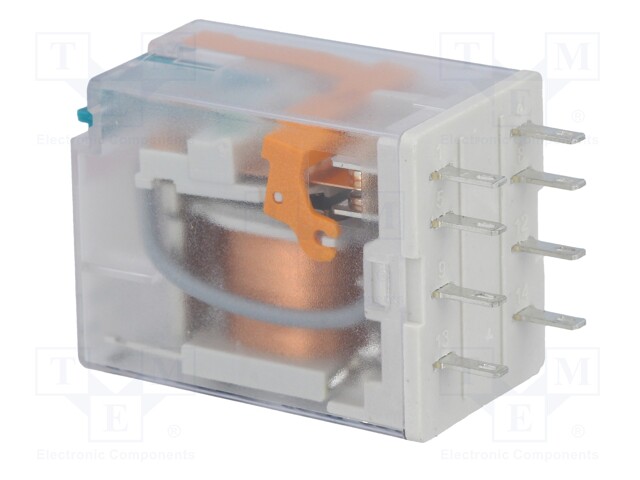

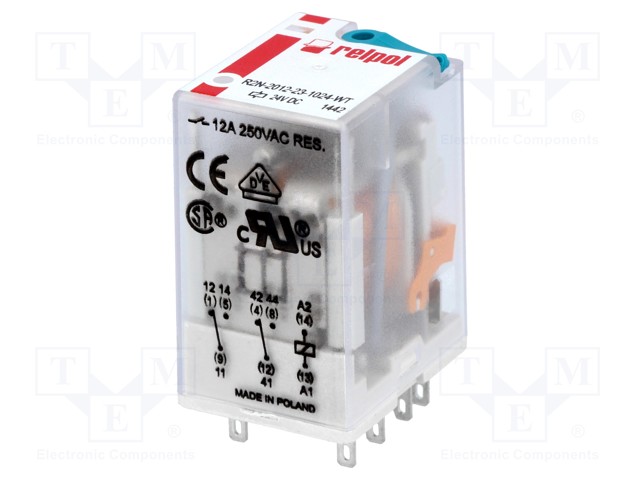

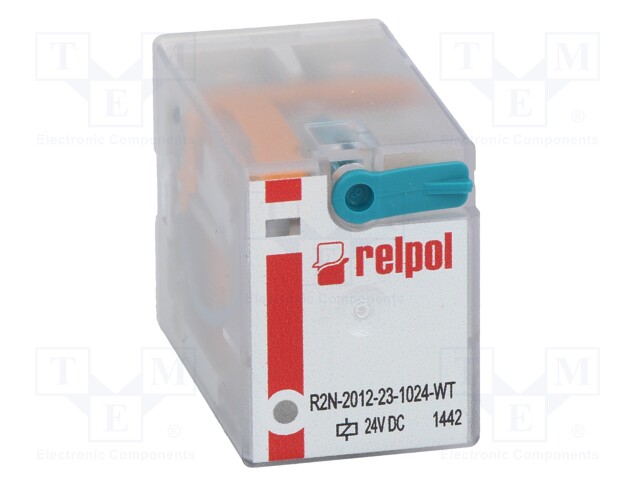

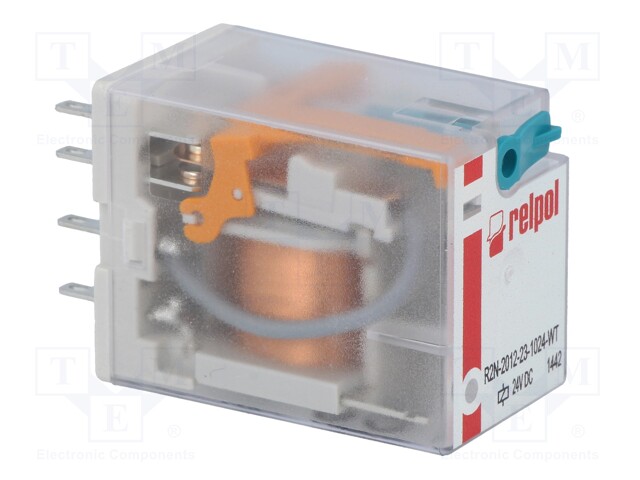

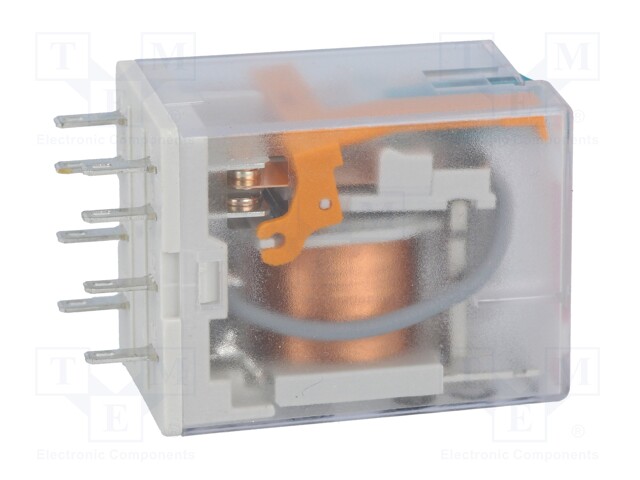

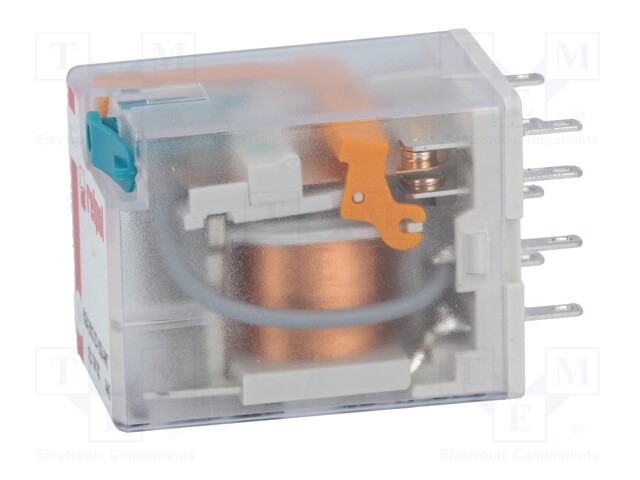

Relay: electromagnetic; DPDT; Ucoil: 24VDC; 12A/250VAC; 12A/24VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: R2N-2012-23-1024-WT
    Tootja: RELPOL
    Tootja tootekood: R2N-2012-23-1024-WT
    • Mounting
    • Operating temperature
    • IP rating
    • Leads
    • Number of pins
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Optional equipment
    • Optional equipment
    • OEM number

    10,53 € 10,53 € (KM-TA) 10.53 EUR

    10,53 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; DPDT; Ucoil: 24VDC; 12A/250VAC; 12A/24VDC

    Mounting socket
    Operating temperature -40...70°C
    IP rating IP40
    Leads 2,2x0,5mm connectors

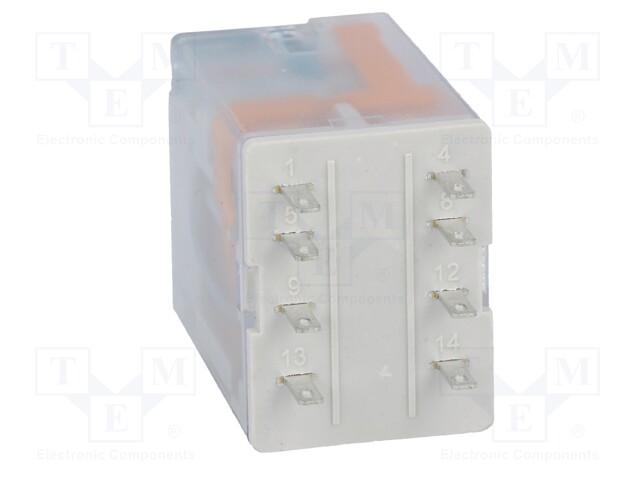

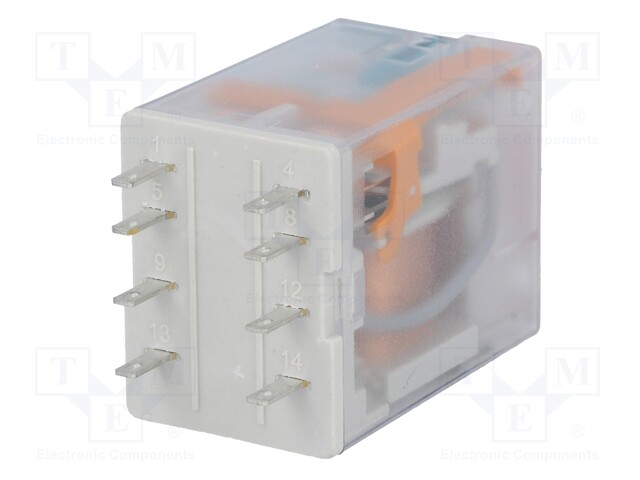

    Number of pins 8
    Body dimensions 27.5x21.2x35.6mm
    Switched voltage ≤ 250V DC, ≤ 440V AC
    Coil resistance 640Ω
    Rated coil voltage 24V DC
    Contacts configuration DPDT
    DC contacts rating @R 12A / 24V DC
    Contact resistance 100MΩ
    AC contacts rating @R 12A / 250V AC
    Contact current max. 24A
    Relay variant industrial
    Type of relay electromagnetic
    Coil power consumption 0.9W
    Optional equipment mechanical indicator, test button with blocking function
    OEM number 860396
