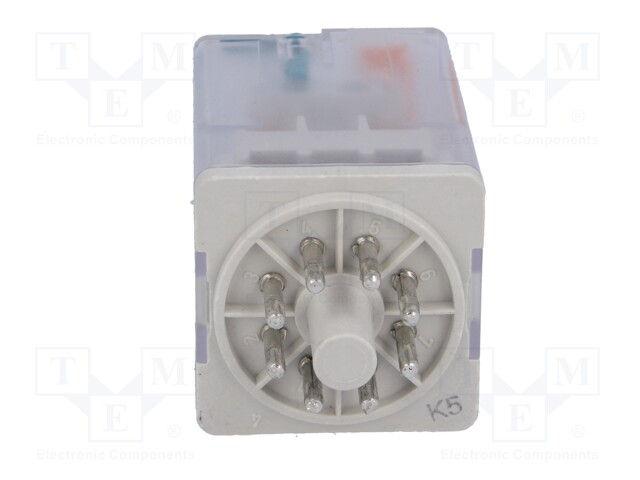

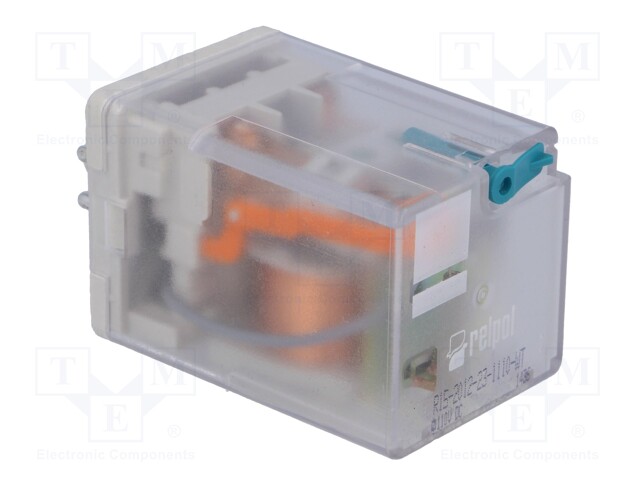

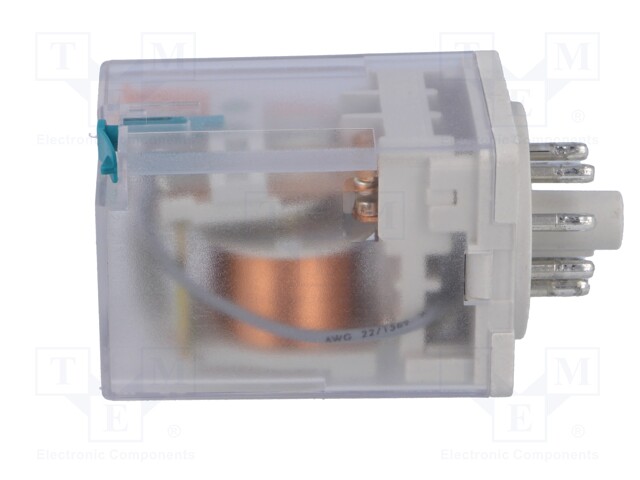

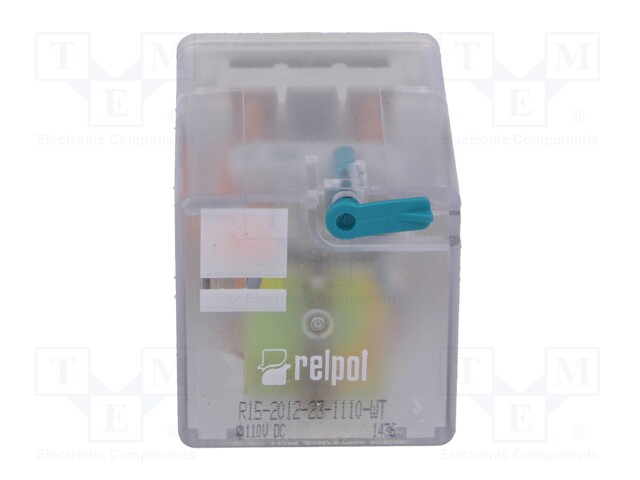

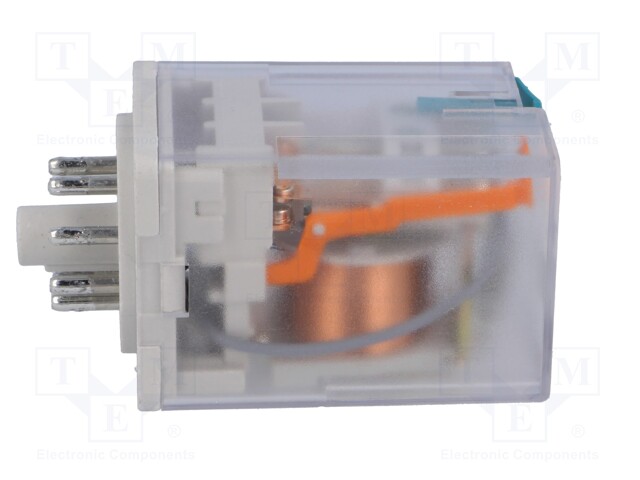

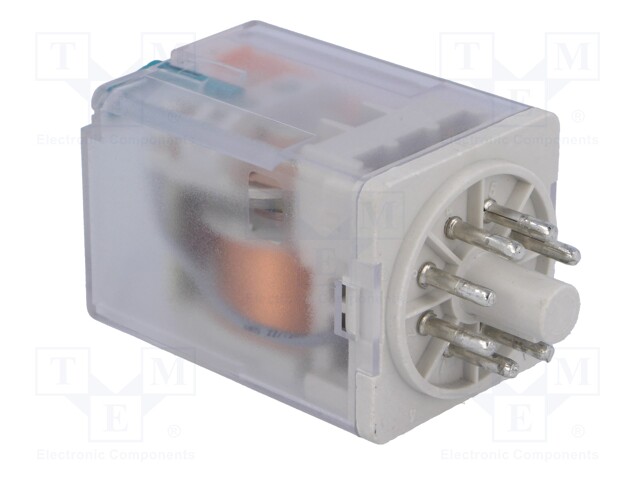

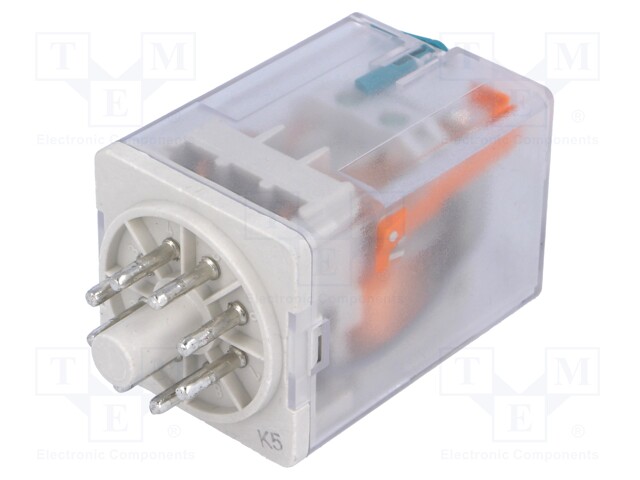

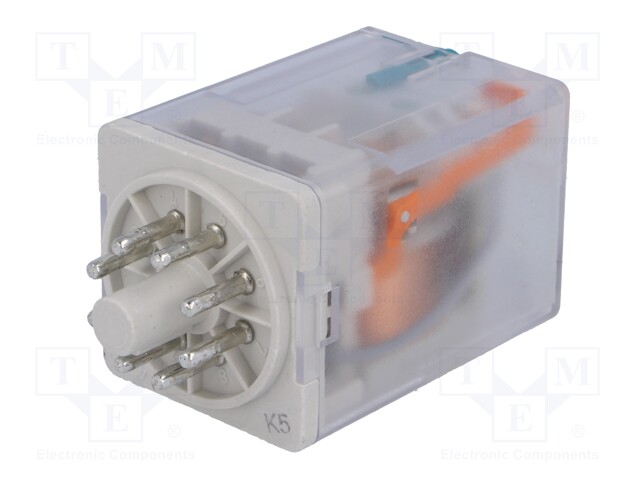

Relay: electromagnetic; DPDT; Ucoil: 110VDC; 10A/250VAC; 10A/24VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: R15-2012-23-1110-WT
    Tootja: RELPOL
    Tootja tootekood: R15-2012-23-1110-WT
    • Mounting
    • Operating temperature
    • Kind of connector
    • Leads
    • Number of pins
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Electrical connection
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Optional equipment
    • Optional equipment
    • OEM number

    16,59 € 16,59 € (KM-TA) 16.59 EUR

    16,59 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; DPDT; Ucoil: 110VDC; 10A/250VAC; 10A/24VDC

    Mounting socket
    Operating temperature -40...70°C
    Kind of connector octal
    Leads stud terminals
    Number of pins 8
    Body dimensions 35x35x54.5mm
    Switched voltage ≤ 250V DC, ≤ 440V AC
    Electrical connection round socket
    Coil resistance 9.2kΩ
    Rated coil voltage 110V DC
    Contacts configuration DPDT
    DC contacts rating @R 10A / 24V DC
    Contact resistance 100MΩ
    AC contacts rating @R 10A / 250V AC
    Contact current max. 20A
    Relay variant industrial
    Type of relay electromagnetic
    Coil power consumption 1.5W
    Optional equipment mechanical indicator, test button with blocking function
    OEM number 802894
