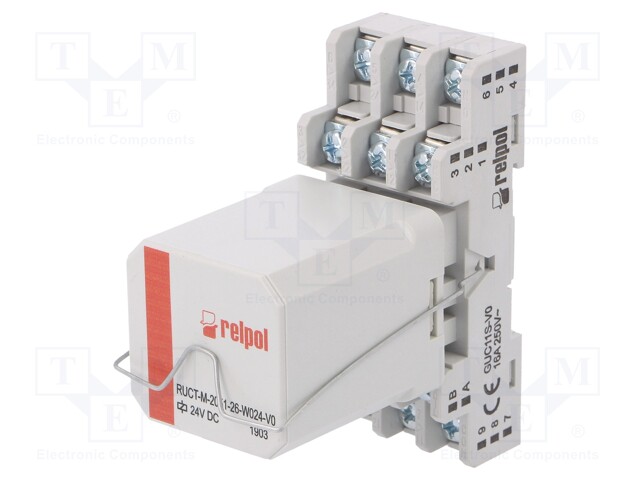

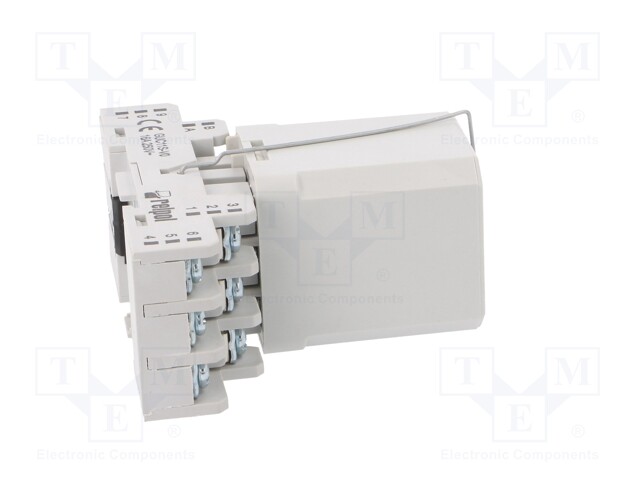

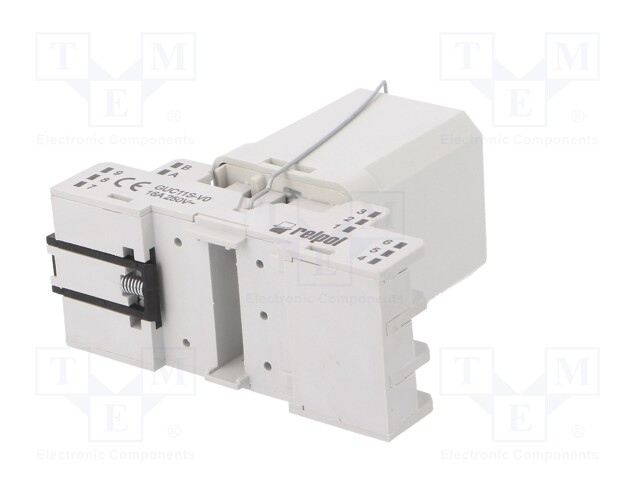

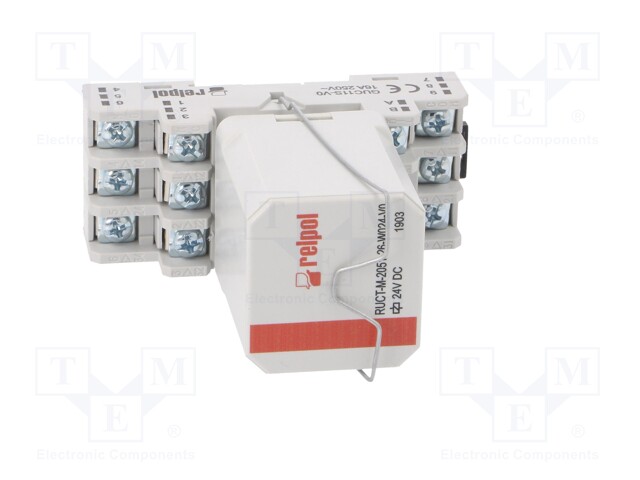

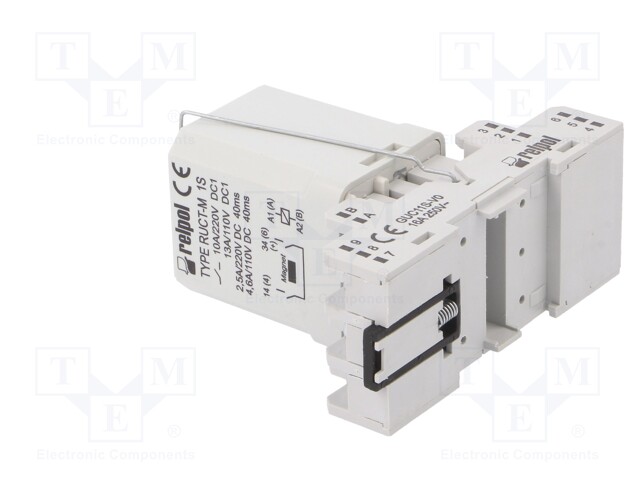

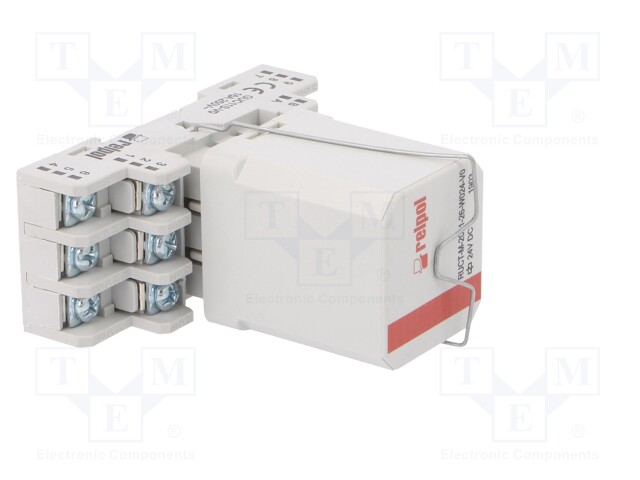

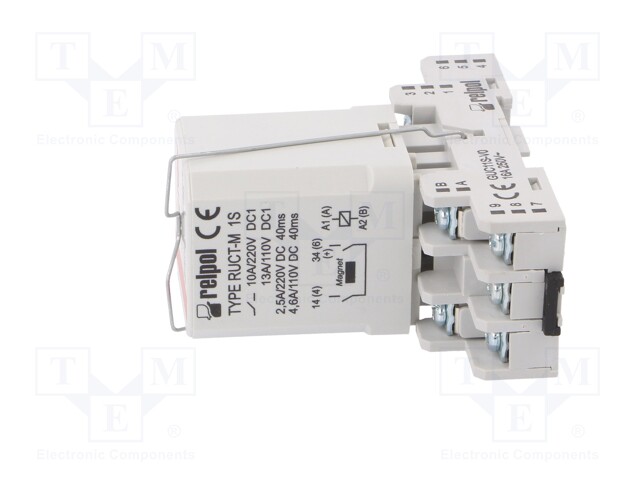

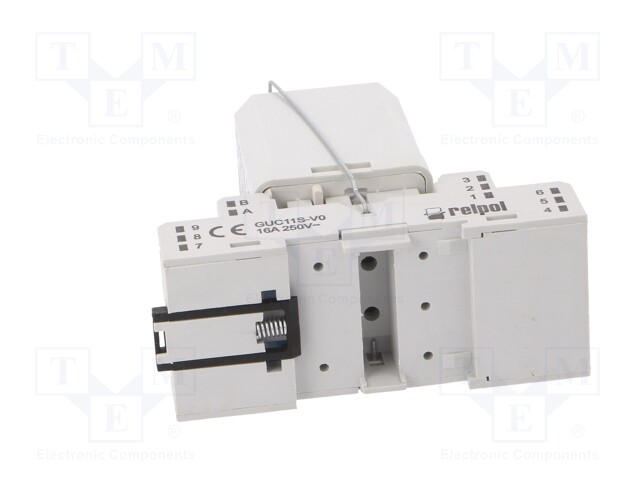

Relay: interface; SPST-NO; Ucoil: 24VDC; 16A; 16A/250VAC; 16A/24VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: PRUCT-M-2051-26-W024-V0
    Tootja: RELPOL
    Tootja tootekood: PRUCT-M-2051-26-W024-V0
    • Mounting
    • Max. operating current
    • Operating temperature
    • Leads
    • Contact material
    • Flammability rating
    • Body dimensions
    • Kit contents
    • Kit contents
    • Kit contents
    • Switched voltage
    • Switched voltage
    • Switching capacity
    • Conform to the norm
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Relay variant
    • Type of relay
    • Relay series
    • Operate time
    • Release time
    • OEM number

    68,78 € 68,78 € (KM-TA) 68.78 EUR

    68,78 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: interface; SPST-NO; Ucoil: 24VDC; 16A; 16A/250VAC; 16A/24VDC

    Mounting for DIN rail mounting
    Max. operating current 16A
    Operating temperature -40...55°C
    Leads screw terminals
    Contact material AgNi
    Flammability rating UL94V-0
    Body dimensions 41.5x77.3x84.5mm
    Kit contents ejector, RUCT-M relay, socket
    Switched voltage ≤ 250V AC, ≤ 250V DC
    Switching capacity 2.5kVA
    Conform to the norm EN 50155
    Rated coil voltage 24V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 16A / 24V DC
    Contact resistance 100MΩ
    AC contacts rating @R 16A / 250V AC
    Relay variant Relay set
    Type of relay interface
    Relay series PRUCT-M
    Operate time 20ms
    Release time 15ms
    OEM number 862281
