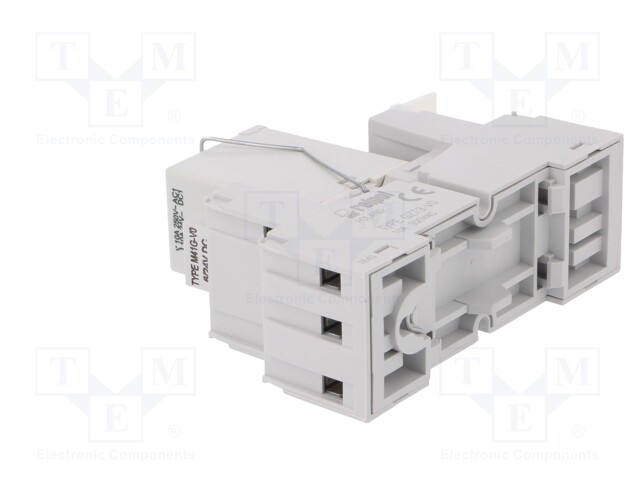

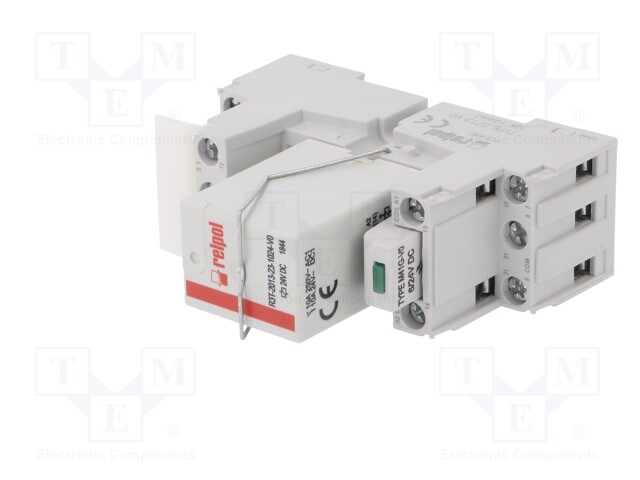

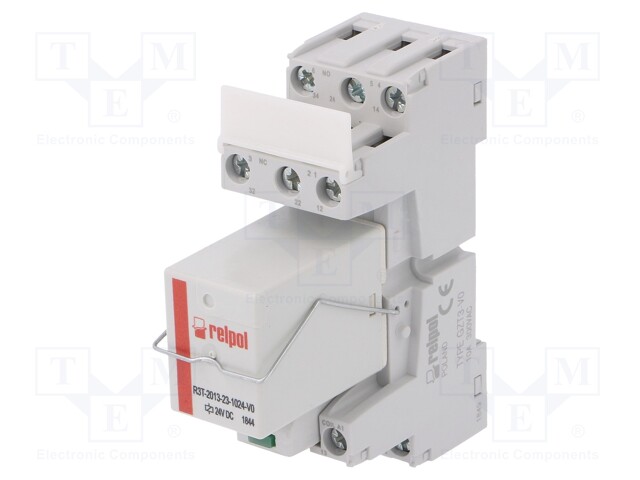

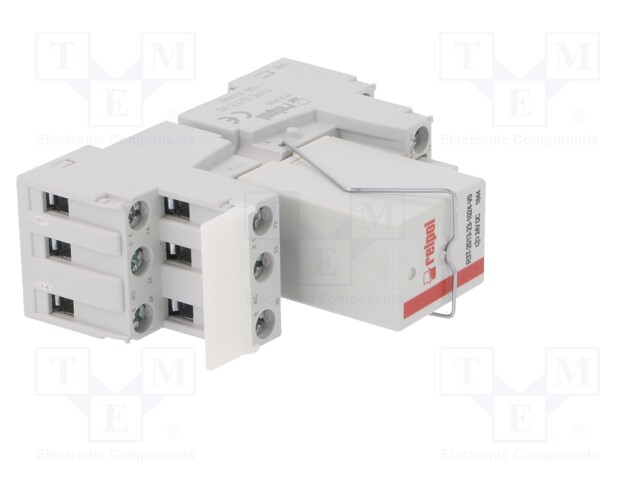

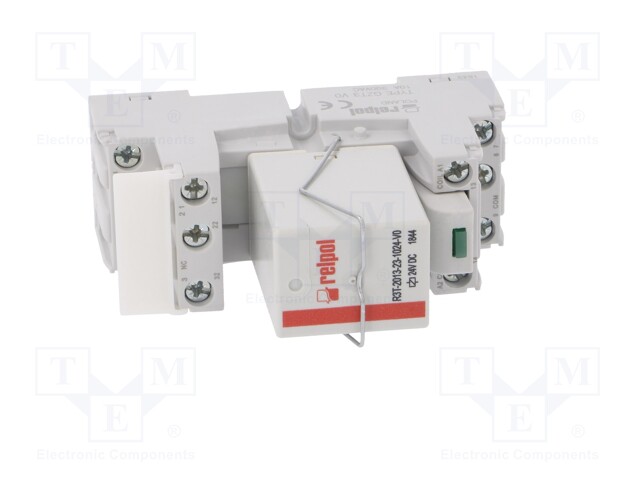

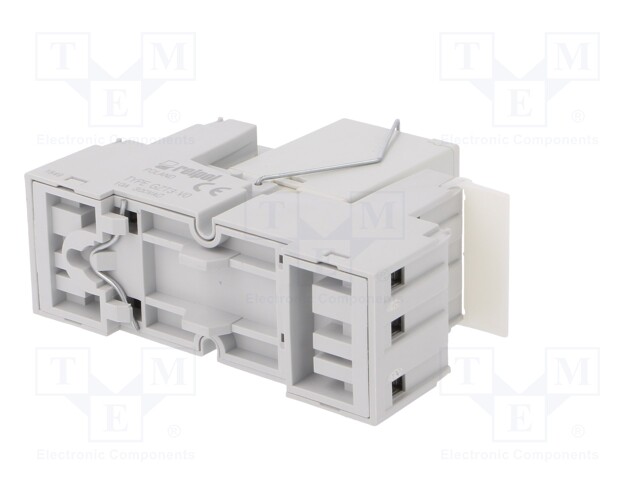

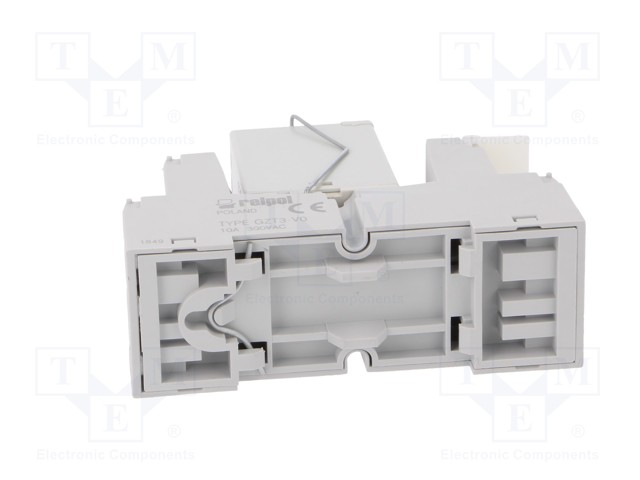

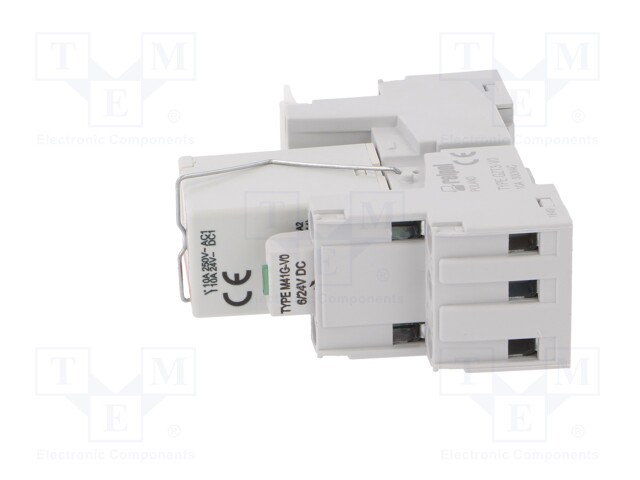

Relay: interface; 3PDT; Ucoil: 24VDC; 10A; 10A/250VAC; 10A/24VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: PIR3T-024DC-M41G-V0
    Tootja: RELPOL
    Tootja tootekood: PIR3T-024DC-M41G-V0
    • Mounting
    • Max. operating current
    • Operating temperature
    • Leads
    • Contact material
    • Flammability rating
    • Body dimensions
    • Kit contents
    • Kit contents
    • Kit contents
    • Kit contents
    • Kit contents
    • Switched voltage
    • Switched voltage
    • Switching capacity
    • Conform to the norm
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Relay variant
    • Type of relay
    • Relay series
    • Operate time
    • Release time
    • OEM number

    30,56 € 30,56 € (KM-TA) 30.560000000000002 EUR

    30,56 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: interface; 3PDT; Ucoil: 24VDC; 10A; 10A/250VAC; 10A/24VDC

    Mounting for DIN rail mounting
    Max. operating current 10A
    Operating temperature -40...55°C
    Leads screw terminals
    Contact material AgNi
    Flammability rating UL94V-0
    Body dimensions 27x65x76.3mm
    Kit contents ejector, indication module, R3T relay, RM85 relay, socket
    Switched voltage ≤ 300V AC, ≤ 300V DC
    Switching capacity 2.5kVA
    Conform to the norm EN 50155
    Rated coil voltage 24V DC
    Contacts configuration 3PDT
    DC contacts rating @R 10A / 24V DC
    Contact resistance 100MΩ
    AC contacts rating @R 10A / 250V AC
    Relay variant Relay set
    Type of relay interface
    Relay series PIR3T
    Operate time 13ms
    Release time 3ms
    OEM number 862560
