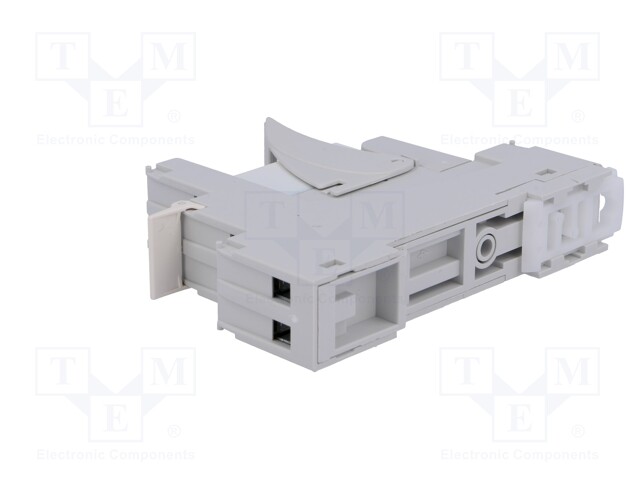

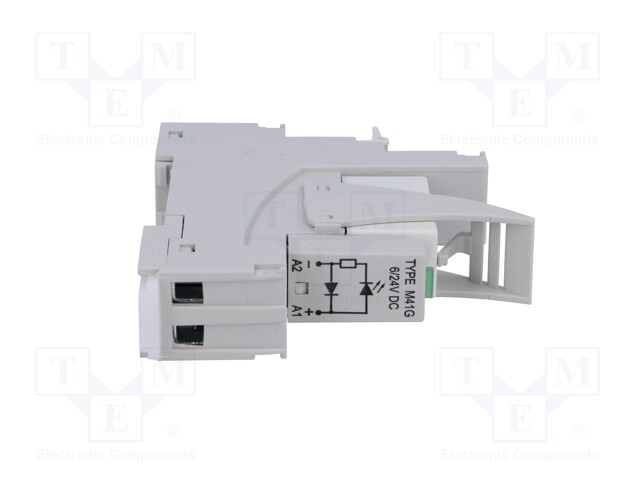

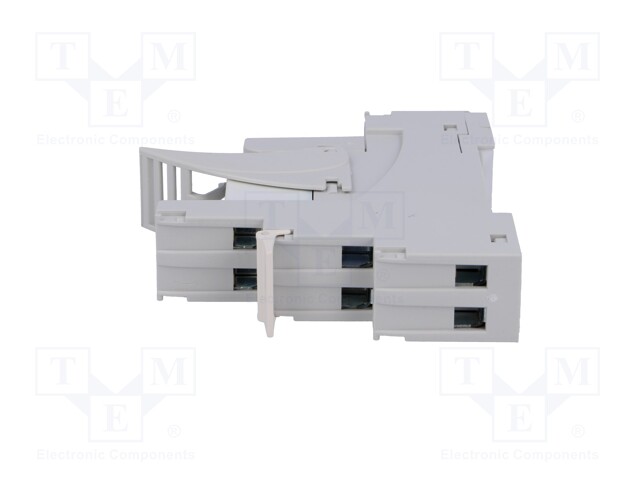

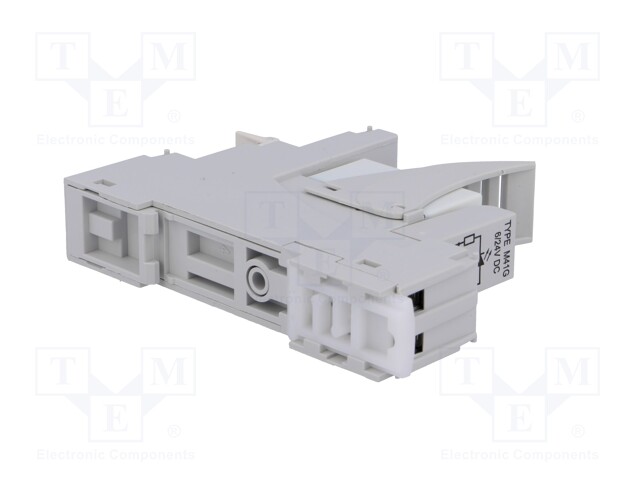

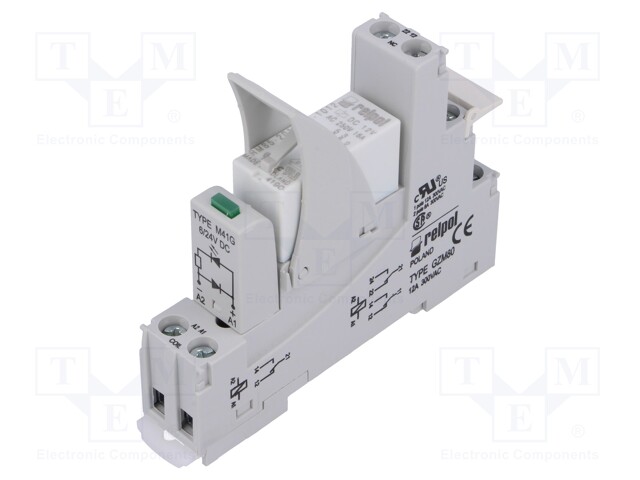

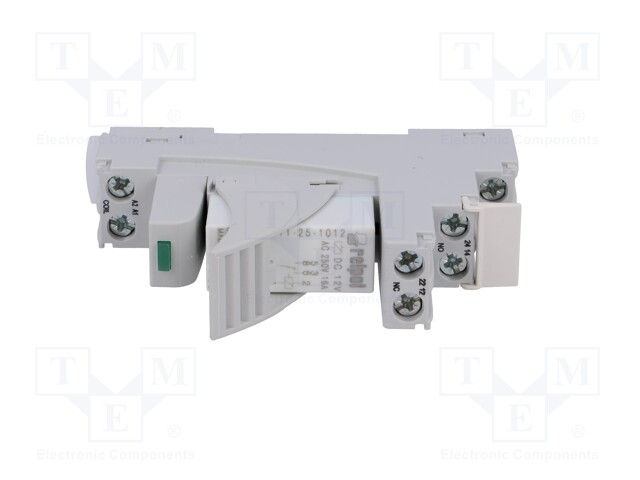

Relay: interface; SPDT; Ucoil: 12VDC; 16A; 16A/250VAC; 16A/24VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: PI85-012DC-00LD
    Tootja: RELPOL
    Tootja tootekood: PI85-012DC-00LD
    • Mounting
    • Mounting
    • Max. operating current
    • Operating temperature
    • Leads
    • Contact material
    • Body dimensions
    • Kit contents
    • Kit contents
    • Kit contents
    • Kit contents
    • Kit contents
    • Switched voltage
    • Switched voltage
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Relay series
    • Operate time
    • Release time
    • OEM number

    17,15 € 17,15 € (KM-TA) 17.150000000000002 EUR

    17,15 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: interface; SPDT; Ucoil: 12VDC; 16A; 16A/250VAC; 16A/24VDC

    Mounting on panel, for DIN rail mounting
    Max. operating current 16A
    Operating temperature -40...85°C
    Leads screw terminals
    Contact material AgNi

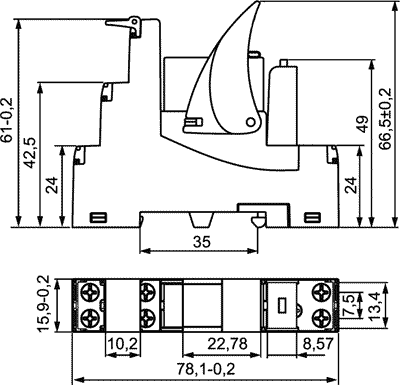

    Body dimensions 78.1x15.9x66.5mm
    Kit contents ejector, indication module, label, RM85 relay, socket
    Switched voltage ≤ 300V DC, ≤ 400V AC
    Rated coil voltage 12V DC
    Contacts configuration SPDT
    DC contacts rating @R 16A / 24V DC
    Contact resistance 100MΩ
    AC contacts rating @R 16A / 250V AC
    Relay variant Relay set
    Type of relay interface
    Coil power consumption 480mW
    Relay series PI85
    Operate time 7ms
    Release time 3ms
    OEM number 854916
