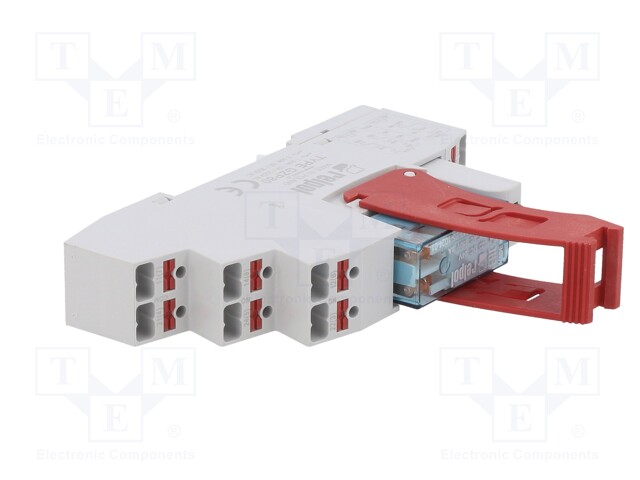

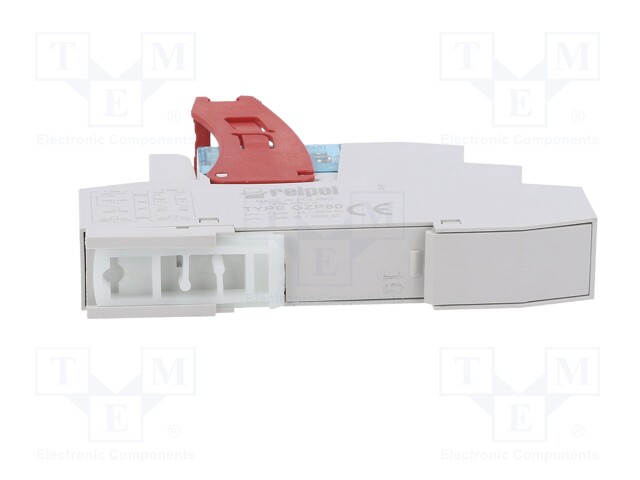

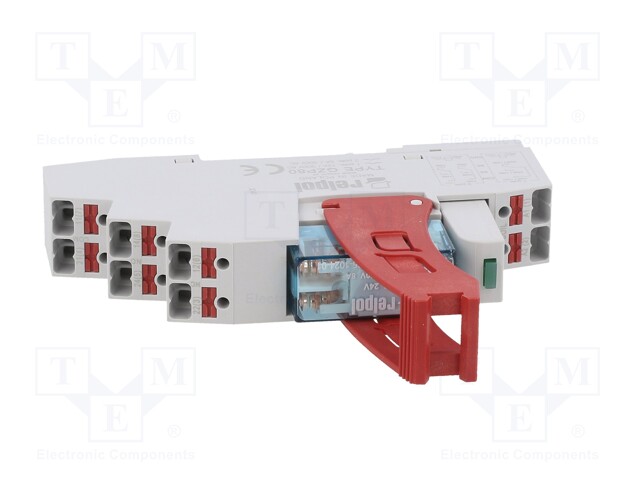

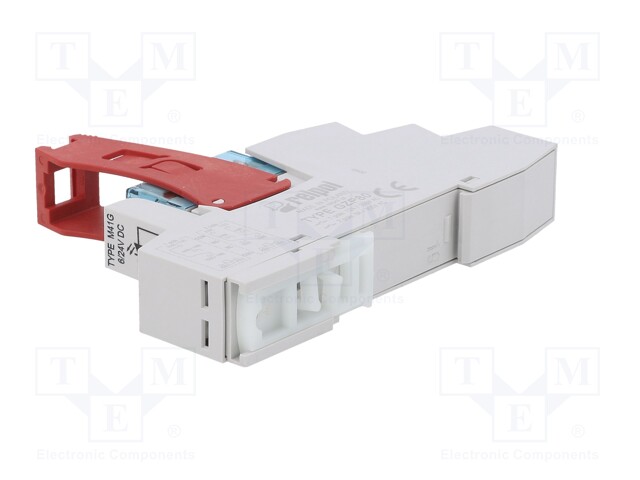

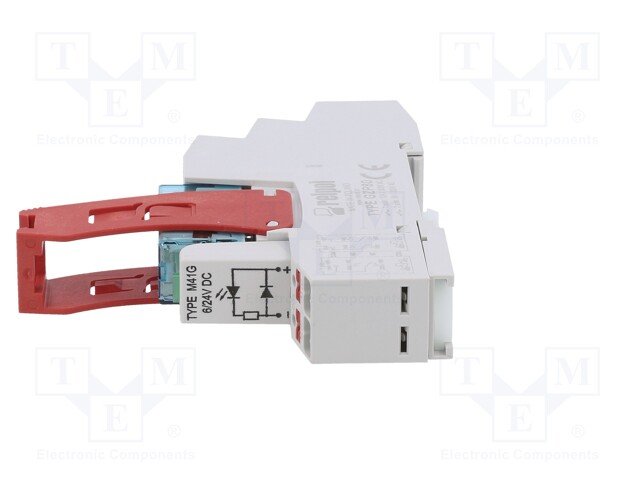

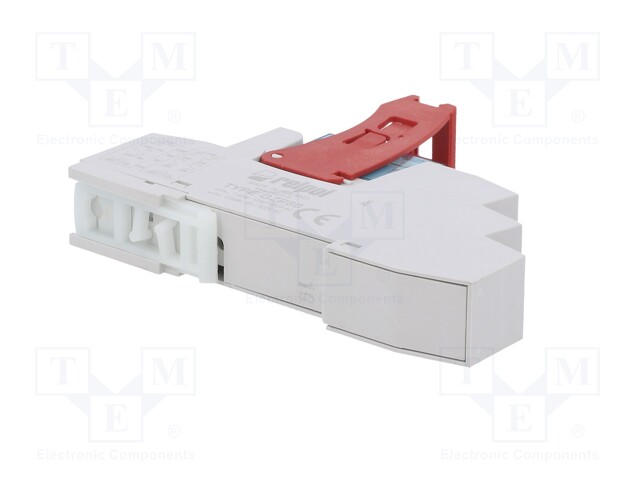

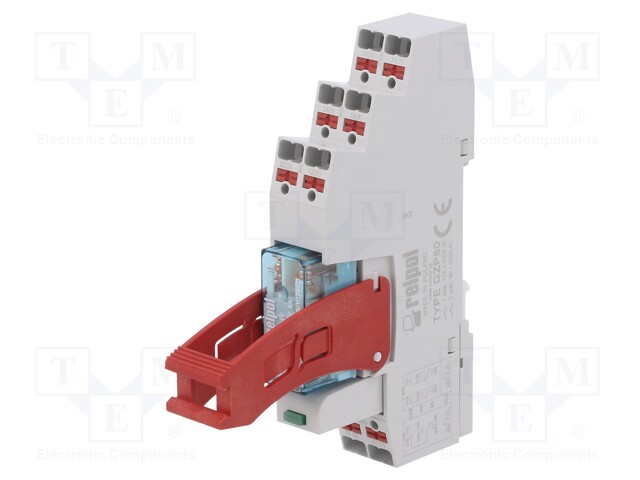

Relay: interface; Ucoil: 24VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: PI84-024DC-M41G-PS-2012-01
    Tootja: RELPOL
    Tootja tootekood: PI84-024DC-M41G-PS-2012-01
    • Mounting
    • Mounting
    • Max. operating current
    • Operating temperature
    • Leads
    • Contact material
    • Kit contents
    • Kit contents
    • Kit contents
    • Kit contents
    • Kit contents
    • Switched voltage
    • Switched voltage
    • Switching capacity
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Relay variant
    • Type of relay
    • Relay series
    • Operate time
    • Release time

    16,97 € 16,97 € (KM-TA) 16.97 EUR

    16,97 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: interface; Ucoil: 24VDC

    Mounting on panel, for DIN rail mounting
    Max. operating current 8A
    Operating temperature -40...70°C
    Leads spring clamps
    Contact material AgNi
    Kit contents ejector, socket, indication module, label, RM84 relay
    Switched voltage ≤ 250V AC, ≤ 300V DC
    Switching capacity 2kVA
    Rated coil voltage 24V DC
    Contacts configuration DPDT
    DC contacts rating @R 8A / 24V DC
    Contact resistance 100MΩ
    AC contacts rating @R 8A / 250V AC
    Relay variant Relay set
    Type of relay interface
    Relay series PI84
    Operate time 7ms
    Release time 3ms
