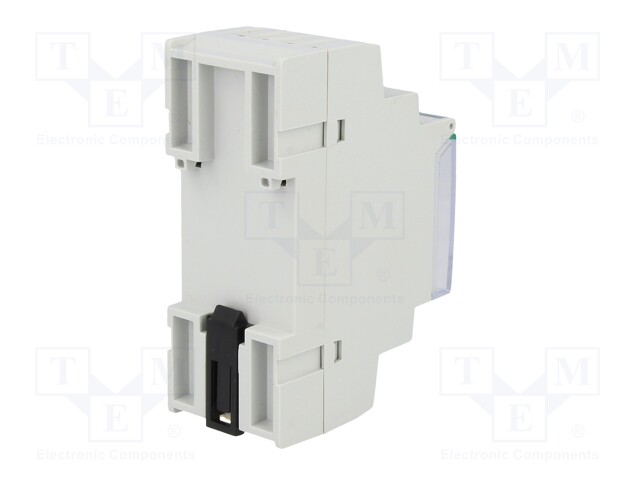

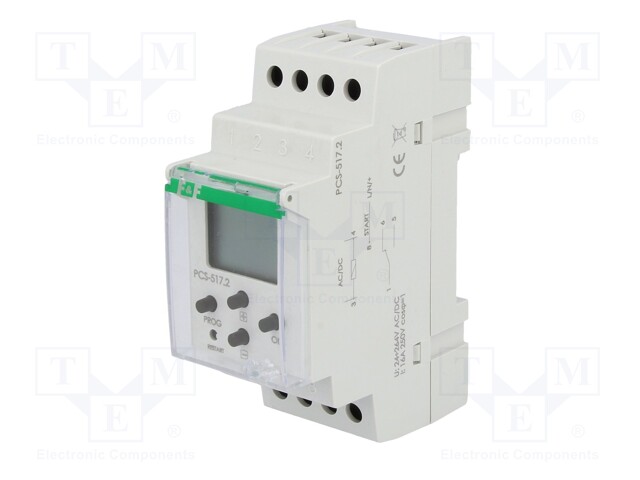

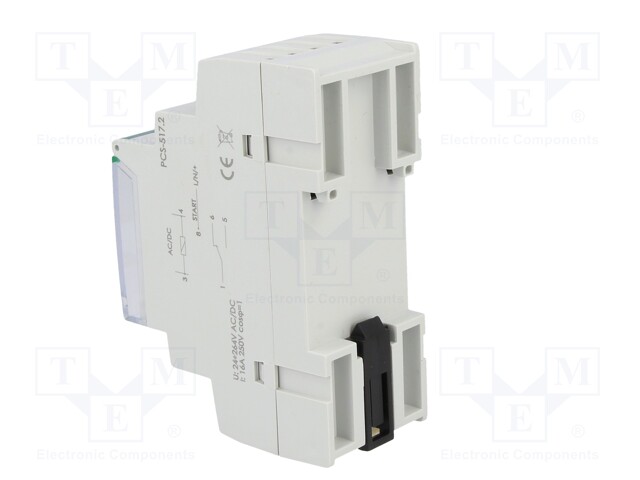

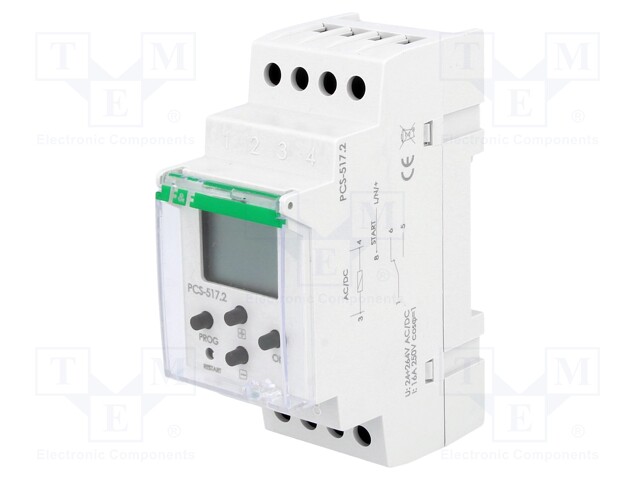

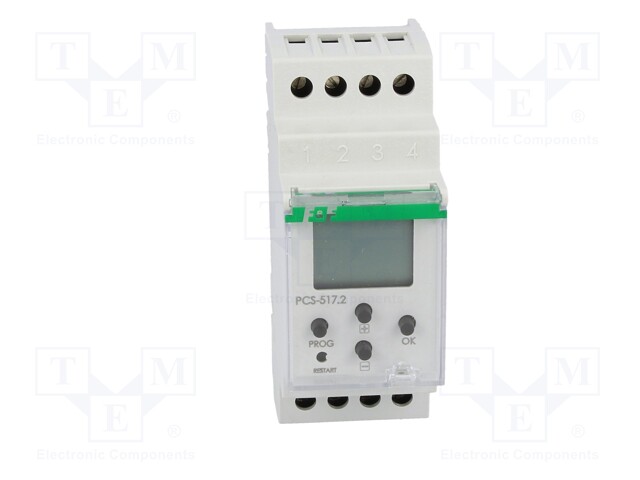

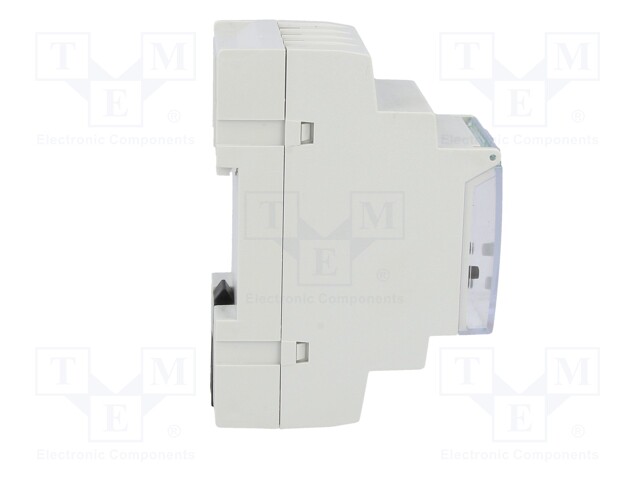

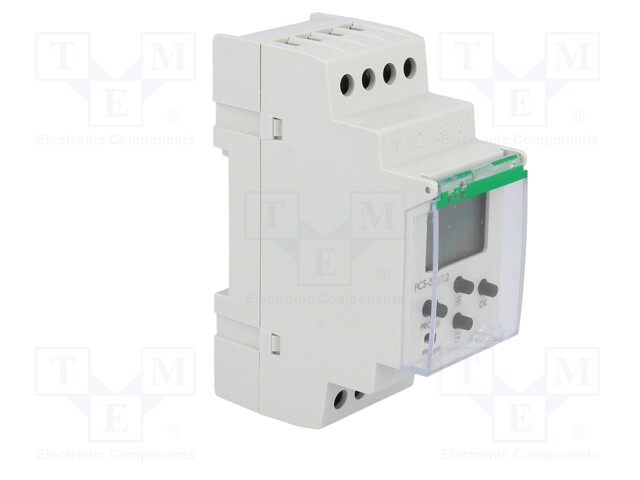

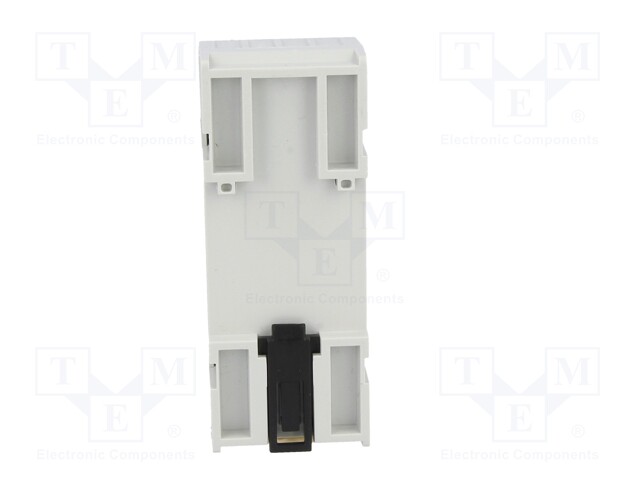

Timer; Range: 0,25s÷99h59min59s; SPDT; 24÷264VAC; 24÷264VDC; DIN
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
PCS-517
Tootja: F&F
Tootja tootekood: PCS-517
Product downloads
Spetsifikatsioon tootele Timer; Range: 0,25s÷99h59min59s; SPDT; 24÷264VAC; 24÷264VDC; DIN
| Mounting | for DIN rail mounting |
| Supply voltage | 24...264V AC, 24...264V DC |
| Operating temperature | -25...50°C |
| IP rating | IP20 |
| Number of pins | 11 |
| Type of module | timer |
| Kind of display used | LCD |
| Kind of output | SPDT |
| Indication | LED |
| Electrical connection | screw terminals |
| Counting range | 0,25s...99h59min59s |

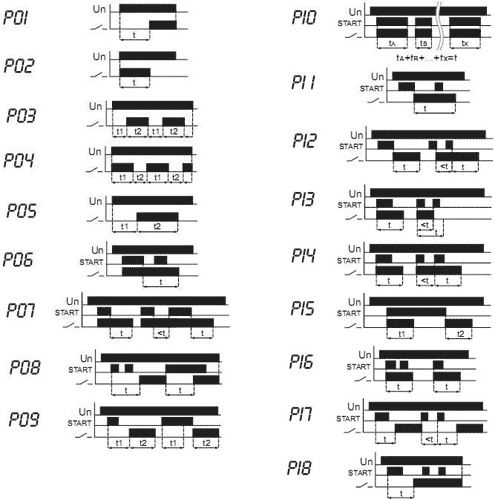

| Counter operation modes | cyclical operation with two independent times T1 and T2, pause first, cyclical operation with two independent times T1 and T2, pulse first, delayed switching on, ON and OFF delay, ON for the set interval, with the control contact S |
| number of operation modes | 18 |
| The additional control inputs | START |
