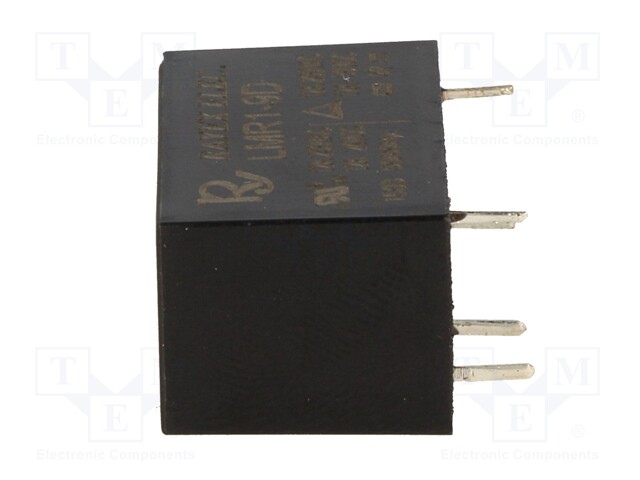

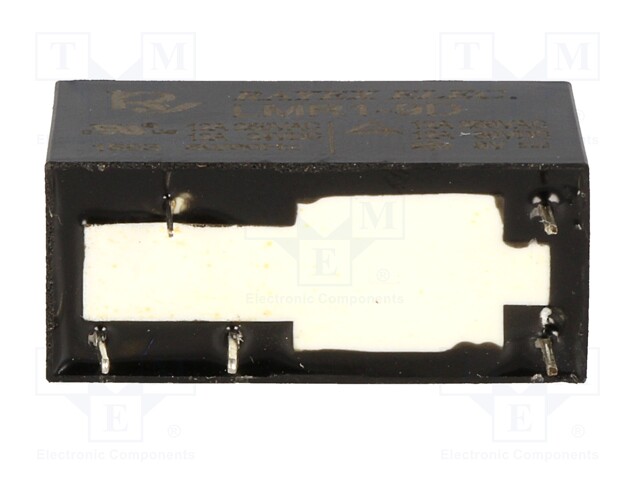

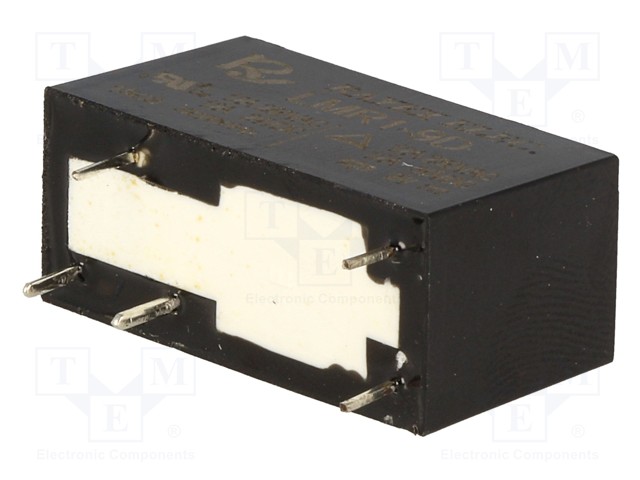

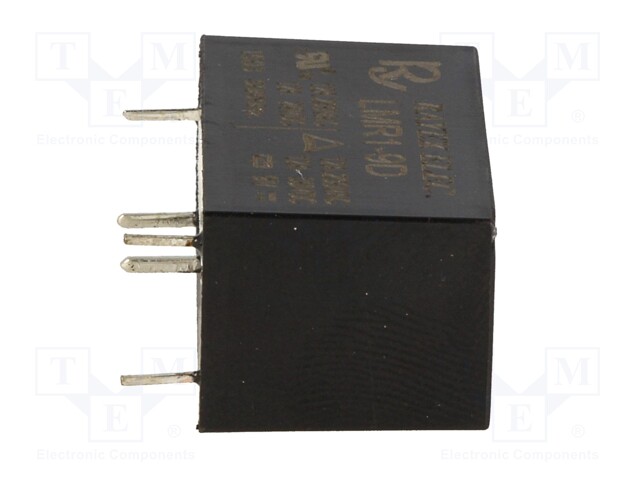

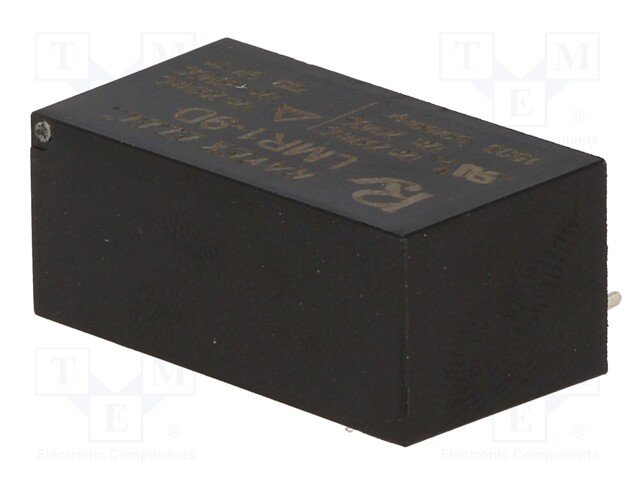

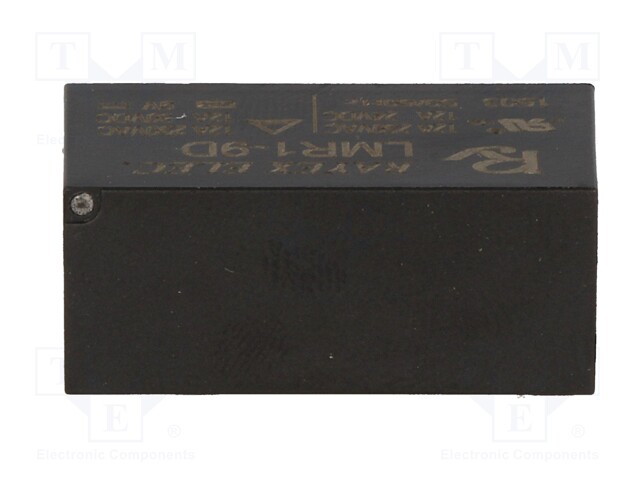

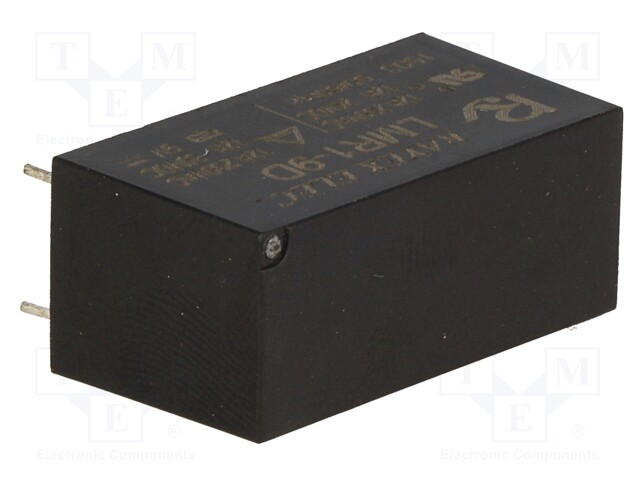

Relay: electromagnetic; SPDT; Ucoil: 9VDC; 12A/250VAC; 12A/30VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: LMR1-9D
    Tootja: RAYEX ELECTRONICS
    Tootja tootekood: LMR1-9D
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Relay series
    • Operate time
    • Release time

    2,79 € 2,79 € (KM-TA) 2.79 EUR

    2,79 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPDT; Ucoil: 9VDC; 12A/250VAC; 12A/30VDC

    Mounting PCB
    Operating temperature -40...80°C
    Contact material AgCdO
    Terminal pitch 3.5mm
    Body dimensions 29x12.5x15.5mm
    Switched voltage ≤ 30V DC, ≤ 250V AC
    Coil resistance 155Ω
    Rated coil voltage 9V DC
    Contacts configuration SPDT
    DC contacts rating @R 12A / 30V DC
    Contact resistance 100MΩ
    AC contacts rating @R 12A / 250V AC
    Contact current max. 12A
    Relay variant miniature
    Type of relay electromagnetic
    Coil power consumption 530mW
    Relay series LMR1
    Operate time 15ms
    Release time 10ms
