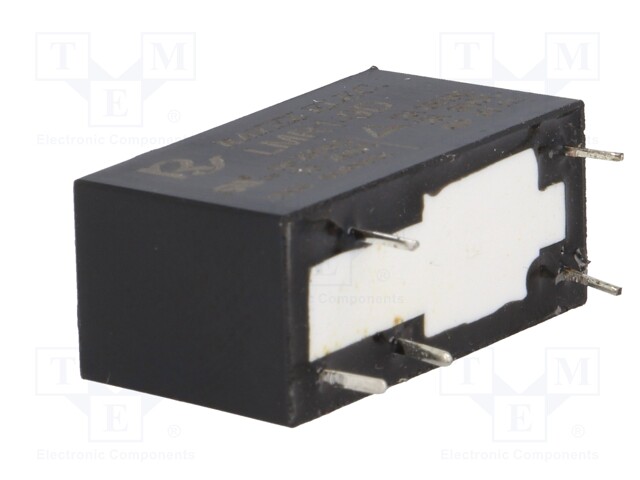

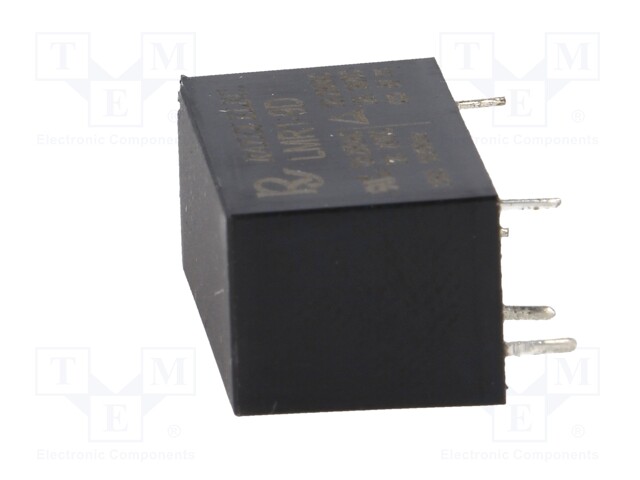

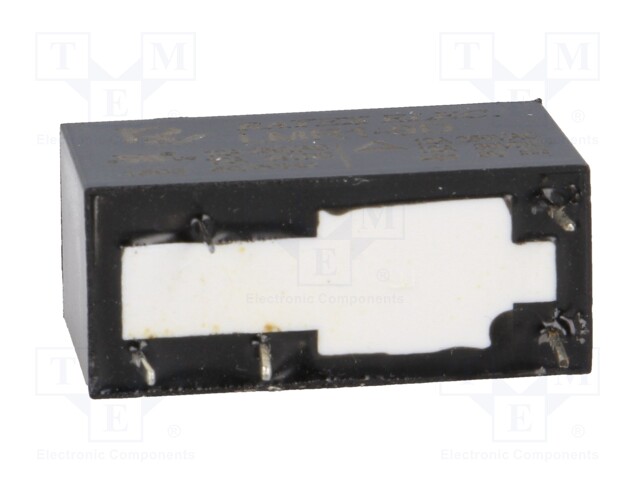

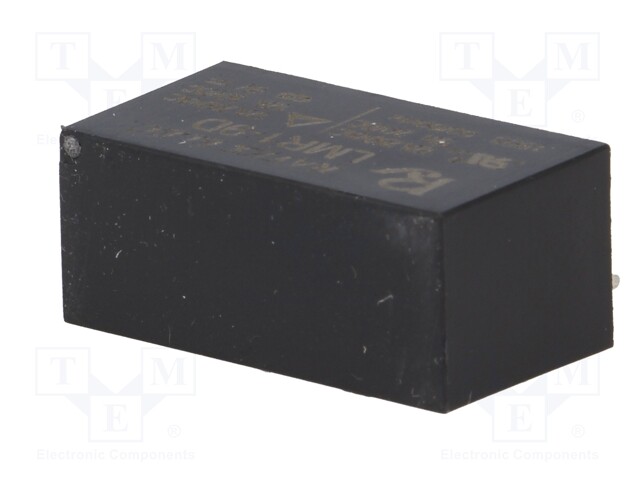

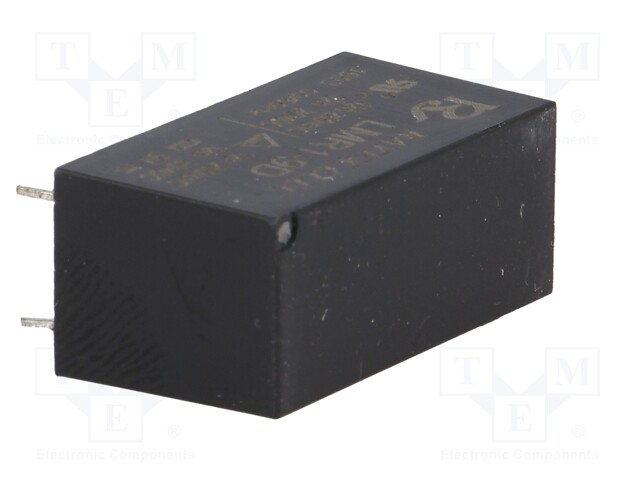

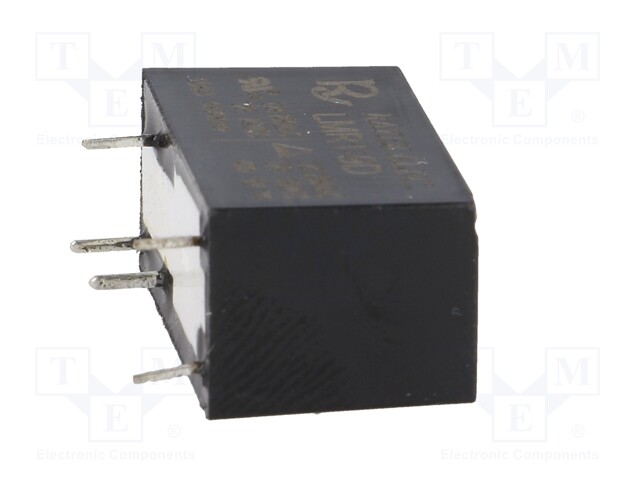

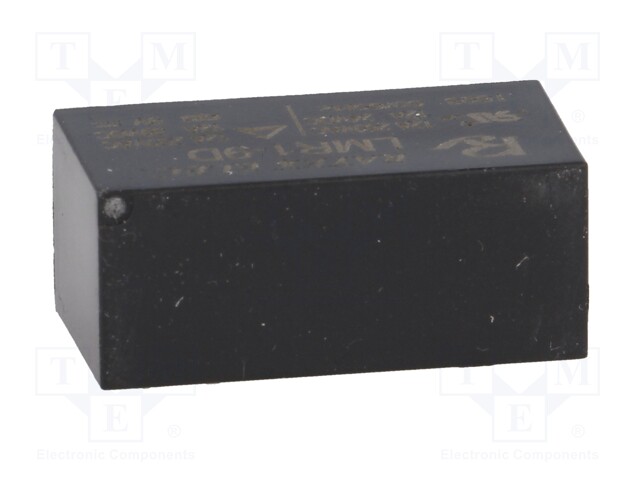

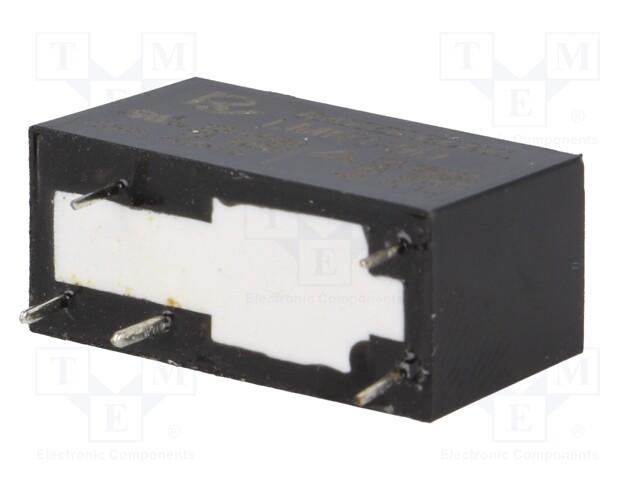

Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 16A/250VAC; 530mW

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: LM1HA-12D
    Tootja: RAYEX ELECTRONICS
    Tootja tootekood: LM1HA-12D
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Relay series
    • Operate time
    • Release time
    • Coil current

    1,68 € 1,68 € (KM-TA) 1.68 EUR

    1,68 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 16A/250VAC; 530mW

    Mounting PCB
    Operating temperature -40...80°C
    Contact material AgCdO
    Terminal pitch 5mm
    Body dimensions 29x20.5x12.5mm
    Switched voltage ≤ 30V DC, ≤ 250V AC
    Coil resistance 270Ω
    Rated coil voltage 12V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 16A / 30V DC
    Contact resistance 100MΩ
    AC contacts rating @R 16A / 250V AC
    Contact current max. 16A
    Relay variant miniature
    Type of relay electromagnetic
    Coil power consumption 530mW
    Relay series LM1H
    Operate time 15ms
    Release time 10ms
    Coil current 44.4mA
