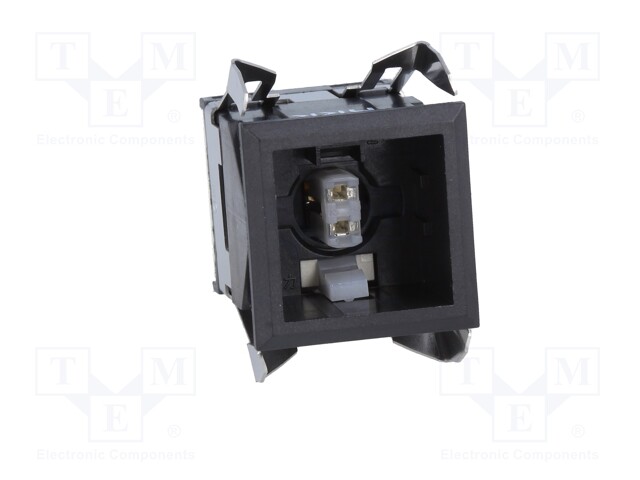

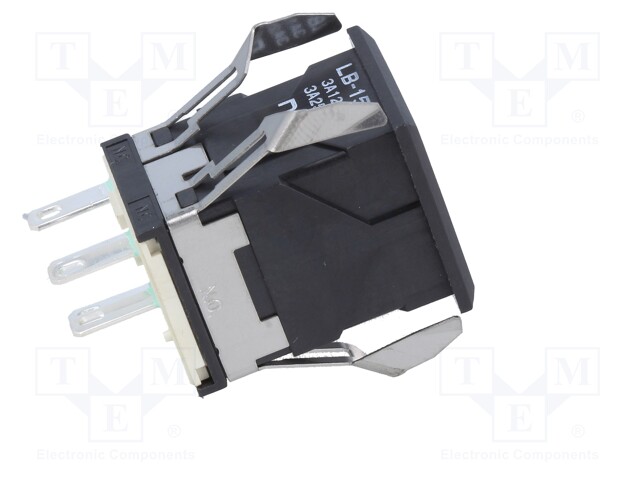

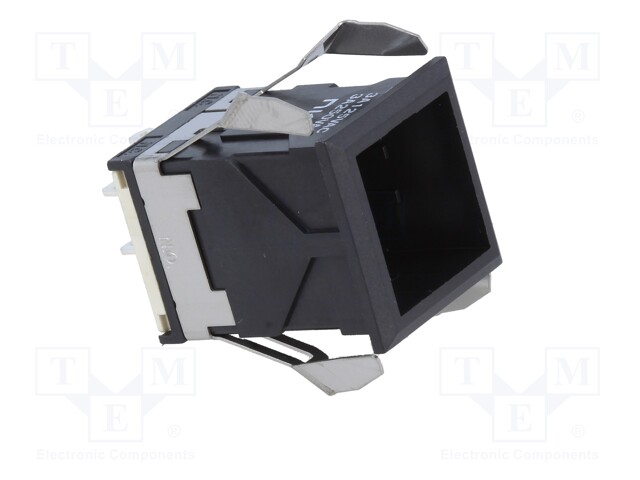

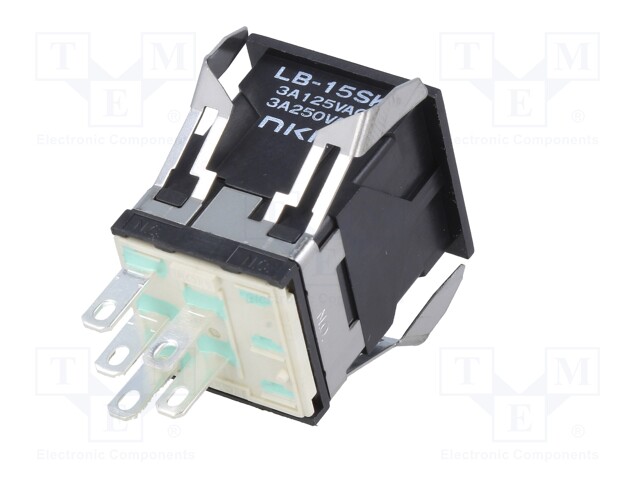

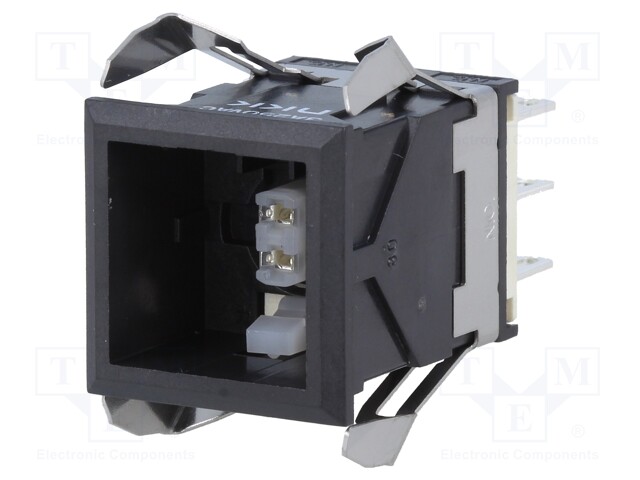

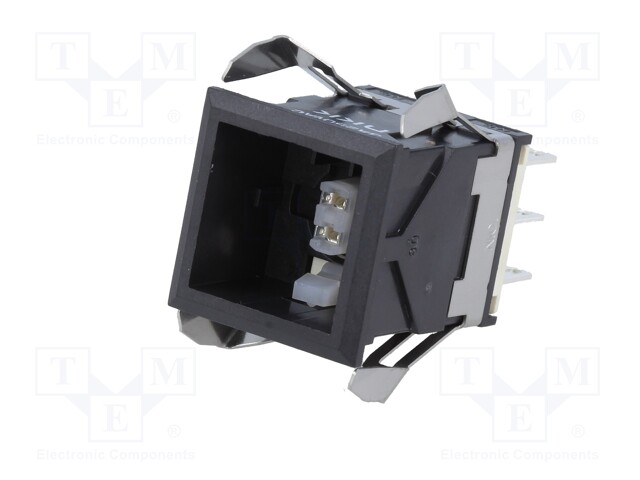

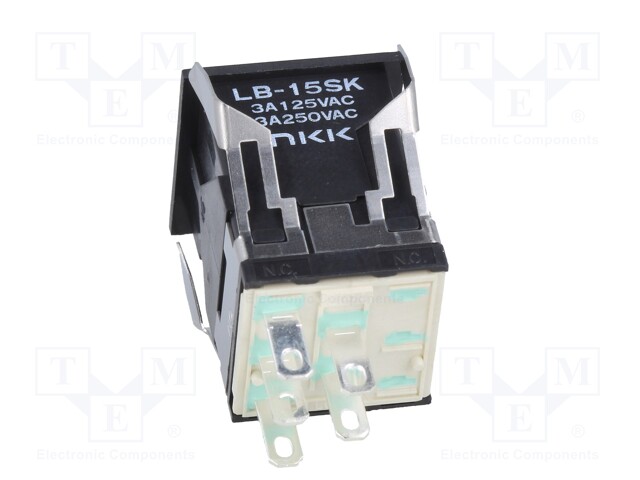

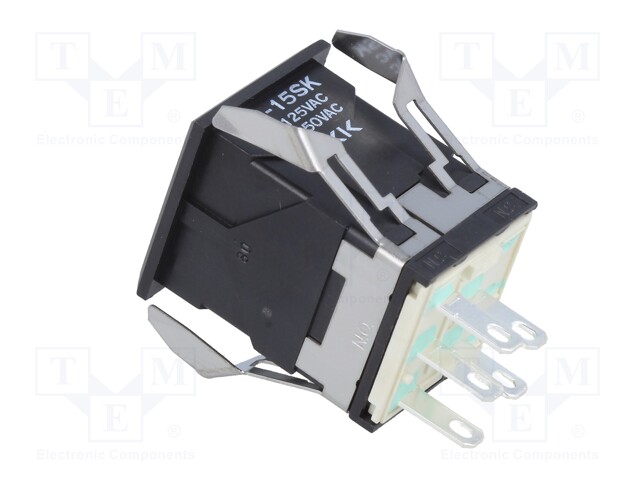

Switch: push-button; Pos: 2; SPDT; 3A/250VAC; 3A/30VDC; ON-(ON)

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: LB15SKW01
    Tootja: NKK SWITCHES
    Tootja tootekood: LB15SKW01
    • Mounting
    • Mounting
    • Operating temperature
    • IP rating
    • Type of switch
    • Number of positions
    • Leads
    • Leads
    • Max. contact resistance
    • Mechanical durability
    • Min. insulation resistance
    • Electrical life
    • Key stroke
    • Conform to the norm
    • Conform to the norm
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Switching method
    • Stable positions number
    • Button shape

    14,18 € 14,18 € (KM-TA) 14.18 EUR

    14,18 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Switch: push-button; Pos: 2; SPDT; 3A/250VAC; 3A/30VDC; ON-(ON)

    Mounting on panel, SNAP-IN
    Operating temperature -25...50°C
    IP rating IP65
    Type of switch push-button
    Number of positions 2
    Leads for soldering, 2,8x0,5mm connectors
    Max. contact resistance 50mΩ
    Mechanical durability 1000000cycles
    Min. insulation resistance 200MΩ
    Electrical life 100000cycles
    Key stroke 3mm
    Conform to the norm CSA, UL
    Contacts configuration SPDT
    DC contacts rating @R 3A / 30V DC
    AC contacts rating @R 3A / 250V AC
    Switching method ON-(ON)
    Stable positions number 1
    Button shape square
