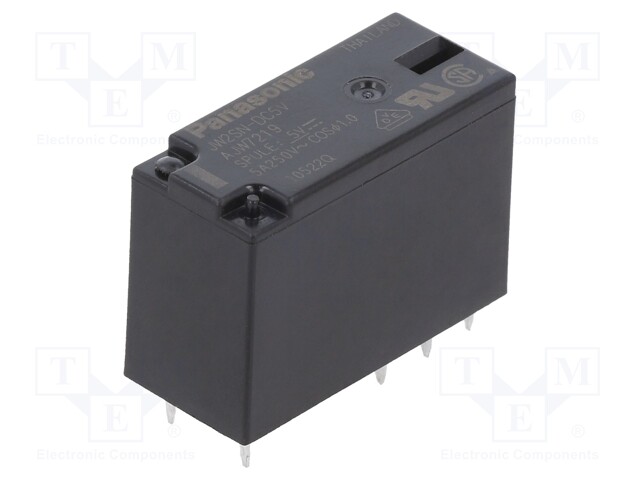

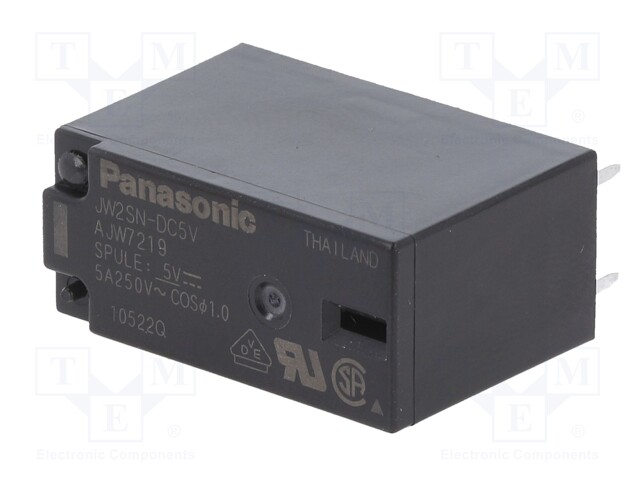

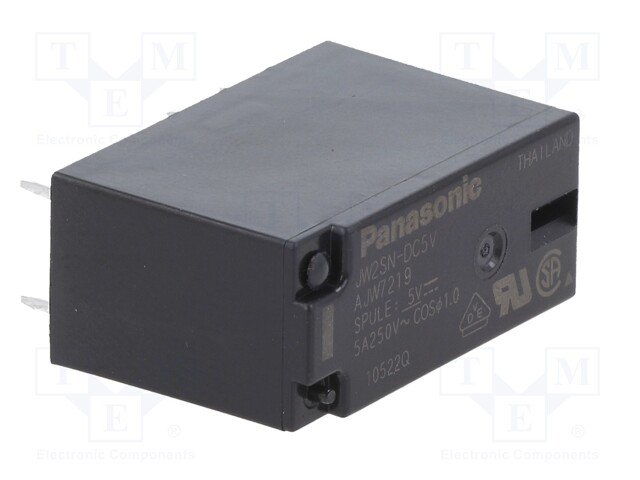

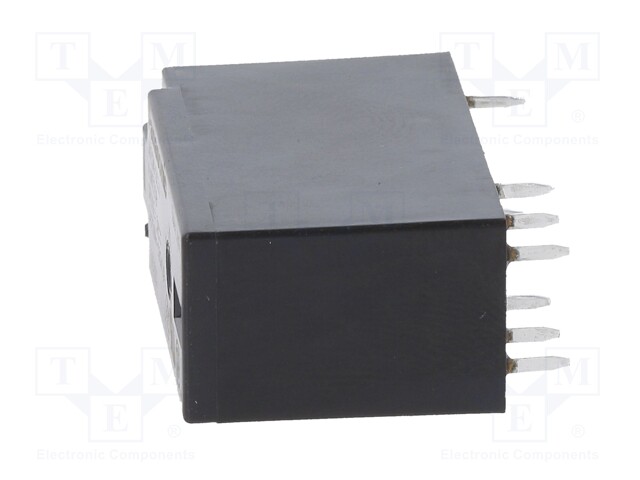

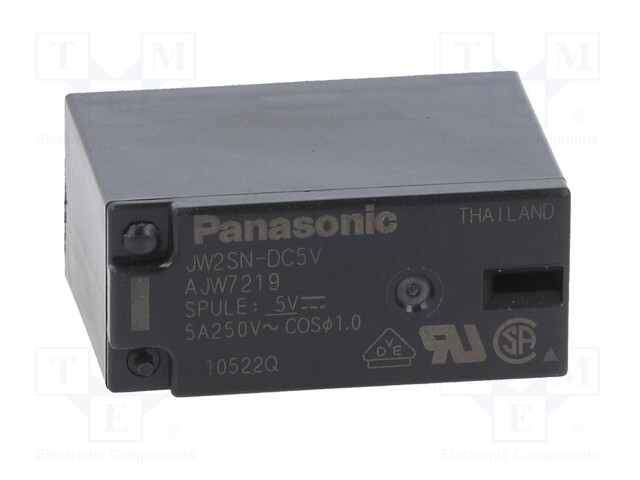

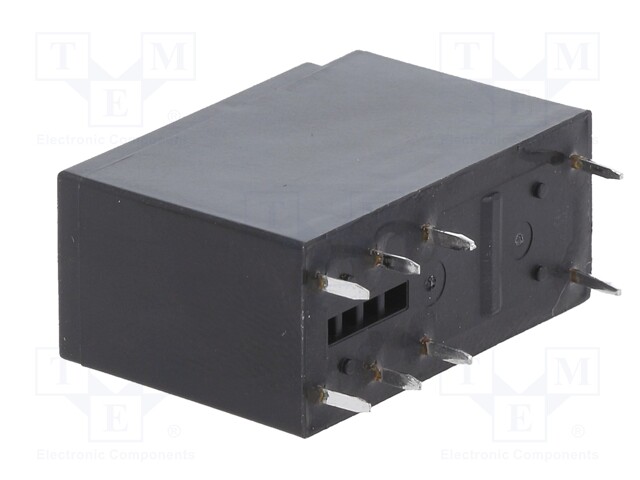

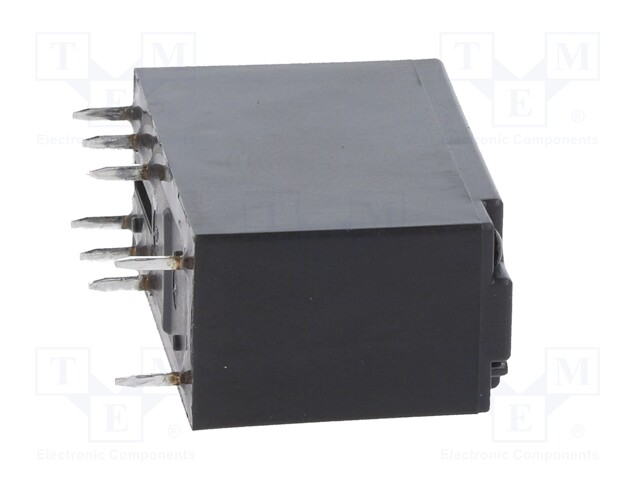

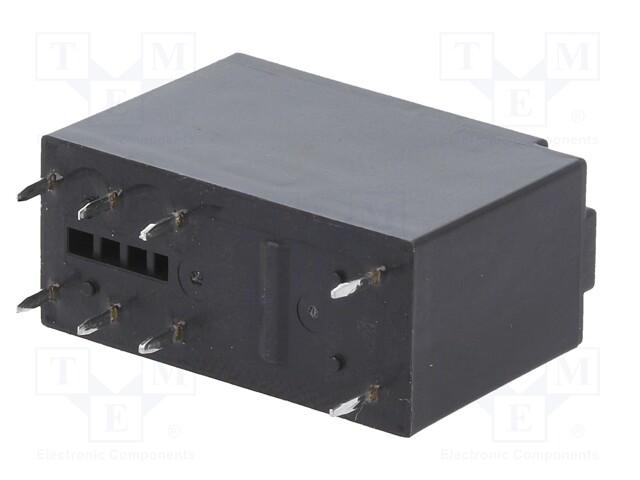

General Purpose Relay, JW Series, Power, Non Latching, DPDT, 5 VDC, 5 A

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: JW2SN5ULCSAT
    Tootja: PANASONIC
    Tootja tootekood: JW2SN5ULCSAT
    • Mounting
    • Mounting
    • Operating temperature
    • Contact material
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Coil current

    3,17 € 3,17 € (KM-TA) 3.17 EUR

    3,17 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele General Purpose Relay, JW Series, Power, Non Latching, DPDT, 5 VDC, 5 A

    Mounting PCB, socket
    Operating temperature -40...85°C
    Contact material AgNi
    Switched voltage ≤ 30V DC, ≤ 250V AC
    Coil resistance 47Ω
    Rated coil voltage 5V DC
    Contacts configuration DPDT
    DC contacts rating @R 5A / 30V DC
    AC contacts rating @R 5A / 250V AC
    Contact current max. 5A
    Relay variant miniature
    Type of relay electromagnetic
    Coil voltage min. 3.5V DC
    Coil power consumption 530mW
    Coil current 106mA
