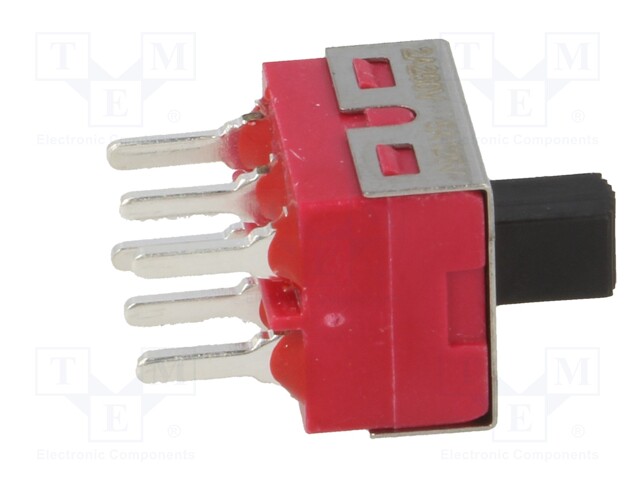

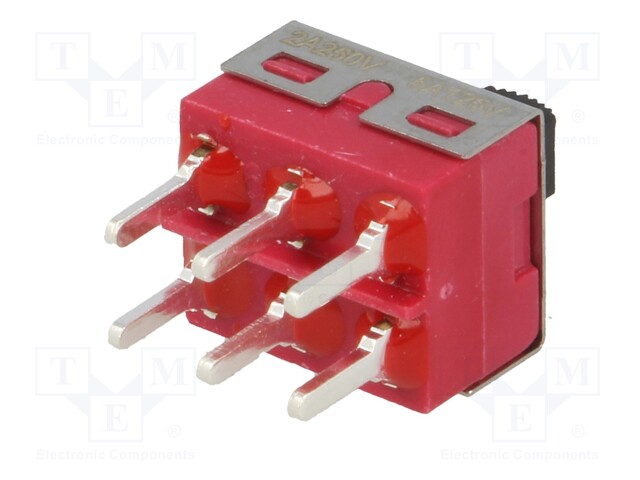

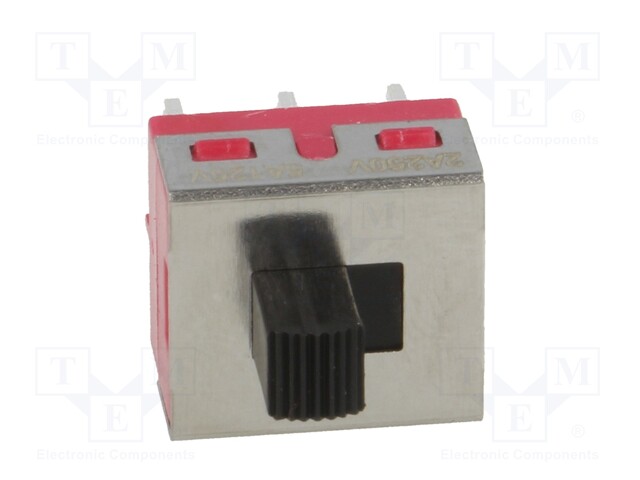

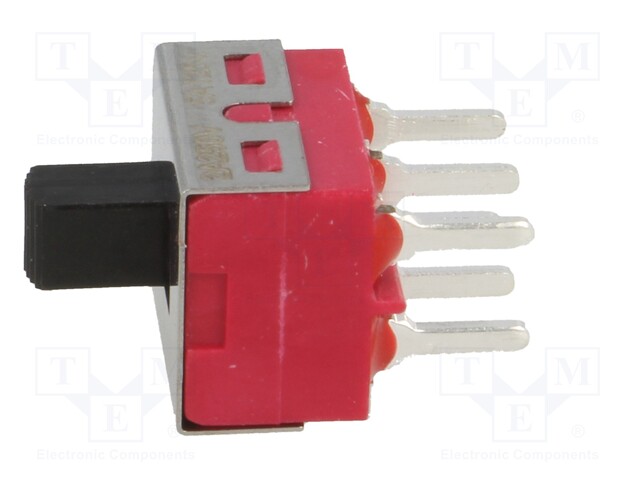

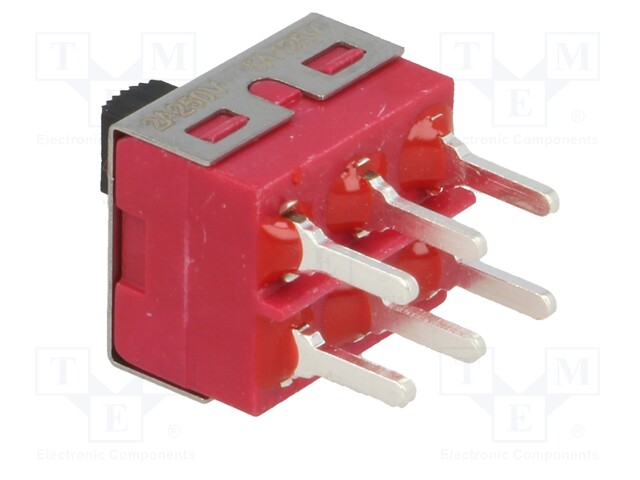

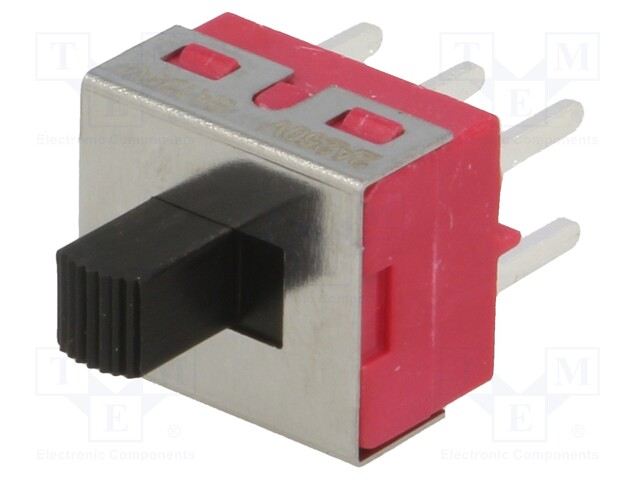

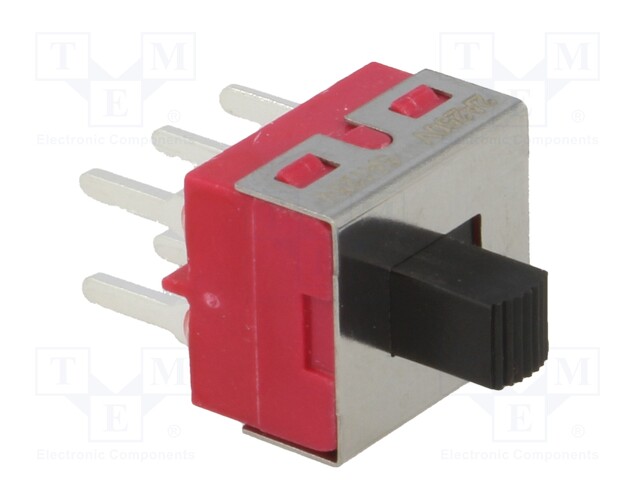

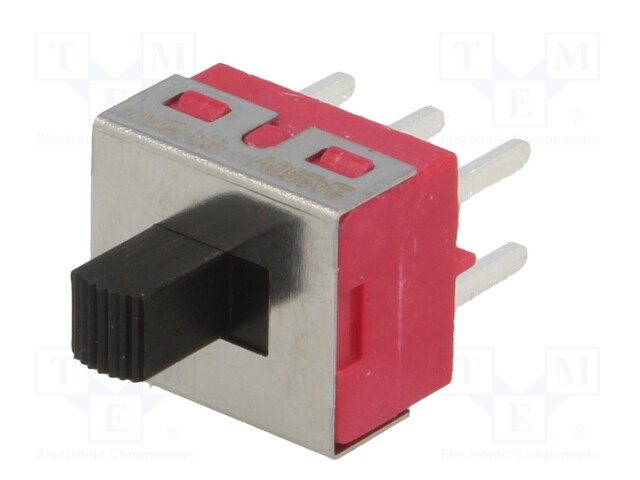

Switch: slide; Pos: 2; DPDT; 2A/250VAC; ON-ON; Mounting: THT; UL94V-0

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: IC2105S1M2QE2
    Tootja: IC SWITCHES
    Tootja tootekood: IC2105S1M2QE2
    • Mounting
    • Operating temperature
    • Type of switch
    • Contact plating
    • Number of positions
    • Leads
    • Leads
    • Contact material
    • Max. contact resistance
    • Terminal pitch
    • Body material
    • Flammability rating
    • Body dimensions
    • Mechanical durability
    • Min. insulation resistance
    • Contacts configuration
    • AC contacts rating @R
    • Switching method
    • Stable positions number
    • Actuator material

    0,00 € 0,00 € (KM-TA) 0.0 EUR

    0,00 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Switch: slide; Pos: 2; DPDT; 2A/250VAC; ON-ON; Mounting: THT; UL94V-0

    Mounting THT
    Operating temperature -30...85°C
    Type of switch slide
    Contact plating silver plated
    Number of positions 2
    Leads for PCB, straight
    Contact material copper alloy
    Max. contact resistance 10mΩ
    Terminal pitch 4.7mm
    Body material stainless steel
    Flammability rating UL94V-0
    Body dimensions 12.7x11.43x7.62mm
    Mechanical durability 30000cycles
    Min. insulation resistance 1GΩ
    Contacts configuration DPDT
    AC contacts rating @R 2A / 250V AC
    Switching method ON-ON
    Stable positions number 2
    Actuator material polyamide
