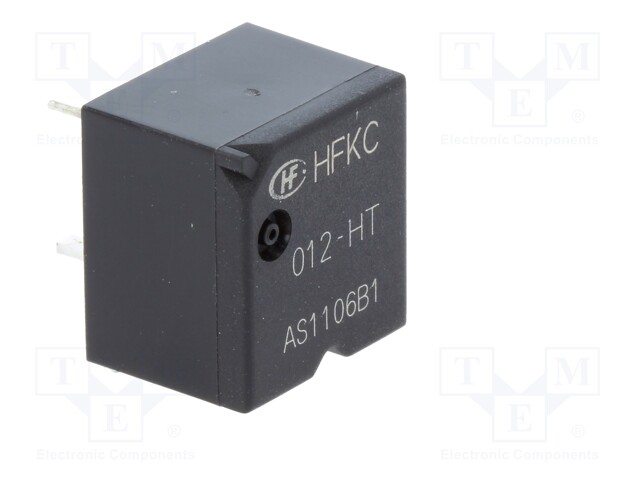

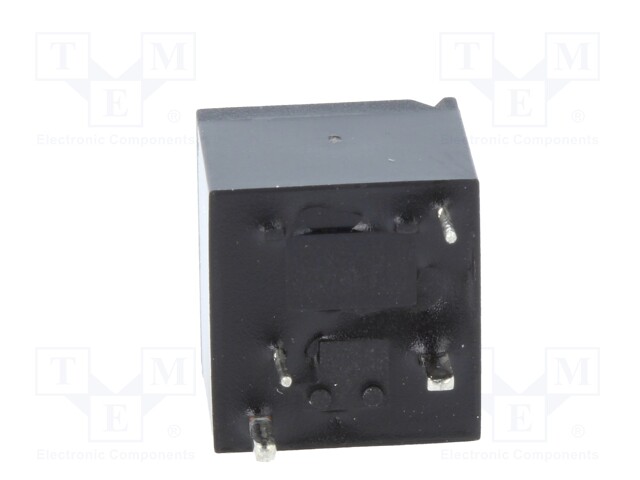

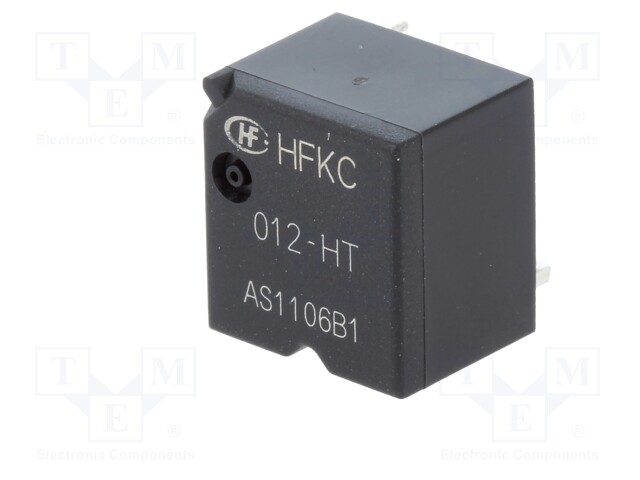

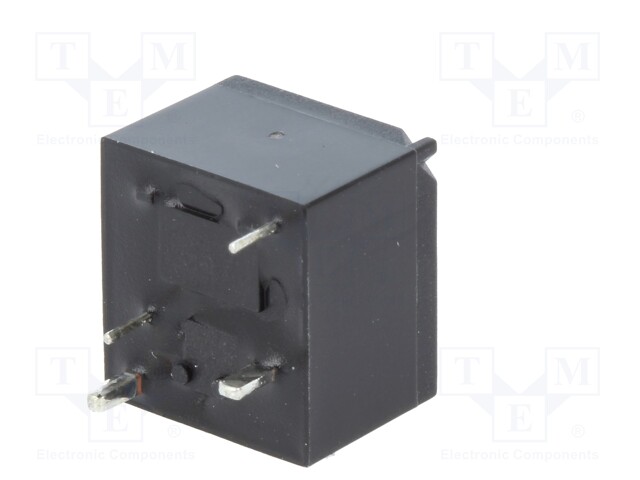

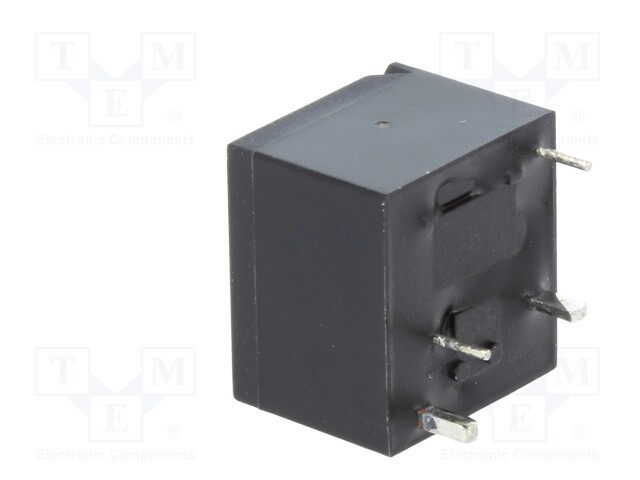

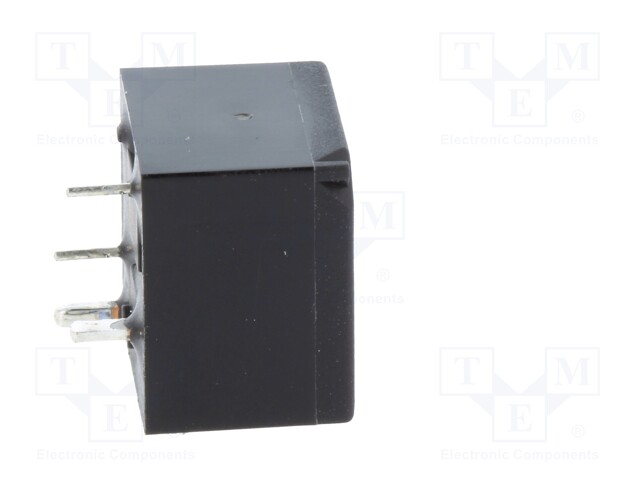

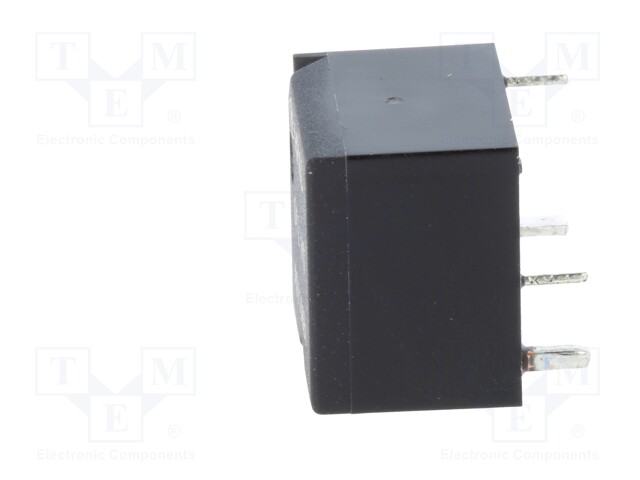

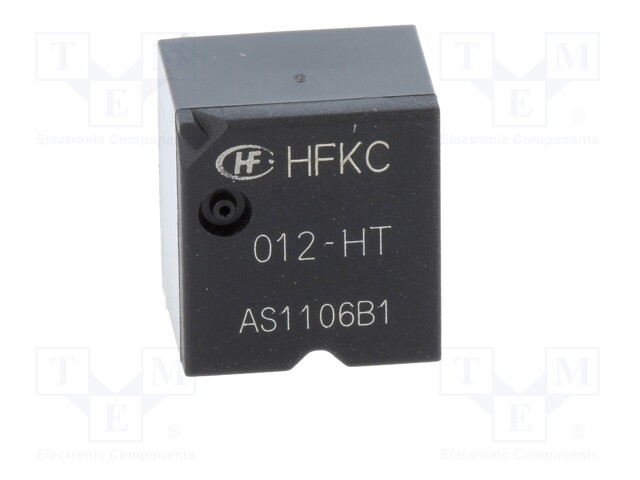

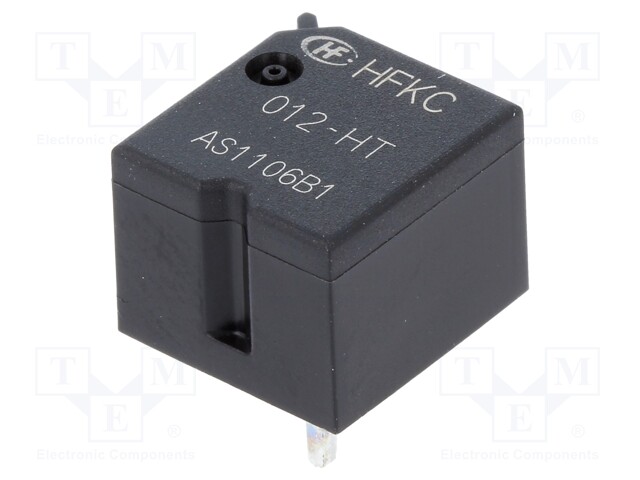

Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 30A; 254Ω; 550mW

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: HFKC/012-HT
    Tootja: HONGFA RELAY
    Tootja tootekood: HFKC/012-HT
    • Mounting
    • Operating temperature
    • Contact material
    • Body dimensions
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact current max.
    • Relay variant
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption

    12,02 € 12,02 € (KM-TA) 12.02 EUR

    12,02 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 30A; 254Ω; 550mW

    Mounting PCB
    Operating temperature -40...105°C
    Contact material AgSnO<sub>2</sub>

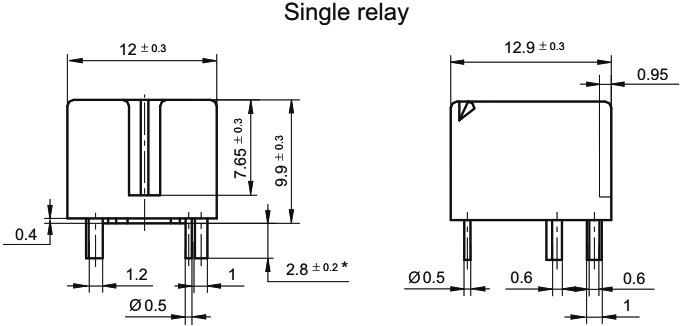

    Body dimensions 12x12.9x9.9mm
    Switched voltage ≤ 16V DC
    Coil resistance 254Ω
    Rated coil voltage 12V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 20A / 12V DC
    Contact current max. 30A
    Relay variant automotive, subminiature
    Coil voltage max. 16V DC
    Type of relay electromagnetic
    Coil voltage min. 6.9V DC
    Coil power consumption 550mW
