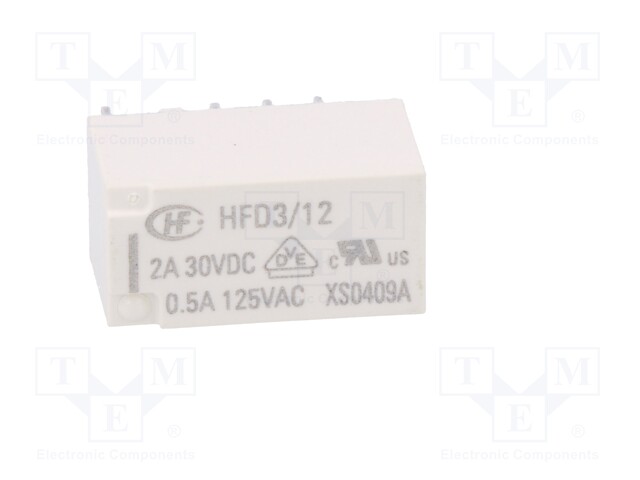

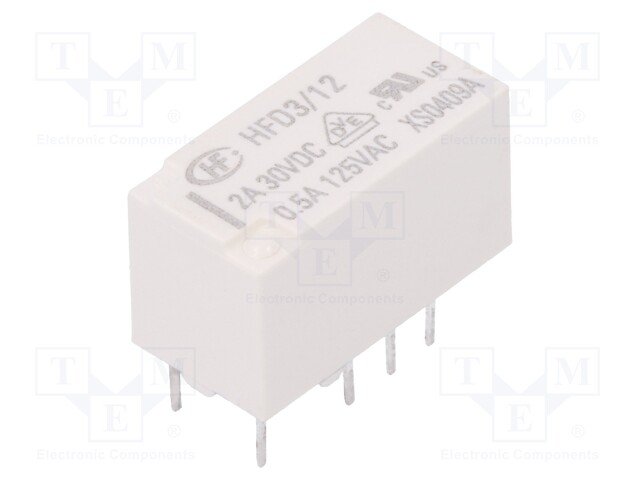

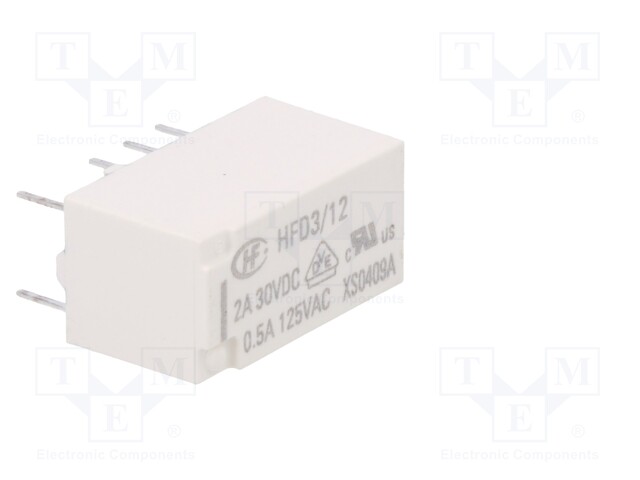

Relay: electromagnetic; DPDT; Ucoil: 12VDC; 0.5A/125VAC; 2A/30VDC
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
HFD3/12
Tootja: HONGFA RELAY
Tootja tootekood: HFD3/12
Product downloads
Spetsifikatsioon tootele Relay: electromagnetic; DPDT; Ucoil: 12VDC; 0.5A/125VAC; 2A/30VDC
Mounting | PCB |
Operating temperature | -40...85°C |
Contact material | AgNi + Au |

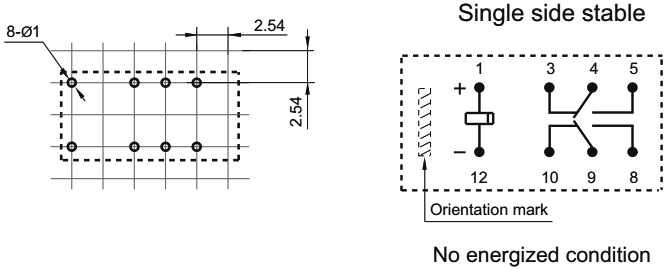

Terminal pitch | 2.54mm |

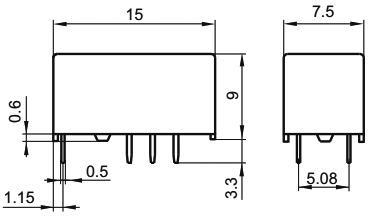

Body dimensions | 15x7.5x9mm |
Switched voltage | ≤ 220V DC, ≤ 250V AC |
Coil resistance | 1.028kΩ |
Rated coil voltage | 12V DC |
Contacts configuration | DPDT |
DC contacts rating @R | 2A / 30V DC |
Contact resistance | 100MΩ |
AC contacts rating @R | 500mA / 125V AC |
Contact current max. | 2A |
Relay variant | signal, subminiature |
Coil voltage max. | 18V DC |
Type of relay | electromagnetic |
Coil voltage min. | 9V DC |
Coil power consumption | 140mW |
Operate time | 4ms |
Release time | 4ms |
