Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 5A/250VAC; 5A/30VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: HF32FA/012-HSL1
    Tootja: HONGFA RELAY
    Tootja tootekood: HF32FA/012-HSL1
    • Mounting
    • Operating temperature
    • Contact material
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time

    0,00 € 0,00 € (KM-TA) 0.0 EUR

    0,00 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 5A/250VAC; 5A/30VDC

    Mounting PCB
    Operating temperature -40...85°C
    Contact material AgNi

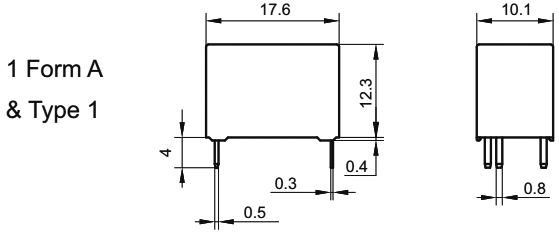

    Body dimensions 17.6x10.1x12.3mm
    Switched voltage ≤ 30V DC, ≤ 250V AC
    Coil resistance 720Ω
    Rated coil voltage 12V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 5A / 30V DC
    Contact resistance 70mΩ
    AC contacts rating @R 5A / 250V AC
    Contact current max. 5A
    Relay variant subminiature
    Coil voltage max. 20.4V DC
    Type of relay electromagnetic
    Coil voltage min. 9V DC
    Coil power consumption 200mW
    Operate time 8ms
    Release time 4ms
