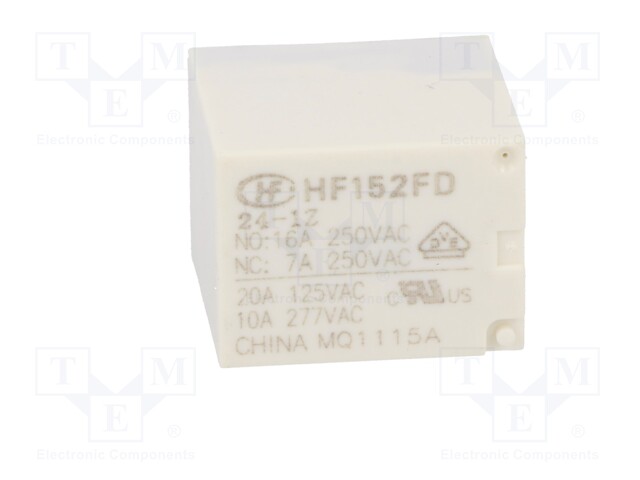

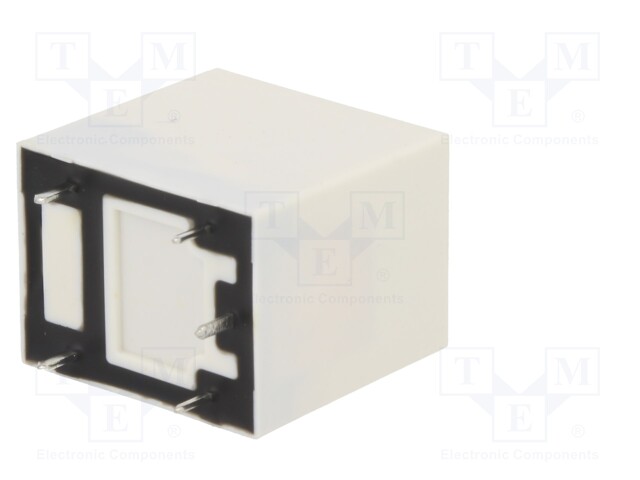

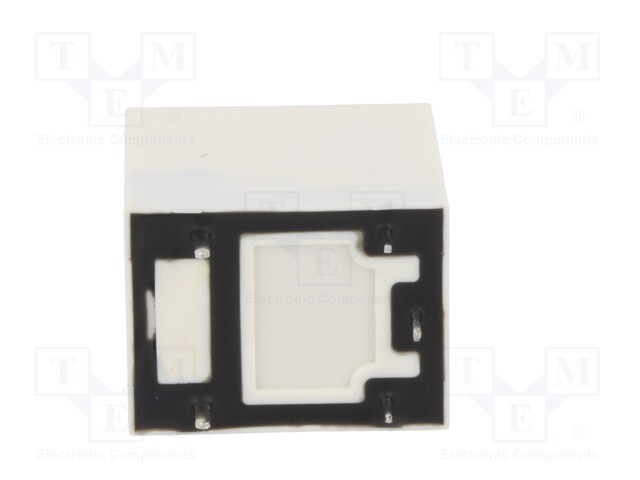

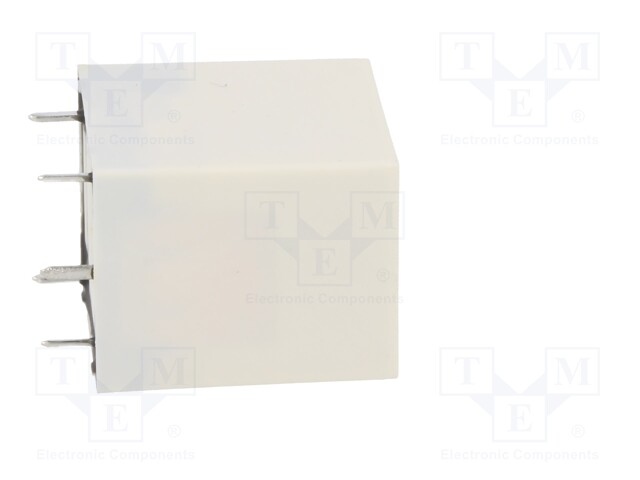

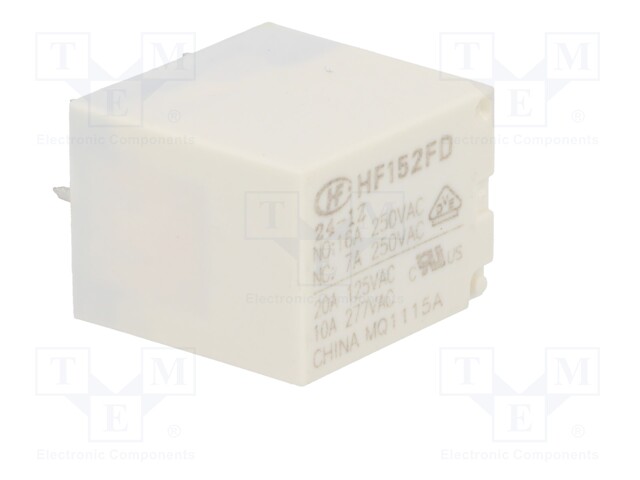

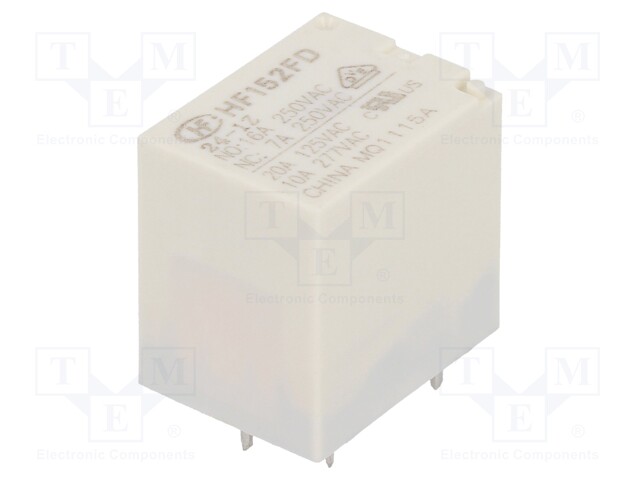

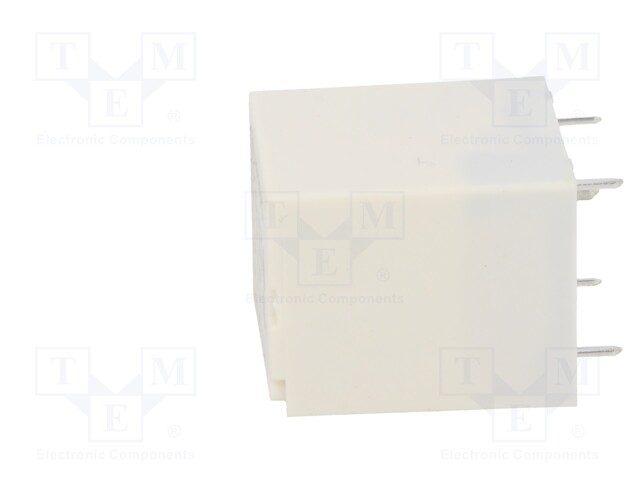

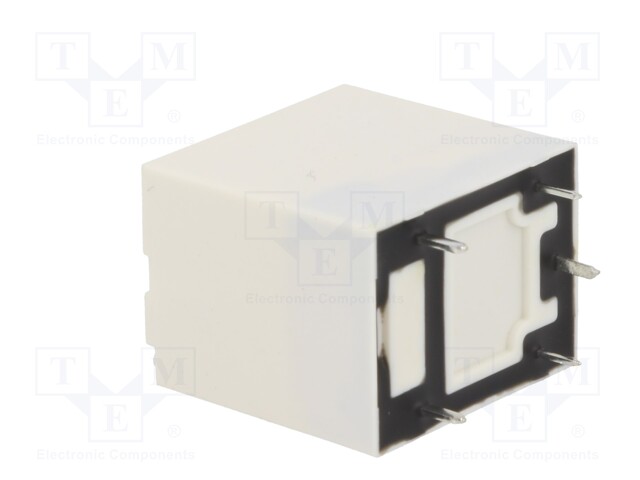

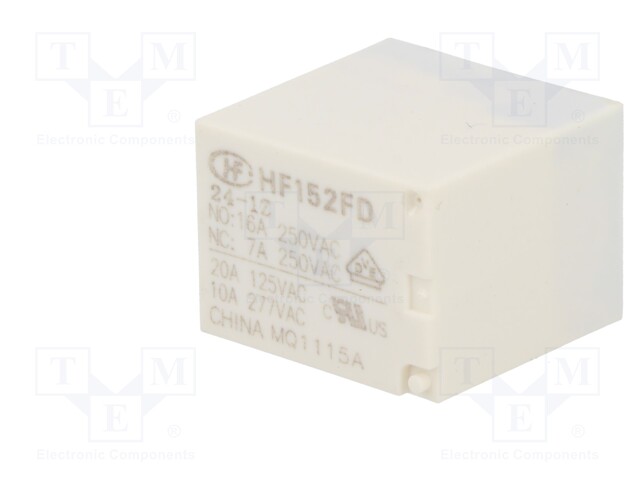

Relay: electromagnetic; SPDT; Ucoil: 24VDC; 17A/125VAC; 17A; 360mW

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: HF152FD/24-1Z
    Tootja: HONGFA RELAY
    Tootja tootekood: HF152FD/24-1Z
    • Mounting
    • Operating temperature
    • Contact material
    • Body dimensions
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time

    3,84 € 3,84 € (KM-TA) 3.84 EUR

    3,84 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPDT; Ucoil: 24VDC; 17A/125VAC; 17A; 360mW

    Mounting PCB
    Operating temperature -40...105°C
    Contact material AgNi

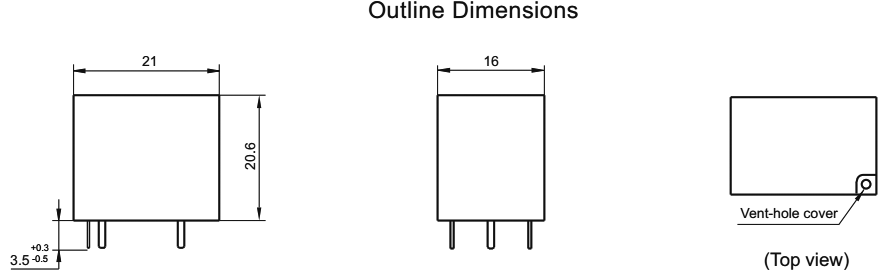

    Body dimensions 21x16x20.6mm
    Switched voltage ≤ 400V AC
    Coil resistance 1.6kΩ
    Rated coil voltage 24V DC

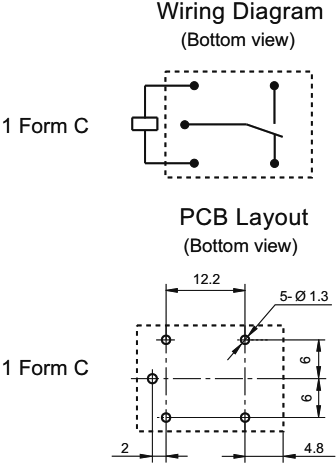

    Contacts configuration SPDT
    Contact resistance 100MΩ
    AC contacts rating @R 17A / 125V AC
    Contact current max. 17A
    Relay variant subminiature
    Coil voltage max. 31.2V DC
    Type of relay electromagnetic
    Coil voltage min. 18V DC
    Coil power consumption 360mW
    Operate time 10ms
    Release time 5ms
