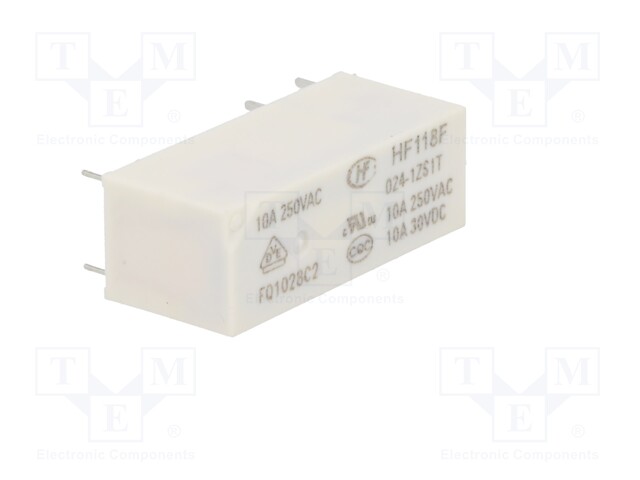

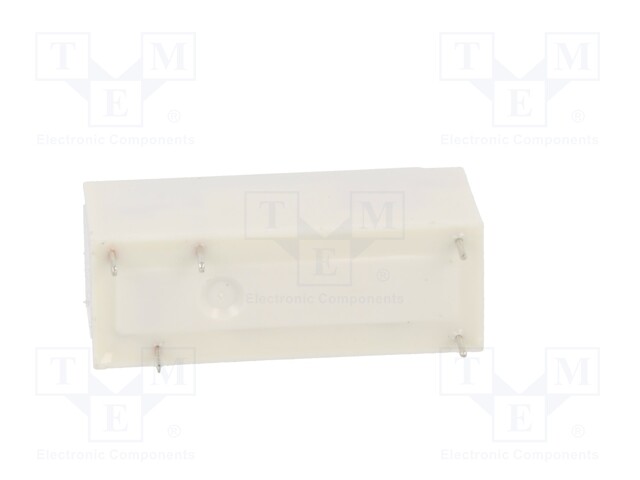

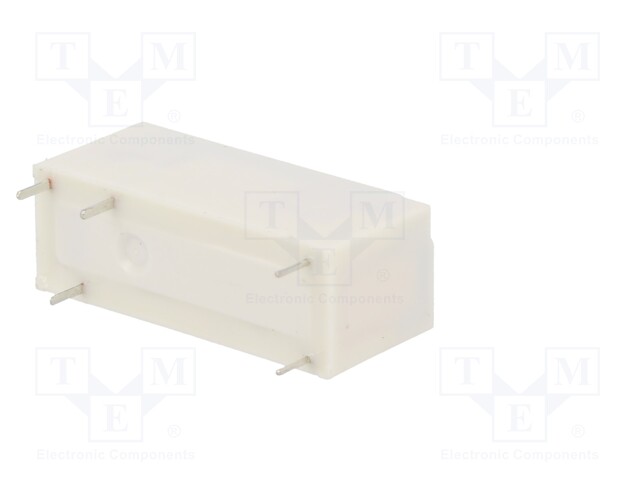

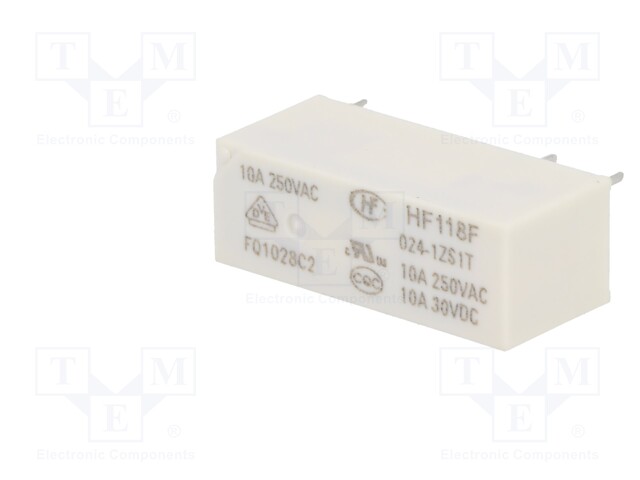

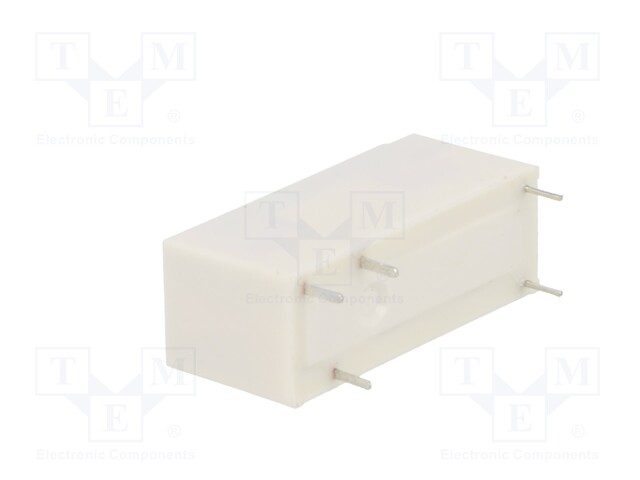

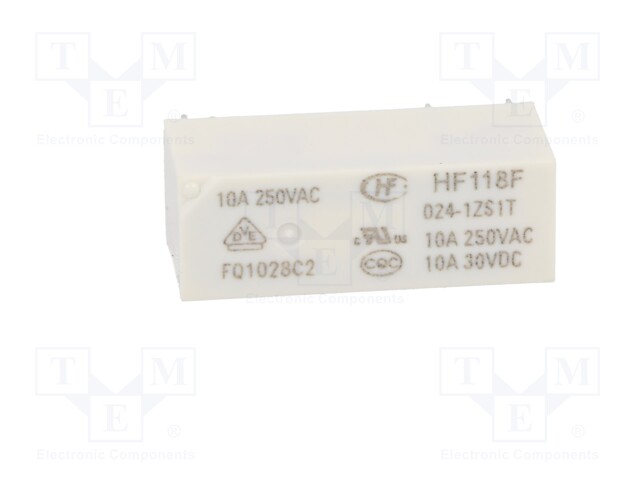

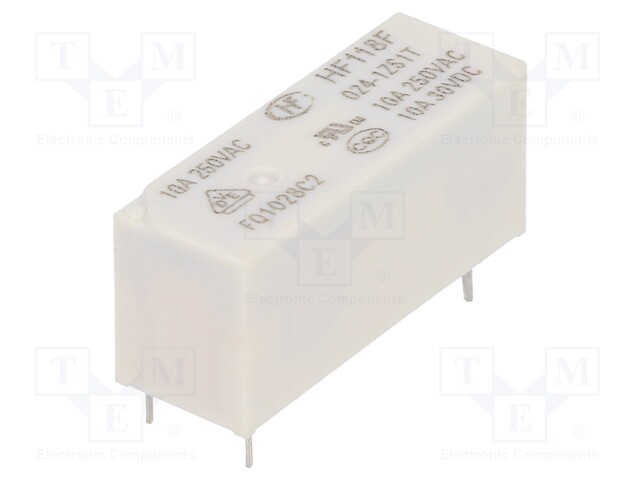

Relay: electromagnetic; SPDT; Ucoil: 24VDC; 10A/250VAC; 10A/30VDC
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
HF118F/024-1ZS1T
Tootja: HONGFA RELAY
Tootja tootekood: HF118F/024-1ZS1T
Product downloads
Spetsifikatsioon tootele Relay: electromagnetic; SPDT; Ucoil: 24VDC; 10A/250VAC; 10A/30VDC
Mounting | PCB |
Operating temperature | -40...85°C |
Contact material | AgSnO<sub>2</sub> |
Terminal pitch | 3.2mm |

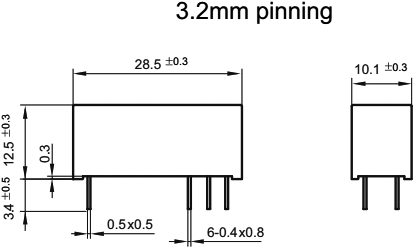

Body dimensions | 28.5x12.5x10.1mm |
Switched voltage | ≤ 125V DC, ≤ 440V AC |
Coil resistance | 2.35kΩ |
Rated coil voltage | 24V DC |
Contacts configuration | SPDT |
DC contacts rating @R | 10A / 30V DC |
Contact resistance | 100MΩ |
AC contacts rating @R | 10A / 250V AC |
Contact current max. | 10A |
Relay variant | miniature |
Coil voltage max. | 36V DC |
Type of relay | electromagnetic |
Coil voltage min. | 16.8V DC |
Coil power consumption | 220mW |
Operate time | 10ms |
Release time | 5ms |
