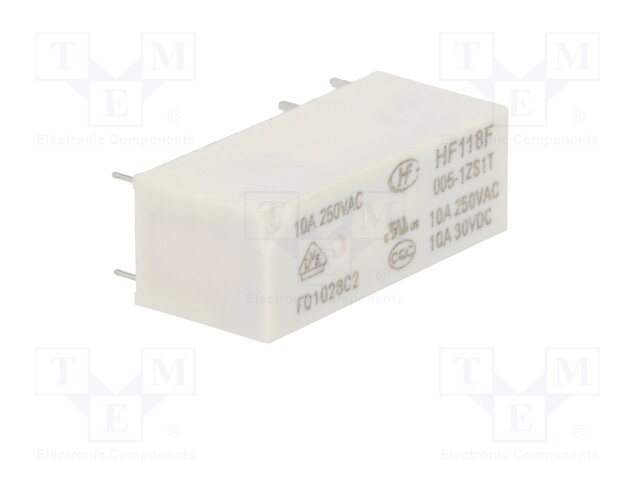

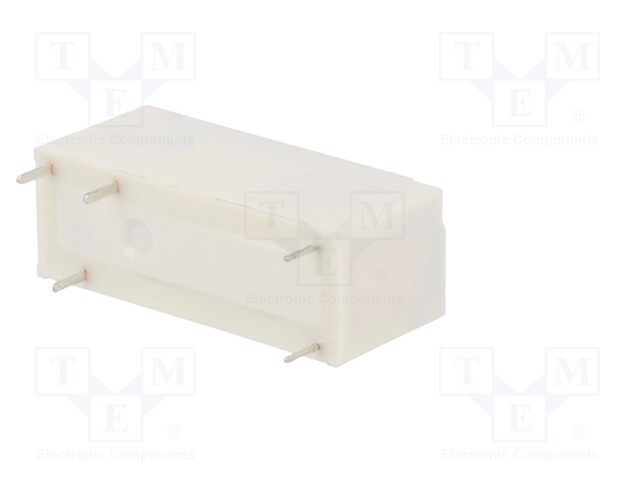

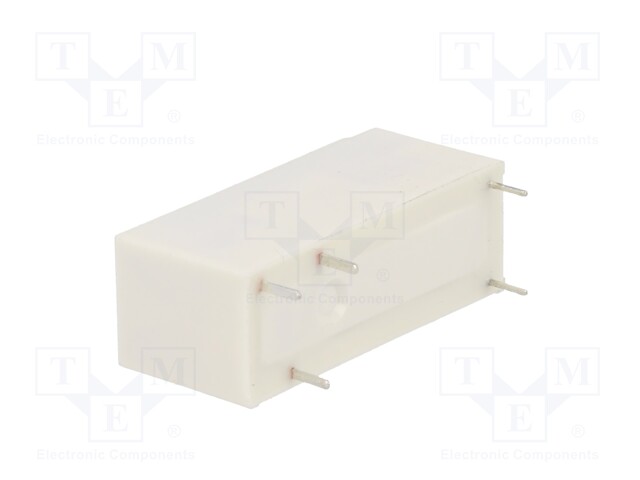

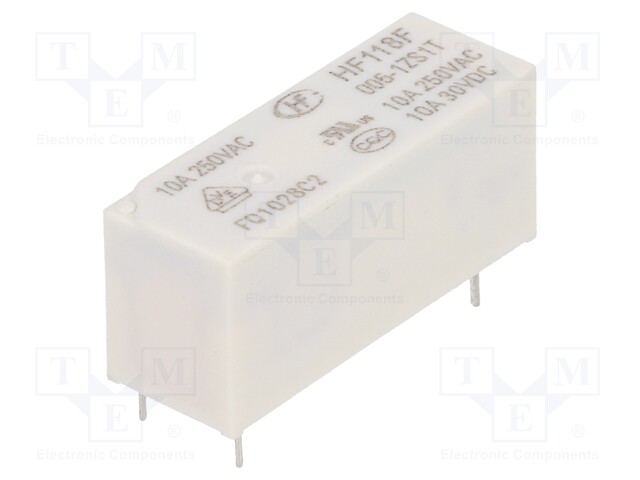

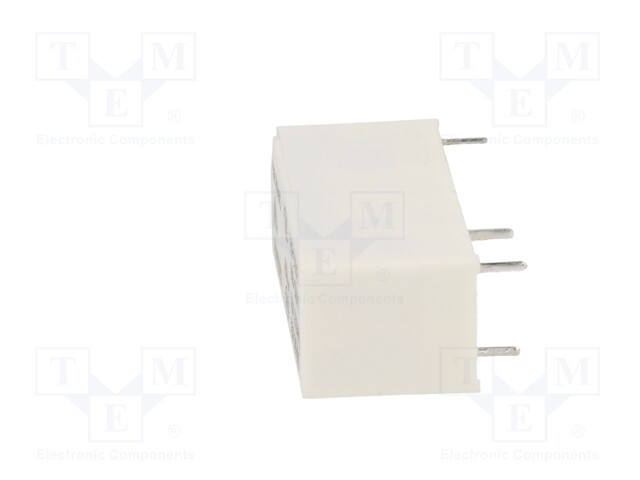

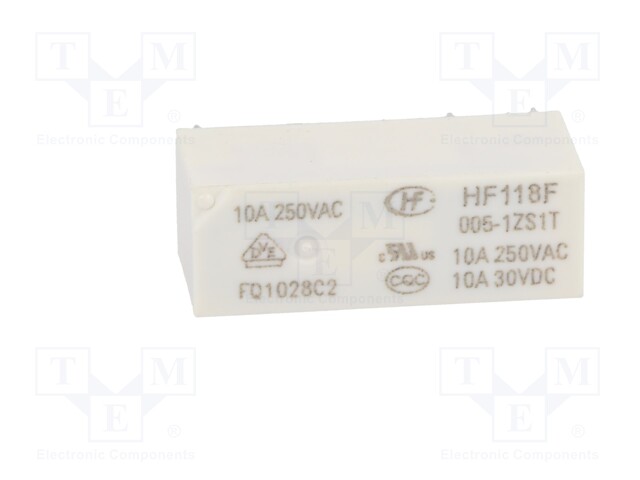

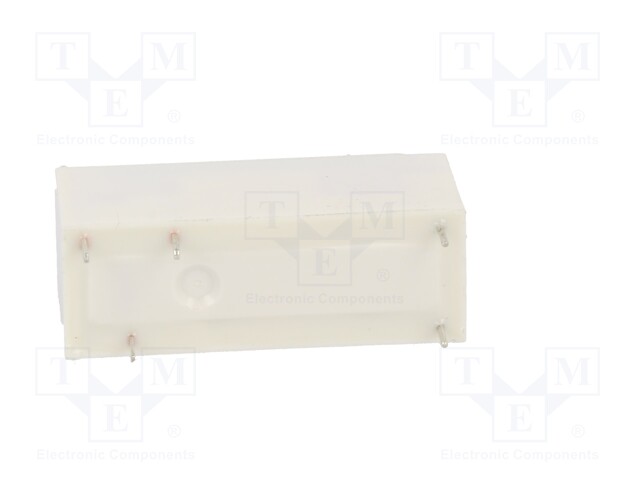

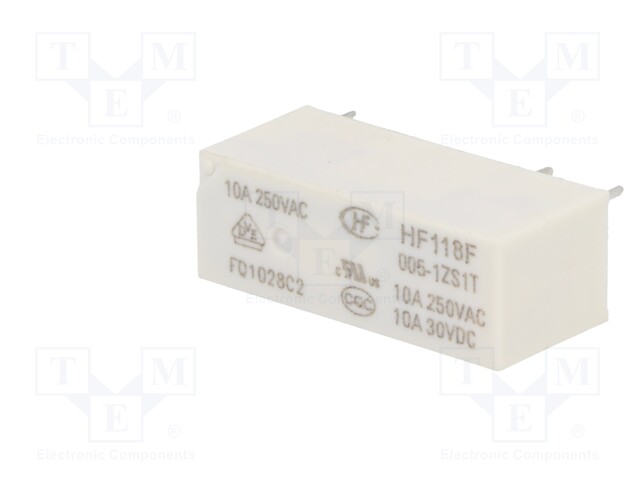

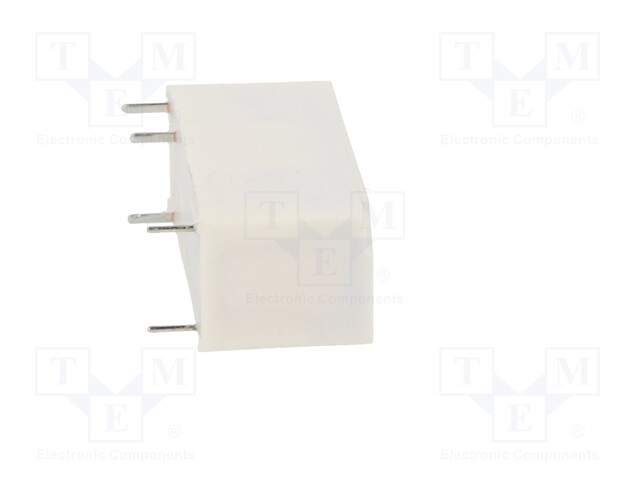

Relay: electromagnetic; SPDT; Ucoil: 5VDC; 10A/250VAC; 10A/30VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: HF118F/005-1ZS1T
    Tootja: HONGFA RELAY
    Tootja tootekood: HF118F/005-1ZS1T
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time

    3,98 € 3,98 € (KM-TA) 3.98 EUR

    3,98 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPDT; Ucoil: 5VDC; 10A/250VAC; 10A/30VDC

    Mounting PCB
    Operating temperature -40...85°C
    Contact material AgSnO<sub>2</sub>
    Terminal pitch 3.2mm
    Body dimensions 28.5x12.5x10.1mm
    Switched voltage ≤ 125V DC, ≤ 440V AC
    Coil resistance 113Ω
    Rated coil voltage 5V DC
    Contacts configuration SPDT
    DC contacts rating @R 10A / 30V DC
    Contact resistance 100MΩ
    AC contacts rating @R 10A / 250V AC
    Contact current max. 10A
    Relay variant miniature
    Coil voltage max. 7.5V DC
    Type of relay electromagnetic
    Coil voltage min. 3.5V DC
    Coil power consumption 220mW
    Operate time 10ms
    Release time 5ms
