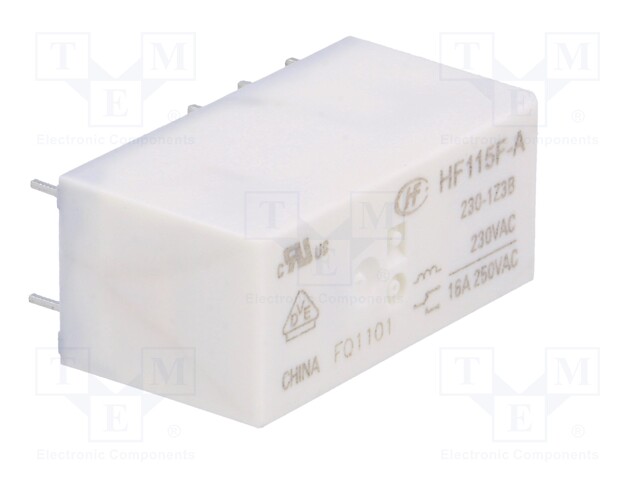

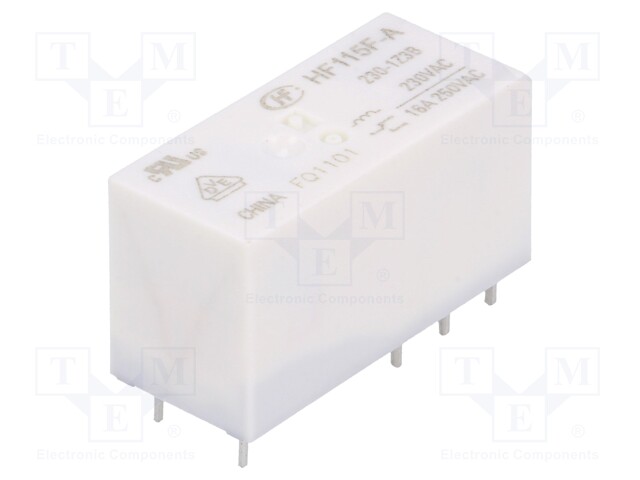

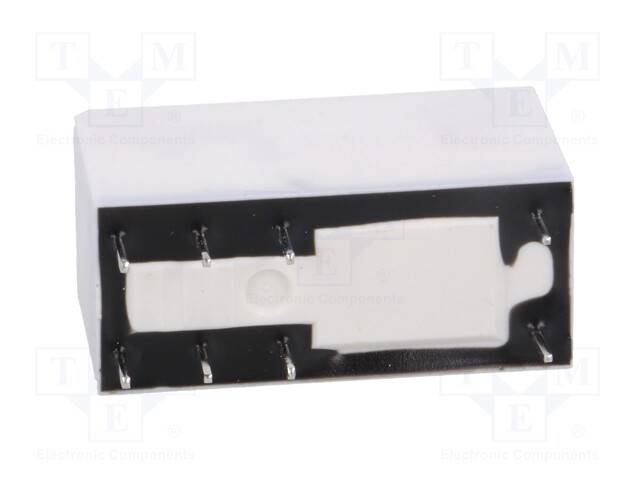

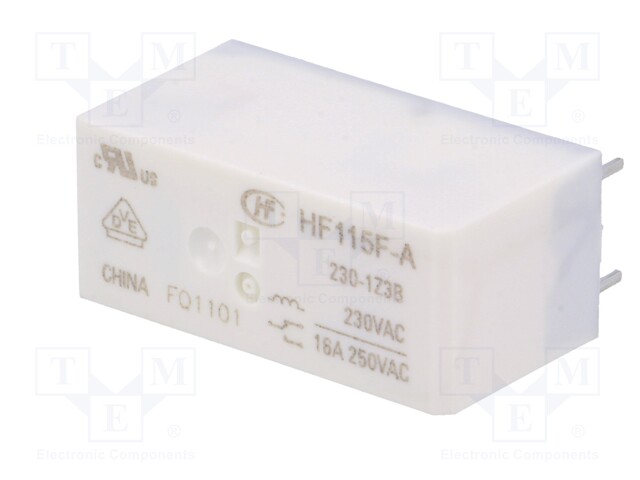

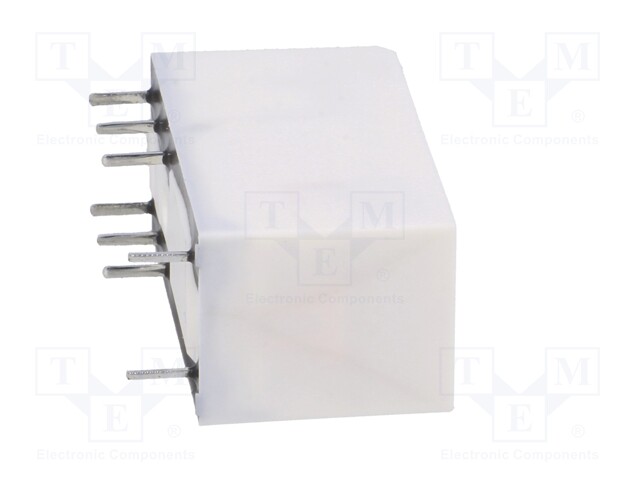

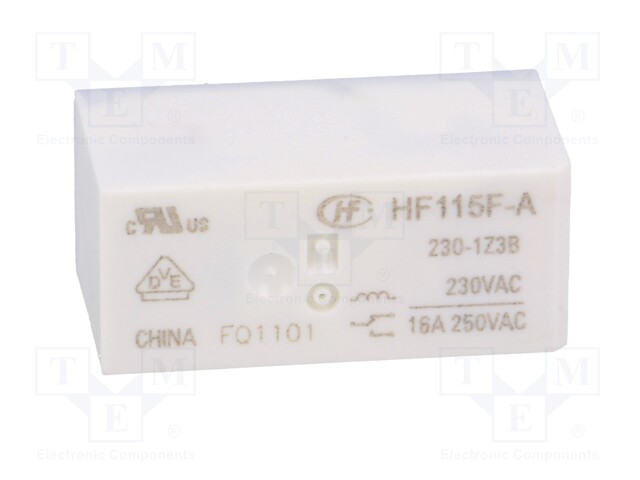

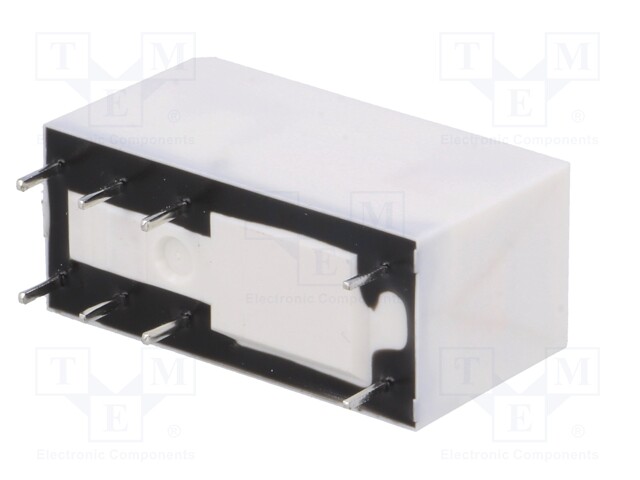

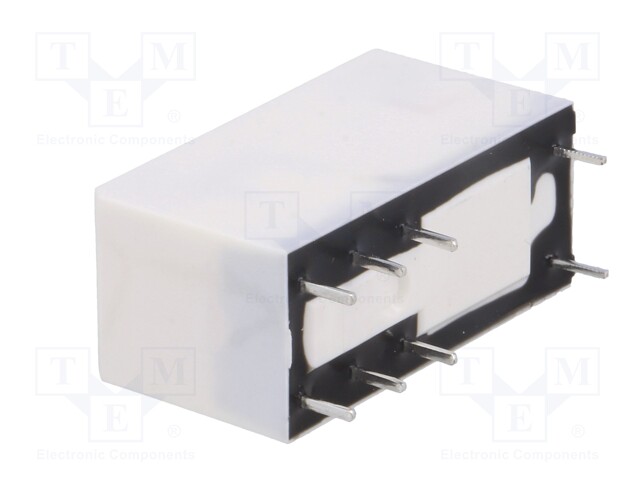

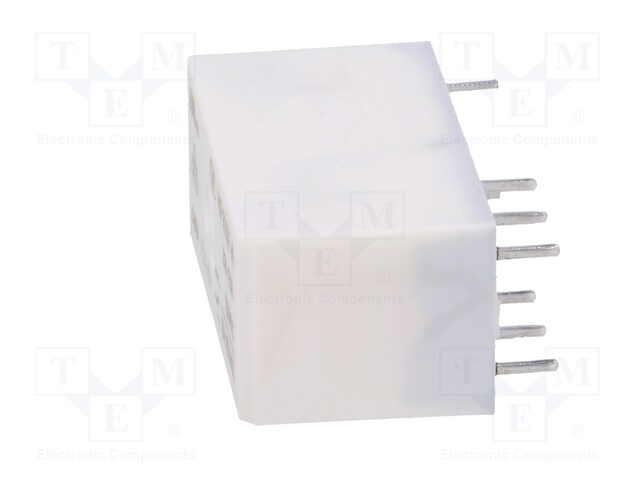

Relay: electromagnetic; SPDT; Ucoil: 230VAC; 16A/250VAC; 16A/24VDC

Kordarv: 1.0
Minimum quantity: 1.0
Tootekood: HF115F-A/230-1Z3B
Tootja: HONGFA RELAY
Tootja tootekood: HF115F-A/230-1Z3B
  • Mounting
  • Operating temperature
  • Contact material
  • Terminal pitch
  • Body dimensions
  • Switched voltage
  • Switched voltage
  • Coil resistance
  • Contacts configuration
  • DC contacts rating @R
  • Contact resistance
  • AC contacts rating @R
  • Contact current max.
  • Relay variant
  • Type of relay
  • Coil power consumption
  • Relay series
  • Operate time
  • Release time

8,79 € 8,79 € (KM-TA) 8.790000000000001 EUR

8,79 €

Seda kombinatsiooni ei eksisteeri.

Lisa ostukorvi

Product downloads

Spetsifikatsioon tootele Relay: electromagnetic; SPDT; Ucoil: 230VAC; 16A/250VAC; 16A/24VDC

Mounting PCB
Operating temperature -40...85°C
Contact material AgNi
Terminal pitch 5mm
Body dimensions 29x12.7x15.7mm
Switched voltage ≤ 300V DC, ≤ 440V AC
Coil resistance 32.5kΩ

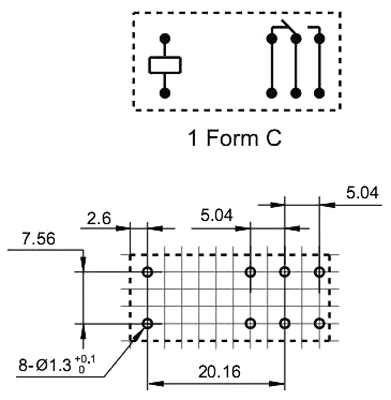

Contacts configuration SPDT
DC contacts rating @R 16A / 24V DC
Contact resistance 100MΩ
AC contacts rating @R 16A / 250V AC
Contact current max. 16A
Relay variant miniature
Type of relay electromagnetic
Coil power consumption 0.75VA
Relay series HF115F
Operate time 15ms
Release time 8ms
