Relay: reed; SPST-NO; Ucoil: 5VDC; 500mA; max.200VDC; 10W; PCB; SIL

Kordarv: 1.0
Minimum quantity: 1.0
Tootekood: HE3321A0400
Tootja: LITTELFUSE
Tootja tootekood: HE3321A0400
  • Mounting
  • Case
  • Operating temperature
  • Terminal pitch
  • Body dimensions
  • Switched voltage
  • Switching capacity
  • Coil resistance
  • Rated coil voltage
  • Contacts configuration
  • Contact resistance
  • Contact current max.
  • Coil voltage max.
  • Type of relay
  • Coil voltage min.
  • Coil power consumption
  • Relay series

3,71 € 3,71 € (KM-TA) 3.71 EUR

3,71 €

Seda kombinatsiooni ei eksisteeri.

Lisa ostukorvi

Product downloads

Spetsifikatsioon tootele Relay: reed; SPST-NO; Ucoil: 5VDC; 500mA; max.200VDC; 10W; PCB; SIL

Mounting PCB
Case SIL
Operating temperature -40...85°C
Terminal pitch 5.08mm

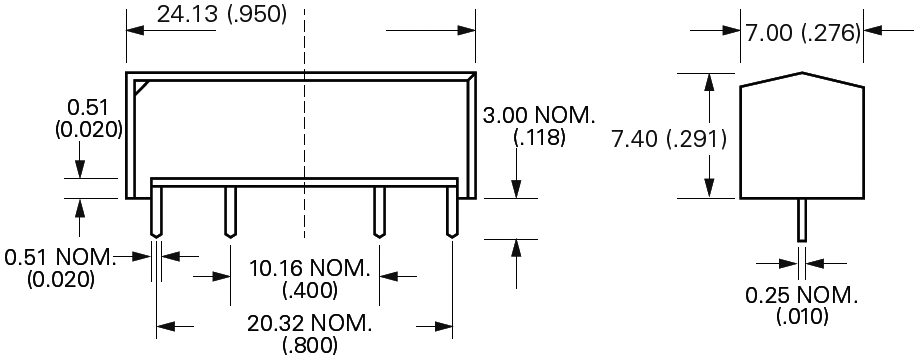

Body dimensions 7x7.4x24.13mm
Switched voltage ≤ 200V DC
Switching capacity 10W
Coil resistance 500Ω
Rated coil voltage 5V DC

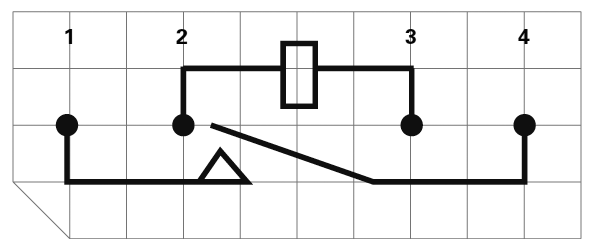

Contacts configuration SPST-NO
Contact resistance 150mΩ
Contact current max. 500mA
Coil voltage max. 22V DC
Type of relay reed
Coil voltage min. 3.75V DC
Coil power consumption 10mW
Relay series HE3300
