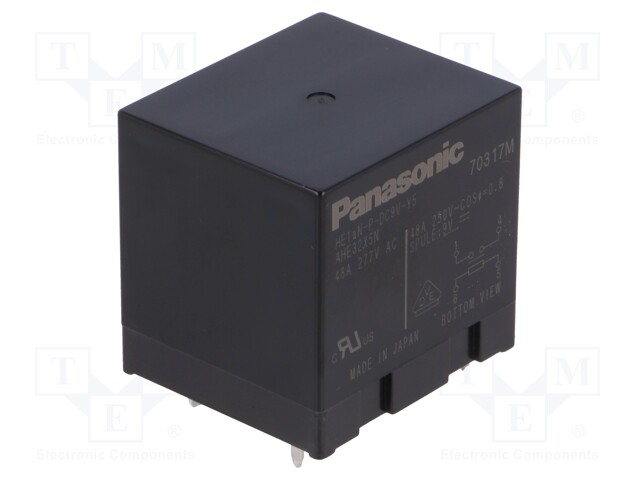

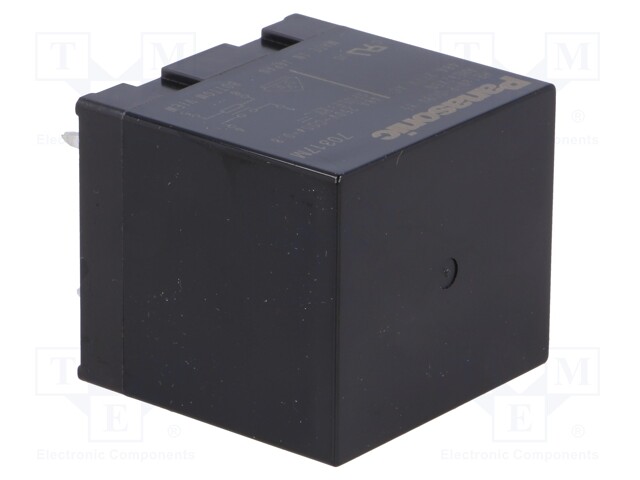

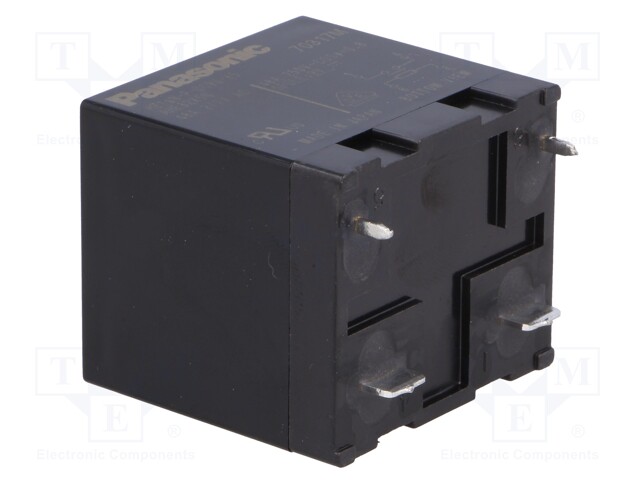

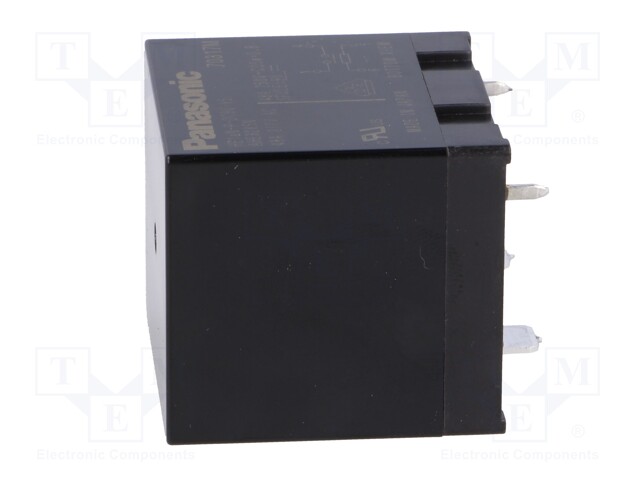

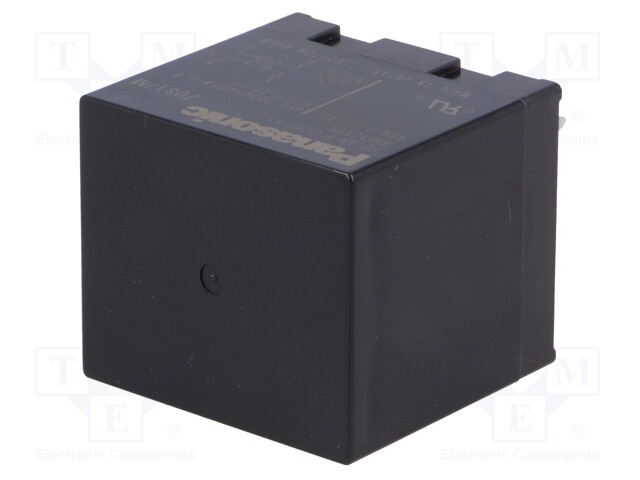

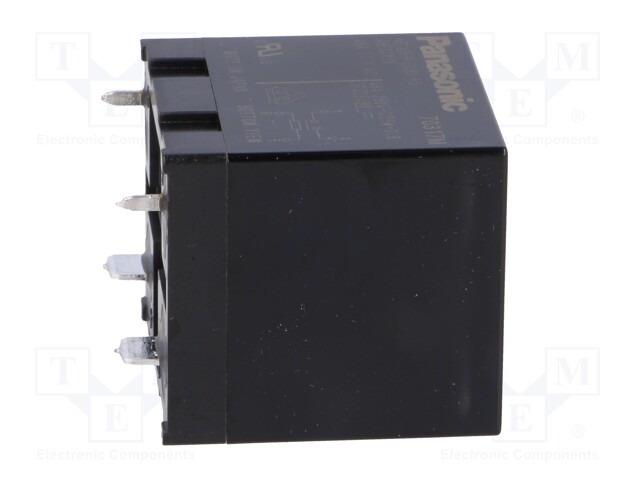

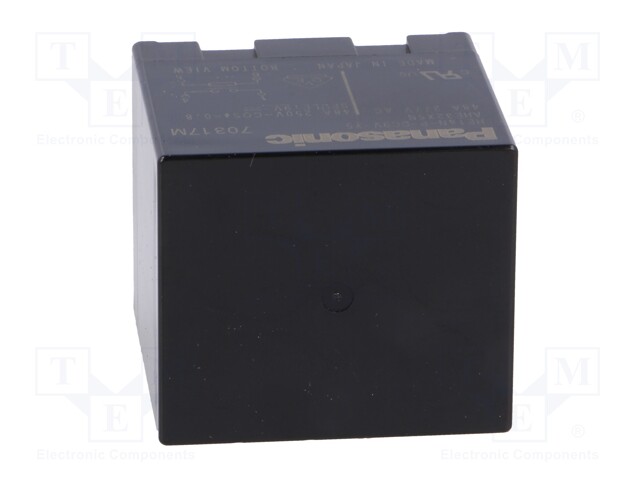

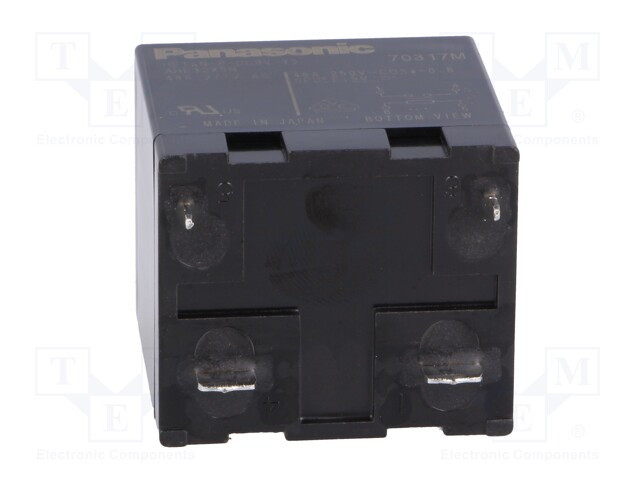

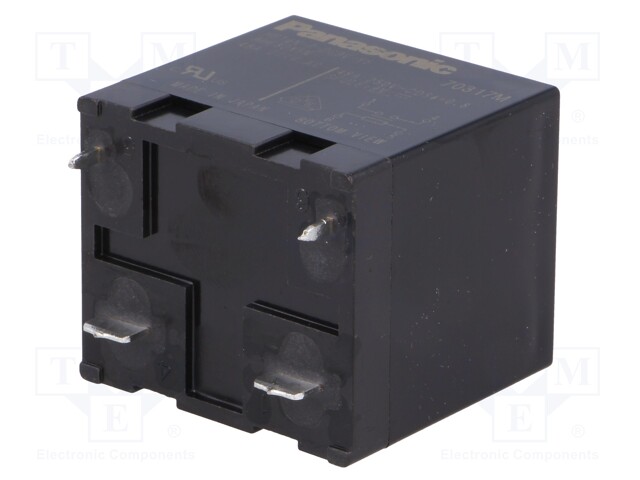

Relay: electromagnetic; SPST-NO; Ucoil: 9VDC; Icontacts max: 48A

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: HE1AN-P-DC9V-Y5
    Tootja: PANASONIC
    Tootja tootekood: HE1AN-P-DC9V-Y5
    • Mounting
    • Operating temperature
    • Contact material
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Switching capacity
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Relay series
    • Operate time
    • Release time
    • Coil current

    20,36 € 20,36 € (KM-TA) 20.36 EUR

    20,36 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO; Ucoil: 9VDC; Icontacts max: 48A

    Mounting PCB
    Operating temperature -50...55°C
    Contact material AgNi

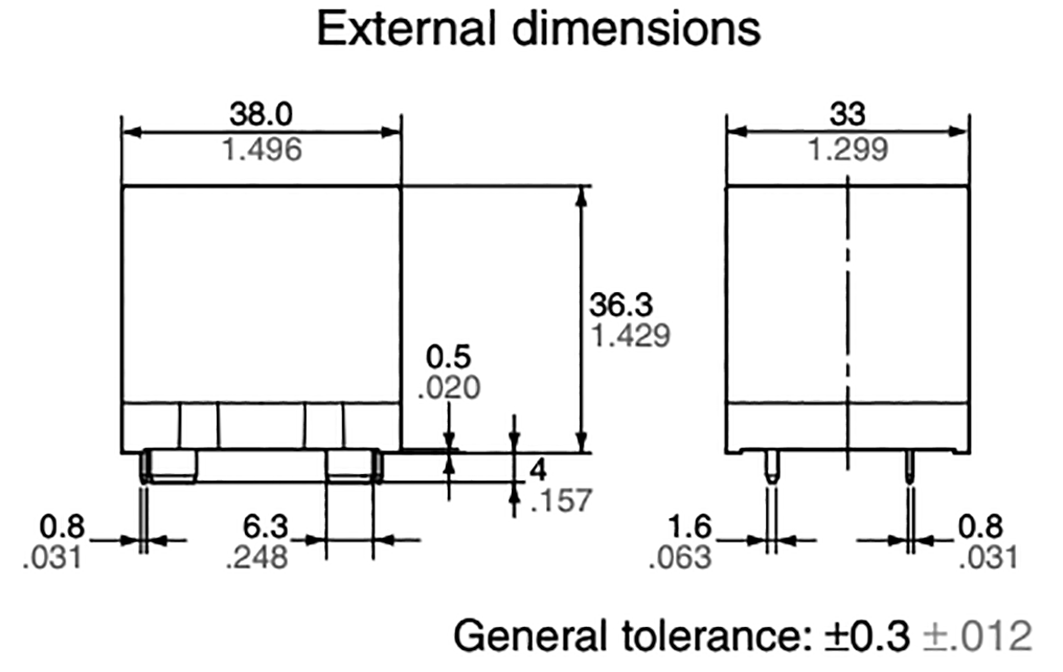

    Body dimensions 38x33x36.3mm
    Mechanical durability 10000000cycles
    Switched voltage ≤ 30V DC, ≤ 277V AC
    Switching capacity 13.296kVA
    Rated coil voltage 9V DC

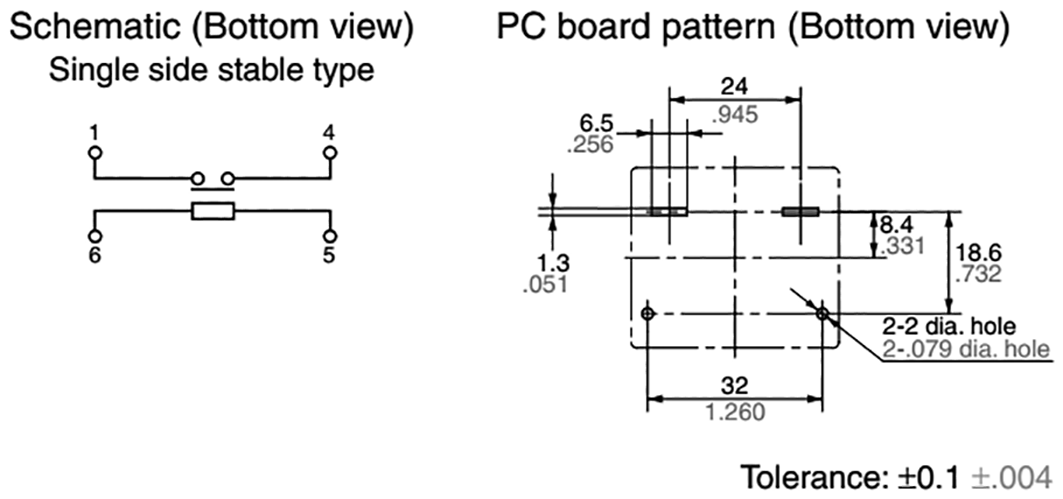

    Contacts configuration SPST-NO
    DC contacts rating @R 48A / 30V DC
    AC contacts rating @R 48A / 277V AC
    Contact current max. 48A
    Relay variant power
    Type of relay electromagnetic
    Coil voltage min. 6.3V DC
    Coil power consumption 1.92W
    Relay series HE
    Operate time 30ms
    Release time 10ms
    Coil current 213mA
