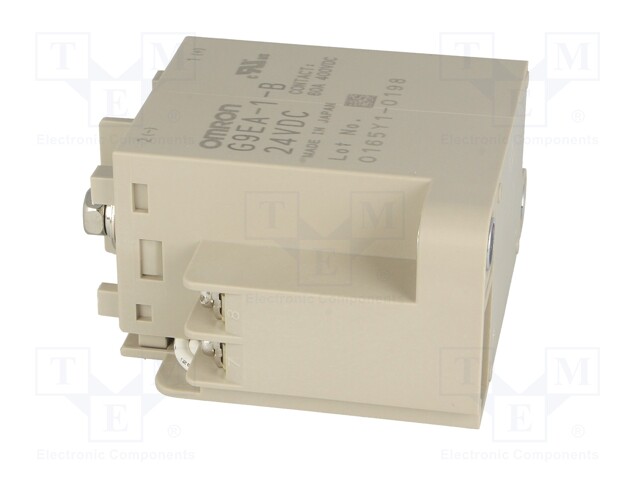

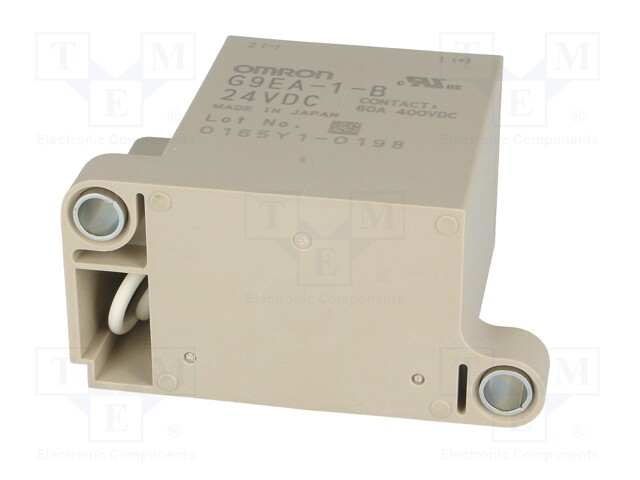

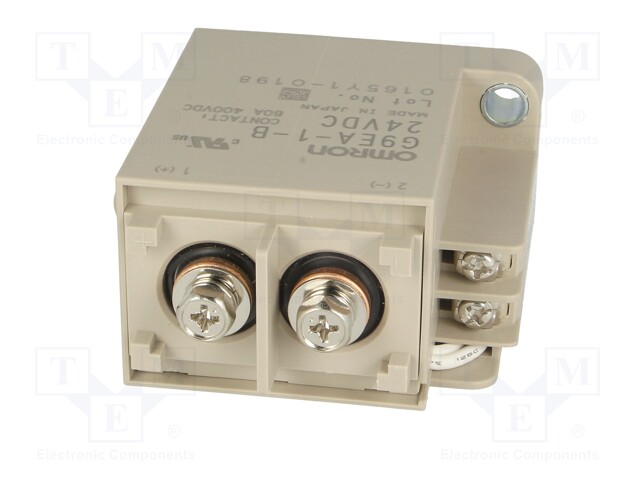

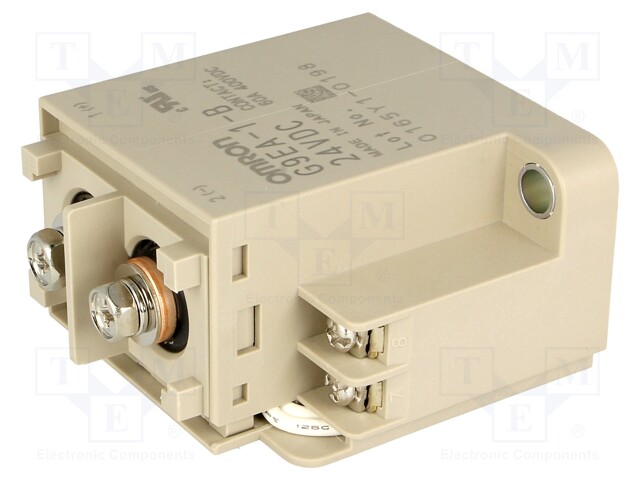

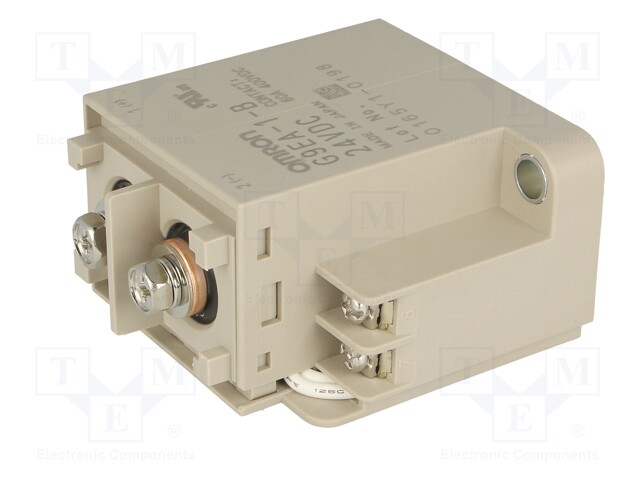

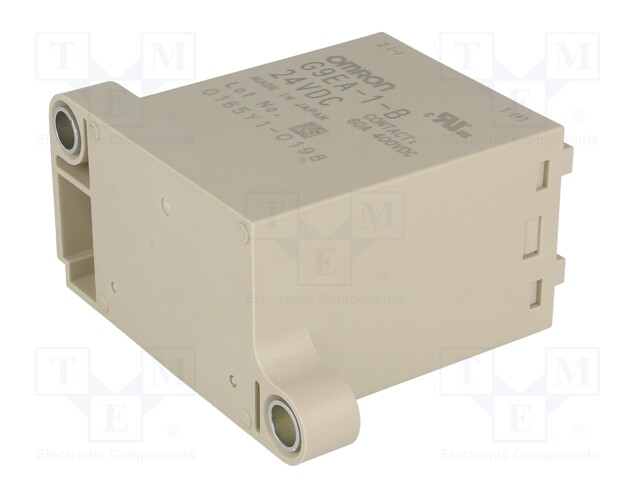

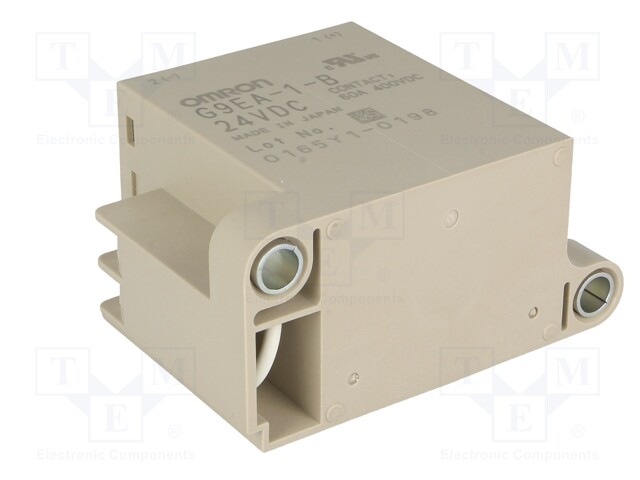

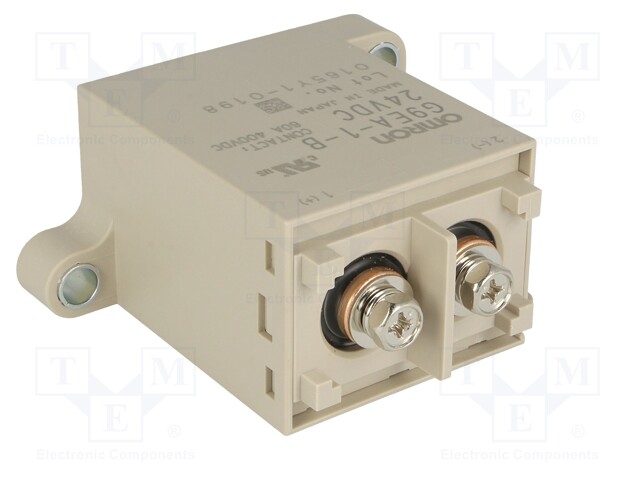

Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 100A
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
G9EA-1-B 24VDC
Tootja: OMRON OCB
Tootja tootekood: G9EA-1-B 24VDC
Product downloads
Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 100A
Mounting | on panel |
Operating temperature | -40...70°C |
Leads | M3.5 screws, M5 screws |
Body dimensions | 73x36x67.2mm |
Switched voltage | ≤ 400V DC |
Coil resistance | 115.2Ω |
Rated coil voltage | 24V DC |
Contacts configuration | SPST-NO |
DC contacts rating @R | 60A / 400V DC |
Contact resistance | 30mΩ |
Contact current max. | 100A |
Relay variant | power |
Type of relay | electromagnetic |
Coil power consumption | 5W |
Relay series | G9EA |
Operate time | 50ms |
Release time | 30ms |
Coil current | 208mA |
