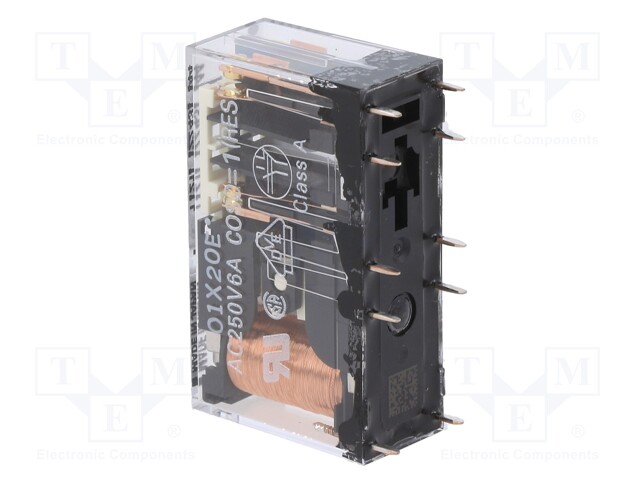

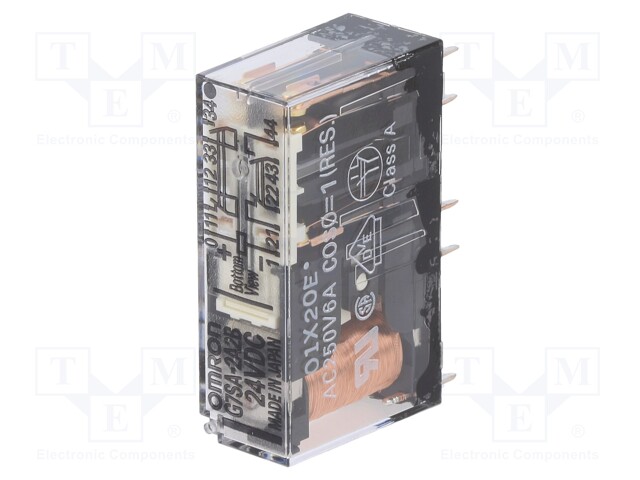

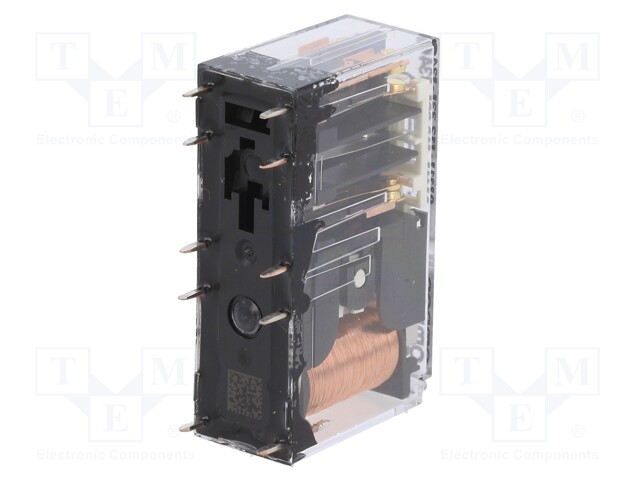

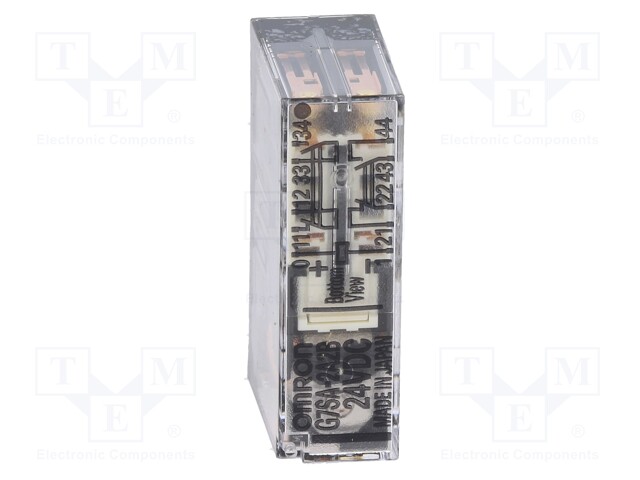

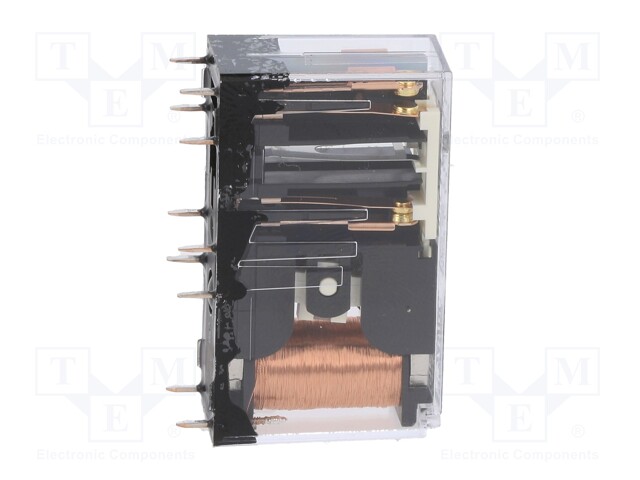

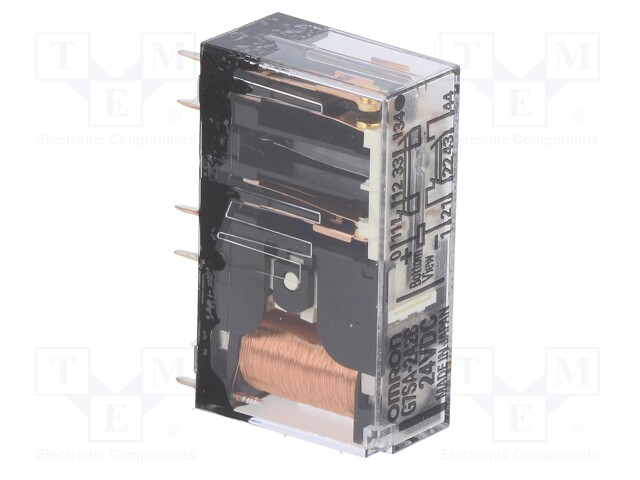

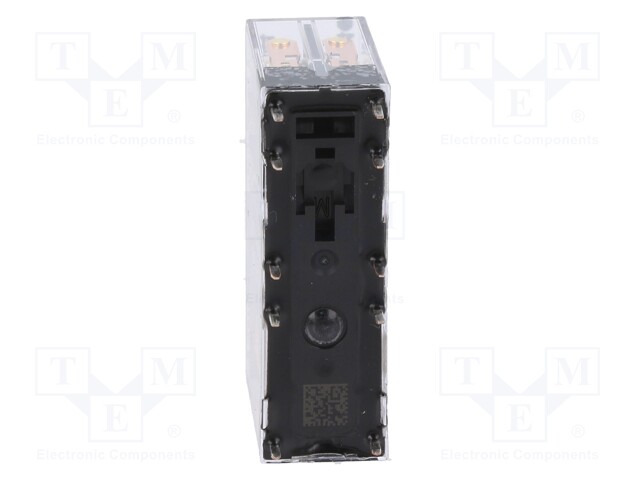

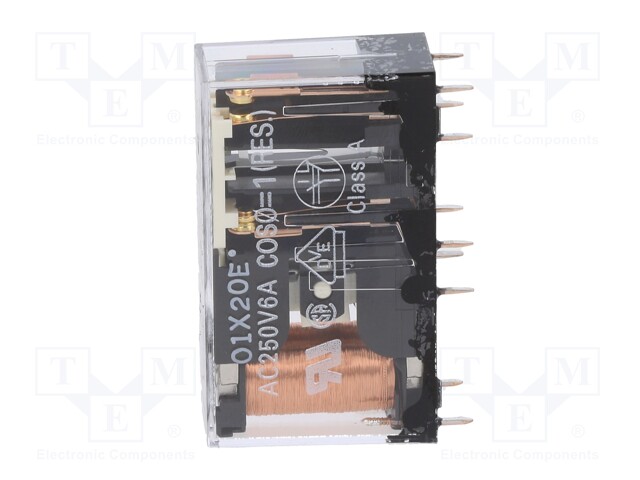

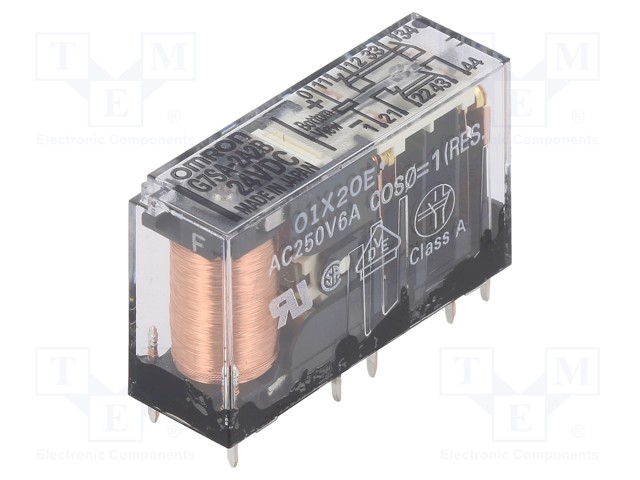

Relay: electromagnetic; SPST-NO x2 + SPST-NC x2; Ucoil: 24VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: G7SA-2A2B 24VDC
    Tootja: OMRON
    Tootja tootekood: G7SA-2A2B 24VDC
    • Mounting
    • Mounting
    • Operating temperature
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Relay series
    • Coil current

    58,32 € 58,32 € (KM-TA) 58.32 EUR

    58,32 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO x2 + SPST-NC x2; Ucoil: 24VDC

    Mounting PCB, socket
    Operating temperature -40...85°C
    Terminal pitch 5.08mm

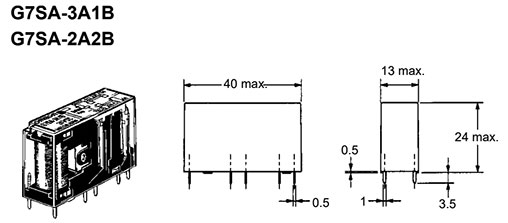

    Body dimensions 40x13x24mm
    Switched voltage ≤ 125V DC, ≤ 250V AC
    Coil resistance 1.6kΩ
    Rated coil voltage 24V DC
    Contacts configuration SPST-NO x2 + SPST-NC x2
    DC contacts rating @R 6A / 30V DC
    Contact resistance 100MΩ
    AC contacts rating @R 6A / 250V AC
    Contact current max. 6A
    Relay variant safety
    Type of relay electromagnetic
    Relay series G7SA-10
    Coil current 15mA
