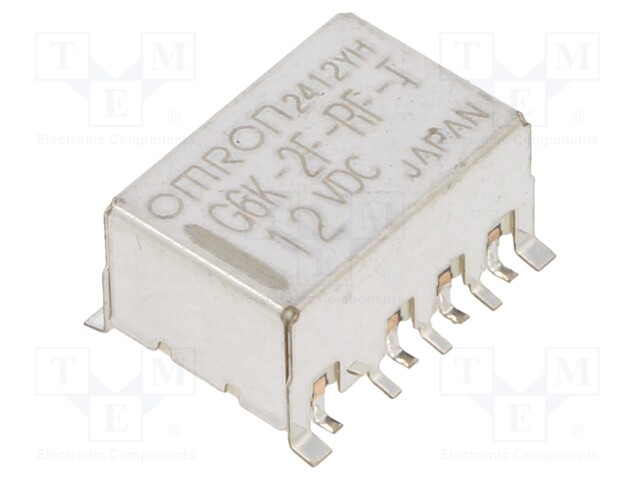

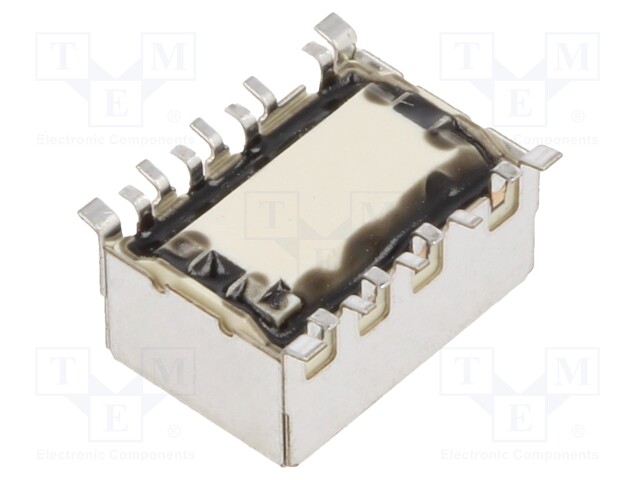

Relay: electromagnetic; DPDT; Ucoil: 12VDC; 0.3A/125VAC; 1A/30VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: G6K-2F-RF-T DC12
    Tootja: OMRON OCB
    Tootja tootekood: G6K-2F-RF-T DC12
    • Mounting
    • Operating temperature
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Relay series
    • Operate time
    • Release time
    • Coil current

    23,23 € 23,23 € (KM-TA) 23.23 EUR

    23,23 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; DPDT; Ucoil: 12VDC; 0.3A/125VAC; 1A/30VDC

    Mounting SMD
    Operating temperature -40...70°C
    Terminal pitch 3.2mm
    Body dimensions 10x6.5x5.2mm
    Switched voltage ≤ 60V DC, ≤ 125V AC
    Coil resistance 1.315kΩ
    Rated coil voltage 12V DC
    Contacts configuration DPDT
    DC contacts rating @R 1A / 30V DC
    Contact resistance 100MΩ
    AC contacts rating @R 300mA / 125V AC
    Contact current max. 1A
    Relay variant subminiature
    Type of relay electromagnetic
    Coil power consumption 100mW
    Relay series G6K
    Operate time 3ms
    Release time 3ms
    Coil current 9.1mA
