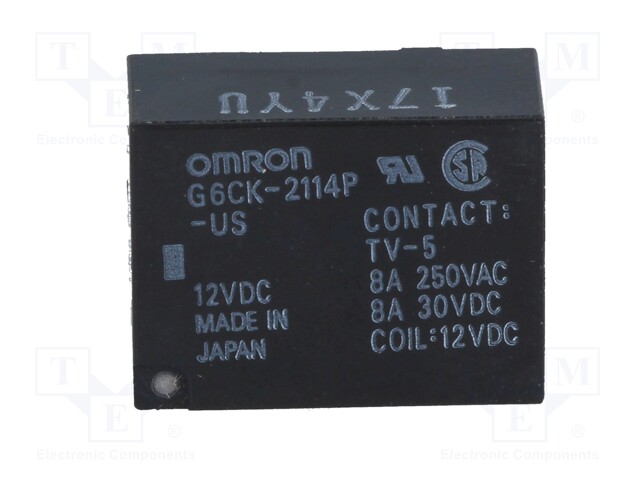

Relay: electromagnetic; SPST-NO + SPST-NC; Ucoil: 12VDC; 8A/30VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: G6CK-2114P-US 12VDC
    Tootja: OMRON OCB
    Tootja tootekood: G6CK-2114P-US 12VDC
    • Mounting
    • Mounting
    • Operating temperature
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Enclosure description
    • Contact current max.
    • Relay variant
    • Relay variant
    • Type of relay
    • Relay series
    • Operate time
    • Release time
    • Coil current

    14,54 € 14,54 € (KM-TA) 14.540000000000001 EUR

    14,54 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO + SPST-NC; Ucoil: 12VDC; 8A/30VDC

    Mounting PCB, socket
    Operating temperature -25...70°C
    Terminal pitch 7.62mm
    Body dimensions 20x15x10mm
    Switched voltage ≤ 125V DC, ≤ 380V AC
    Coil resistance 514Ω
    Rated coil voltage 12V DC
    Contacts configuration SPST-NO + SPST-NC
    DC contacts rating @R 8A / 30V DC
    Contact resistance 30mΩ
    AC contacts rating @R 8A / 250V AC
    Enclosure description hermetic seal
    Contact current max. 8A
    Relay variant bistable, miniature
    Type of relay electromagnetic
    Relay series G6C
    Operate time 10ms
    Release time 10ms
    Coil current 23.3mA
