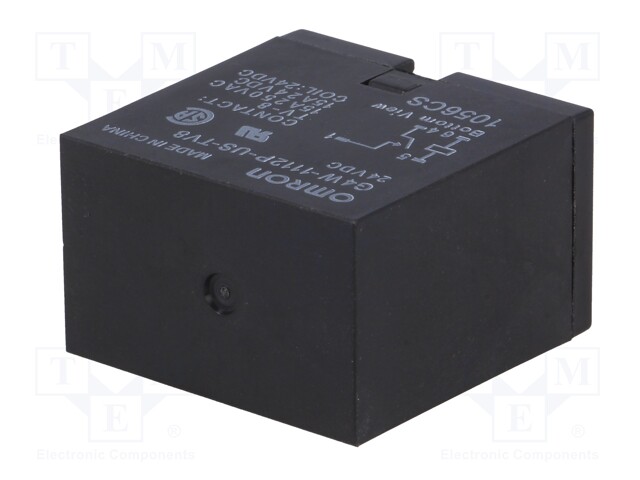

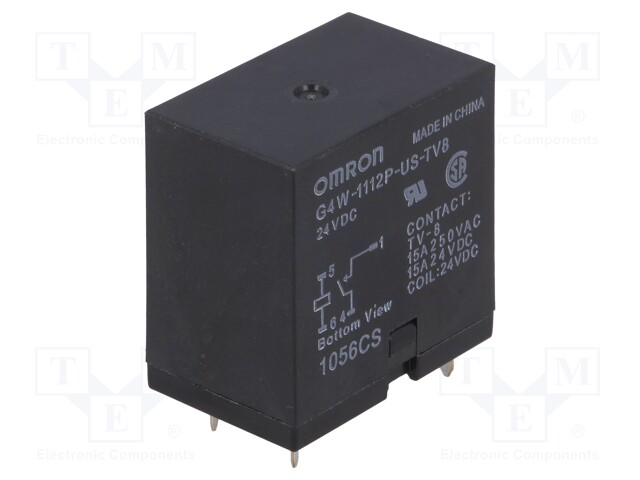

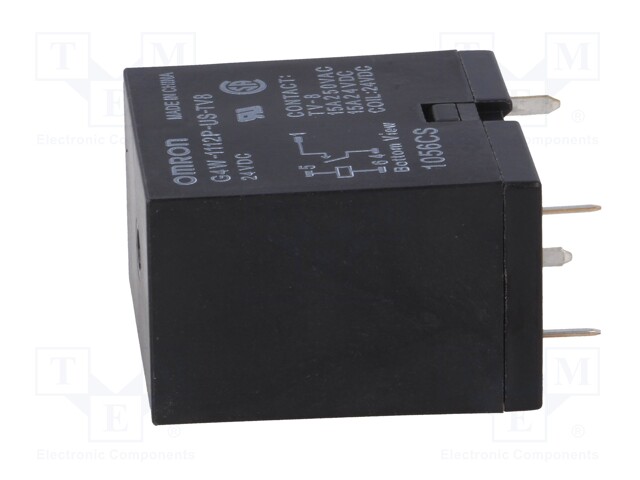

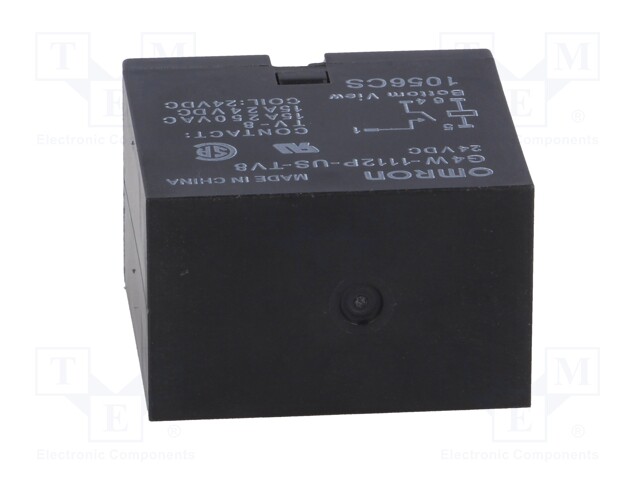

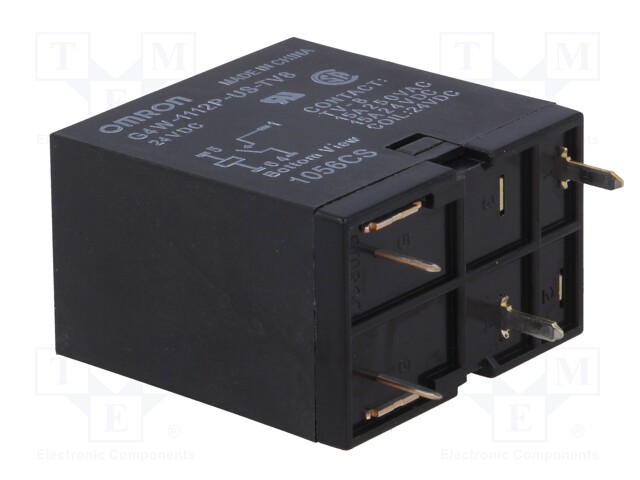

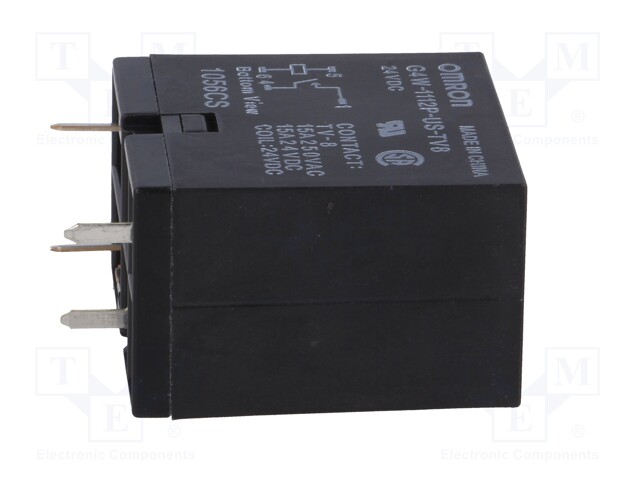

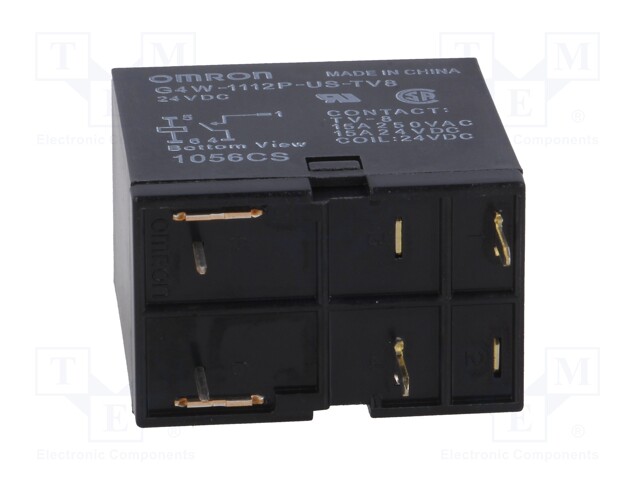

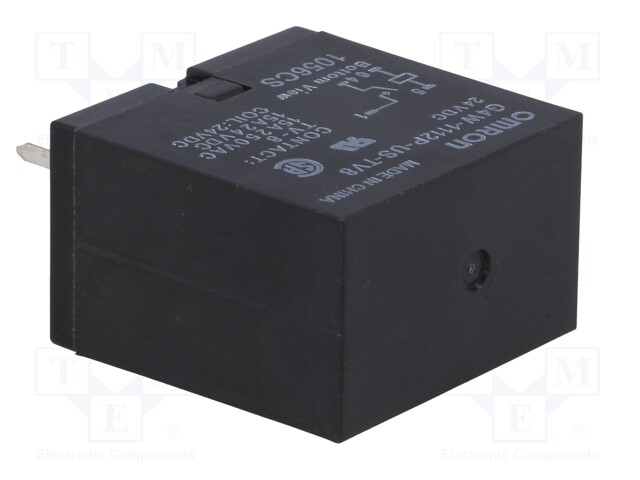

Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 15A
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
G4W-1112P-US-TV8 24VDC
Tootja: OMRON OCB
Tootja tootekood: G4W-1112P-US-TV8 24VDC
Product downloads
Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 15A
Mounting | PCB |
Operating temperature | -25...55°C |
Leads | for PCB |
Body dimensions | 30.5x19.5x30.5mm |
Switched voltage | ≤ 125V DC, ≤ 250V AC |
Coil resistance | 720Ω |
Rated coil voltage | 24V DC |
Contacts configuration | SPST-NO |
DC contacts rating @R | 15A / 24V DC |
Contact resistance | 30mΩ |
AC contacts rating @R | 15A / 250V AC |
Contact current max. | 15A |
Relay variant | power |
Type of relay | electromagnetic |
Relay series | G4W |
Coil current | 33.3mA |
