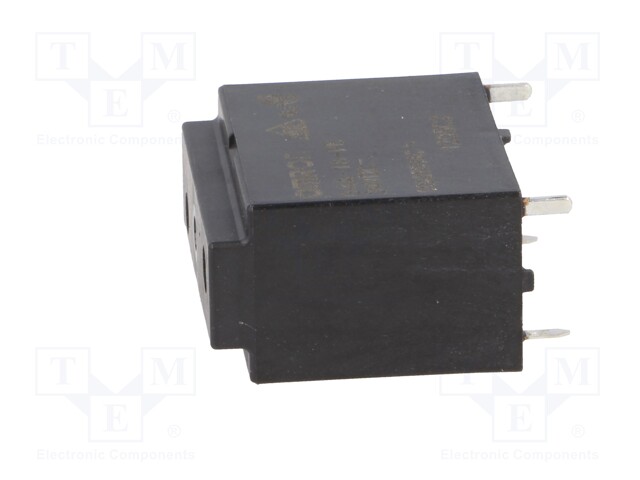

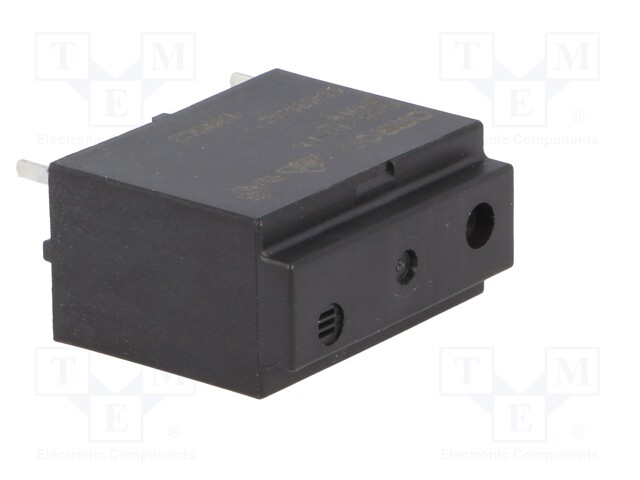

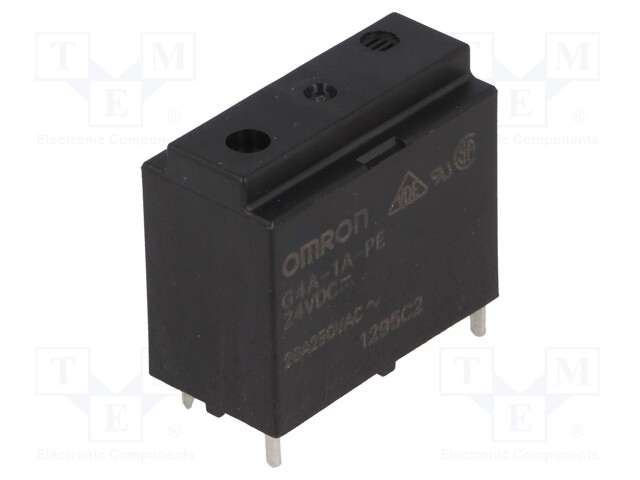

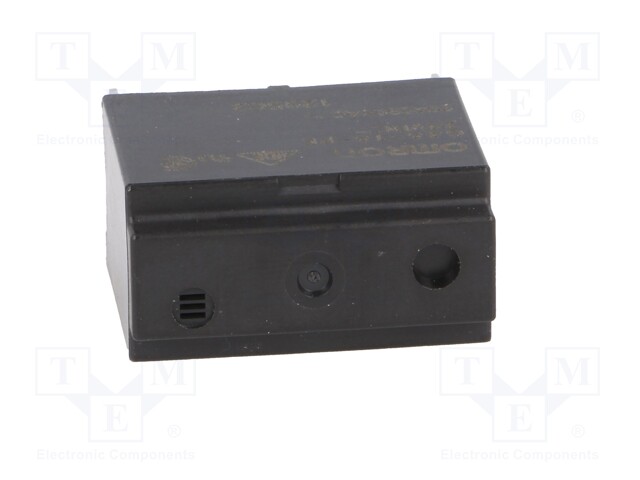

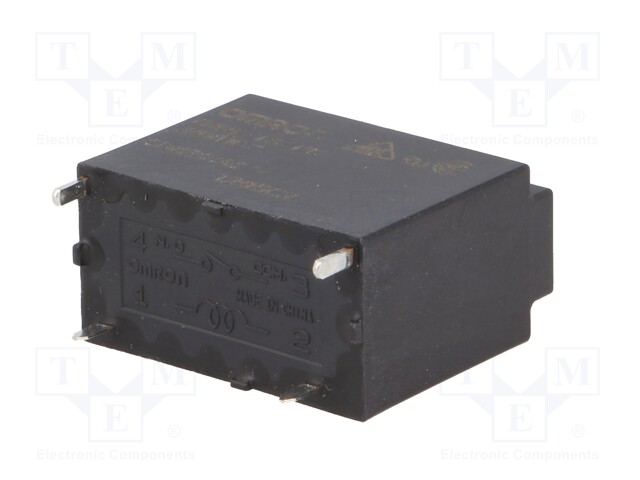

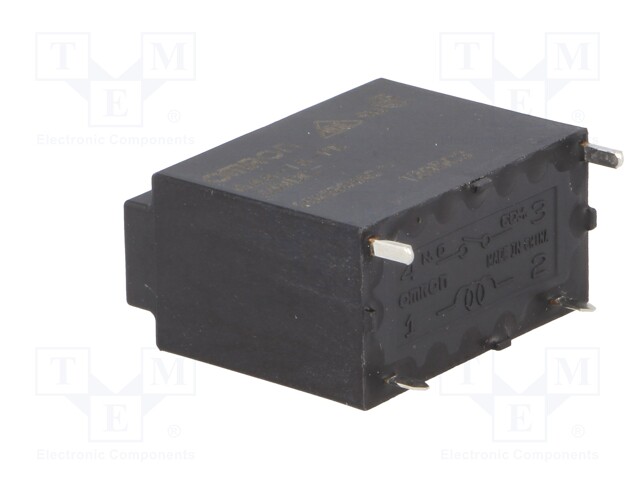

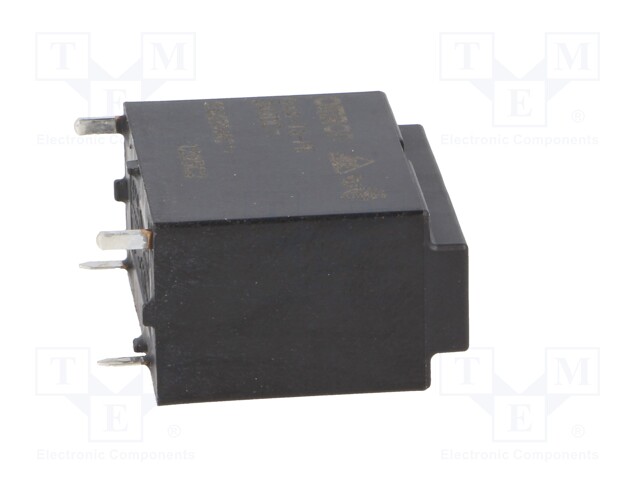

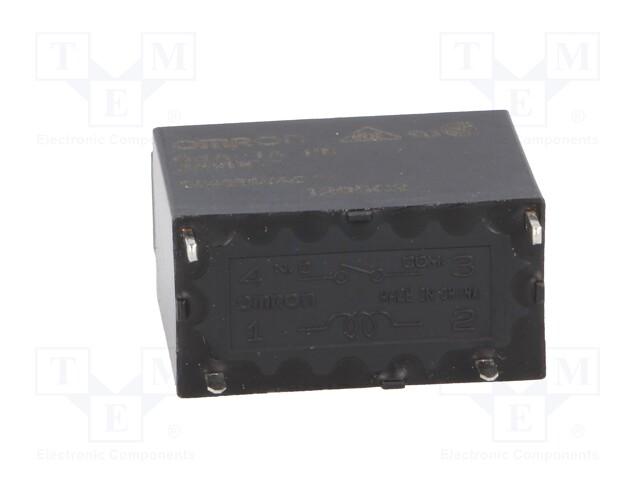

Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 20A

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: G4A-1A-PE 24VDC
    Tootja: OMRON OCB
    Tootja tootekood: G4A-1A-PE 24VDC
    • Mounting
    • Operating temperature
    • Leads
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Relay series
    • Coil current

    5,30 € 5,30 € (KM-TA) 5.3 EUR

    5,30 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 20A

    Mounting PCB
    Operating temperature -20...60°C
    Leads for PCB
    Body dimensions 30.5x16x26.8mm
    Switched voltage ≤ 30V DC, ≤ 250V AC
    Coil resistance 640Ω
    Rated coil voltage 24V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 15A / 30V DC
    Contact resistance 100MΩ
    AC contacts rating @R 20A / 250V AC
    Contact current max. 20A
    Relay variant power
    Type of relay electromagnetic
    Coil power consumption 0.9W
    Relay series G4A
    Coil current 37.5mA
